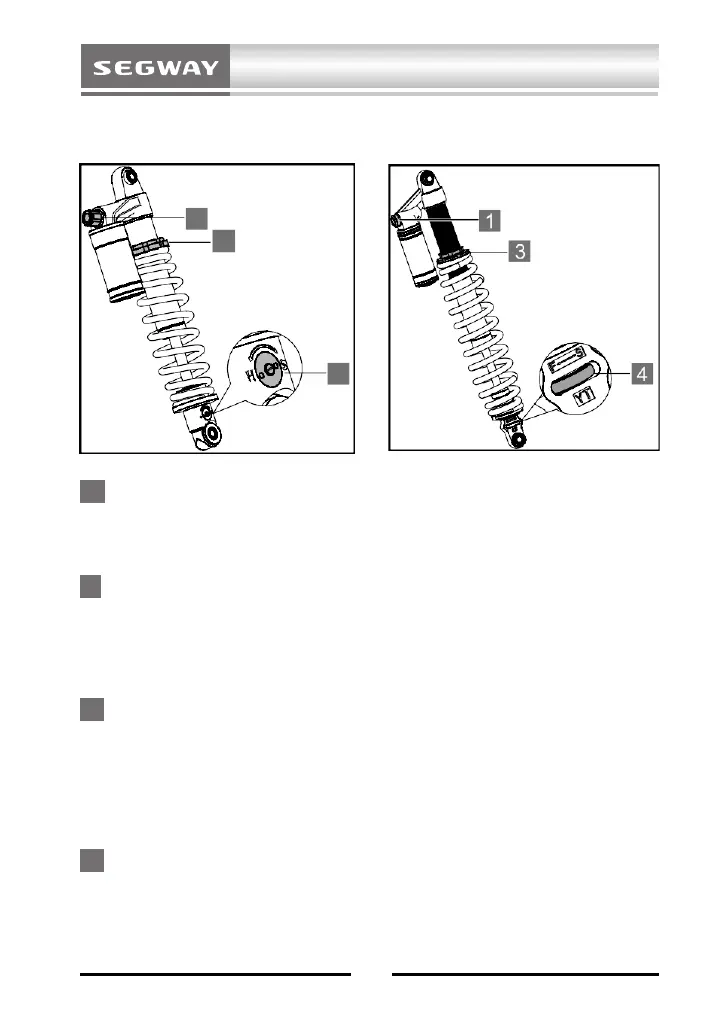

ADJUSTABLE AIR SHOCK ABSORBER
OR
1
Compression damping adjustment knob
• Turn the knob clockwise to increase compression damping, or
counterclockwise to decrease compression damping.
2
Rebound damping adjusting valve
Use flat screwdriver to adjust the valve.
• Turn in the "H" direction to increase rebound damping.
• Turn in the "S” direction to decrease rebound damping.
3
Spring preload adjuster. Adjust spring preload with a special tool.
• Adjust shock preload by rotating the adjuster nut downward
(clockwise) to increase spring preload or upward (counter-
clockwise to decrease spring preload.
• Tighten the lock nut against the adjuster nut.
4
Rebound damping adjusting knob
• Turn the knob (4) in "S” direction to increase rebound damping
or in direction "F” to decrease rebound damping.
