19
Charging by Cradle
Using the cradle, the battery pack installed in the printer can be charged.
See "14. ATTACHING CRADLE" for each part of the cradle.

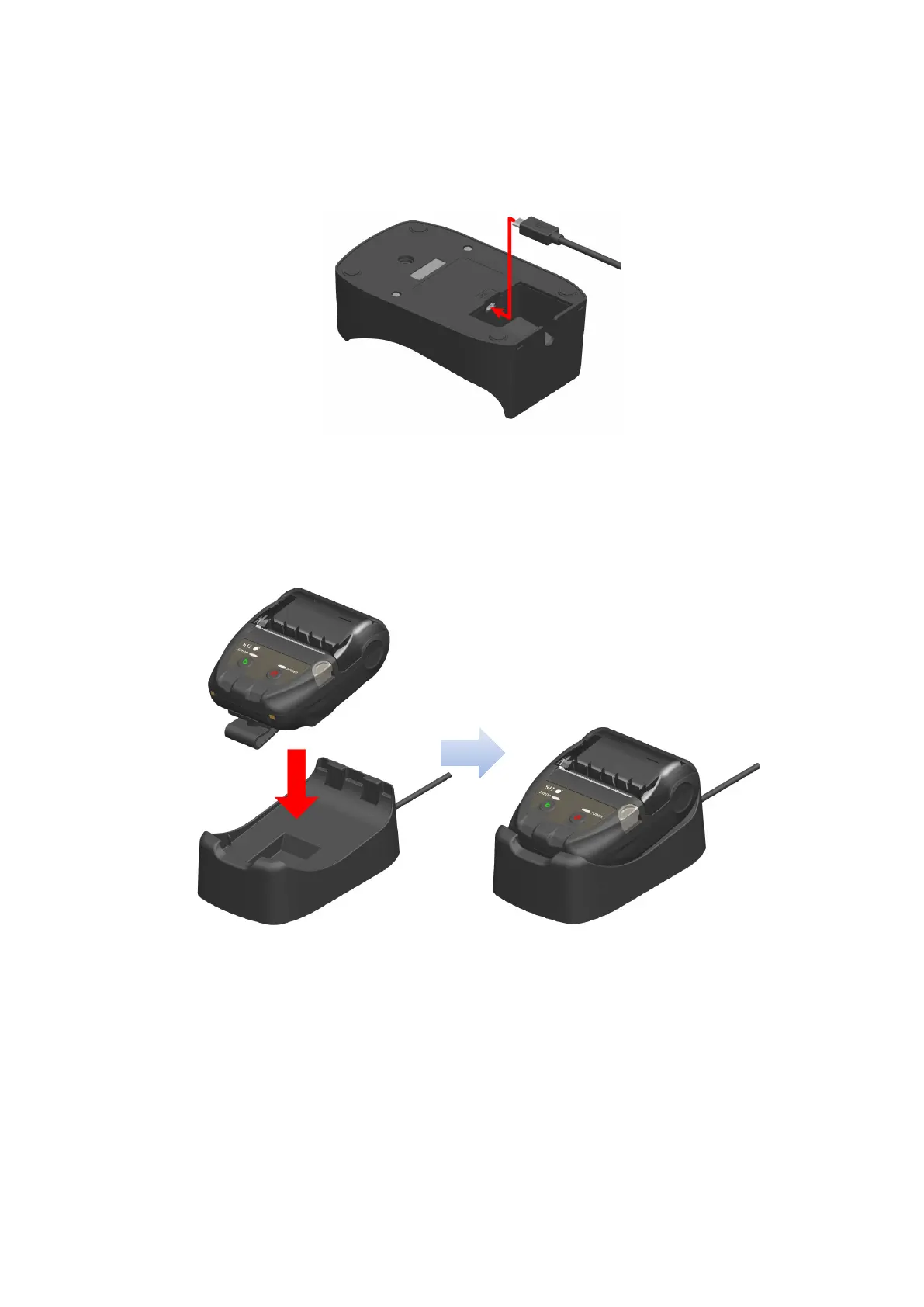

1. Connect the USB cable plug to the USB connector of the cradle as shown in Figure 8-2.
Figure 8-2 Cradle and USB Cable Connection
2.
Connect the other USB cable plug to the USB port of your PC or your USB battery charger.
3. Set the printer in the cradle by aligning the charging terminal of the printer with the charging
terminal of the cradle as shown in Figure 8-3.
Figure 8-3 Printer and Cradle Connection
4.
The printer is automatically turned on when the printer is off.
After the POWER LED displays the battery remaining capacity for approximate 3 seconds, the
POWER LED changes to orange, and then charging starts.
During charging, the POWER LED lights in orange.
To Next Page
