SPR0136037 Rev. 1.5
1
Structure of MSA/MSV series

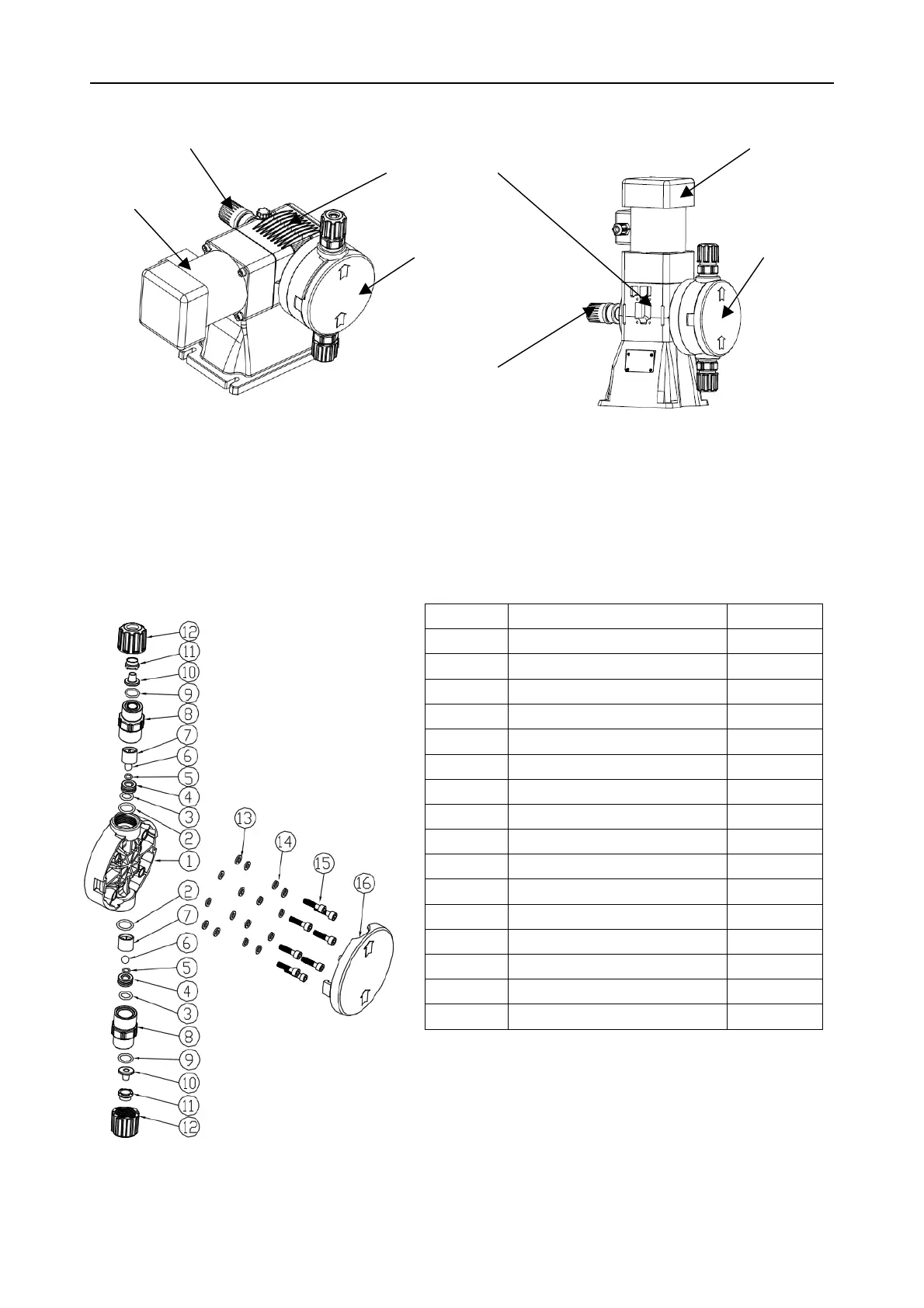

Disassembly sketch of pump head
Table 1

PVDF pump head (standard)
Number
Description
Quantity
1
Pump head
1
2
Seal D18,72X2,62
2
3
Seal 14,48X2,69
2
4
Ball seat
2
5
Seal 7,65X1,78
2
6
Ball
2
7
Ball cage
2
8
Valve body
2
9
Seal 12,37 X T 2,62
2
10
Gasket
2
11
Clamp
2
12
Connecting nut PVDF
2
13
Gasket for M6 screw
8
14
Spring pad for M6 screw
8
15
M6x25 Hexagon screw
8
16
Cover for pump head
1
Adjustment knob of stroke length
Mechanism
Pump head
Motor
Motor
Pump head
