Sel SEL-487B - Expanded Front-Panel Diagram

SEL-487B Data Sheet Schweitzer Engineering Laboratories, Inc.
22

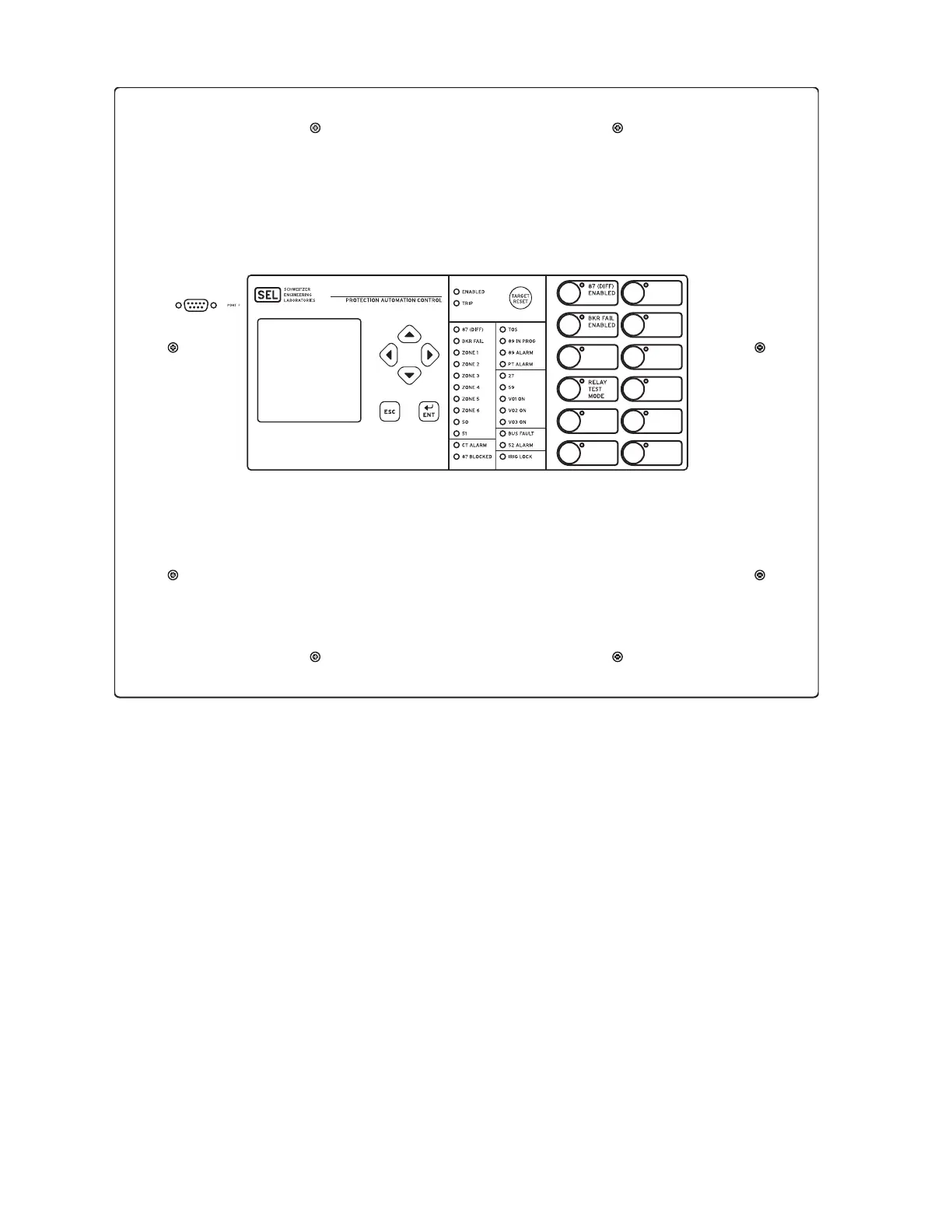

Figure 33 Expanded Front-Panel Diagram, 9U Chassis Size, Panel-Mount Option, Showing Extended Front-Panel HMI
With LCD, Navigation Pushbuttons, 24 Tricolor LEDs, Reset, and 12 Programmable Pushbuttons
i4190b
SEL–487B
