SEL-487B Data Sheet Schweitzer Engineering Laboratories, Inc.
4
=>>ZONE <Enter>
BUS PROTECTION
Rinadel Station
Terminals in Protection Zone 1
HELIUM SILICON
Bus-Zones in Protection Zone 1
NORTH
Terminals in Protection Zone 2
BORON ARGON LITHIUM
Bus-Zones in Protection Zone 2
EAST
Terminals in Protection Zone 3
SILICON KRYPTON
Bus-Zones in Protection Zone 3
SOUTH
Terminals in Protection Zone 4
SODIUM NEON
Bus-Zones in Protection Zone 4
WEST
=>>
Figure 3 Result of ZONE Command Indicating the Protection Zone Configuration According to Disconnect Switch Positions

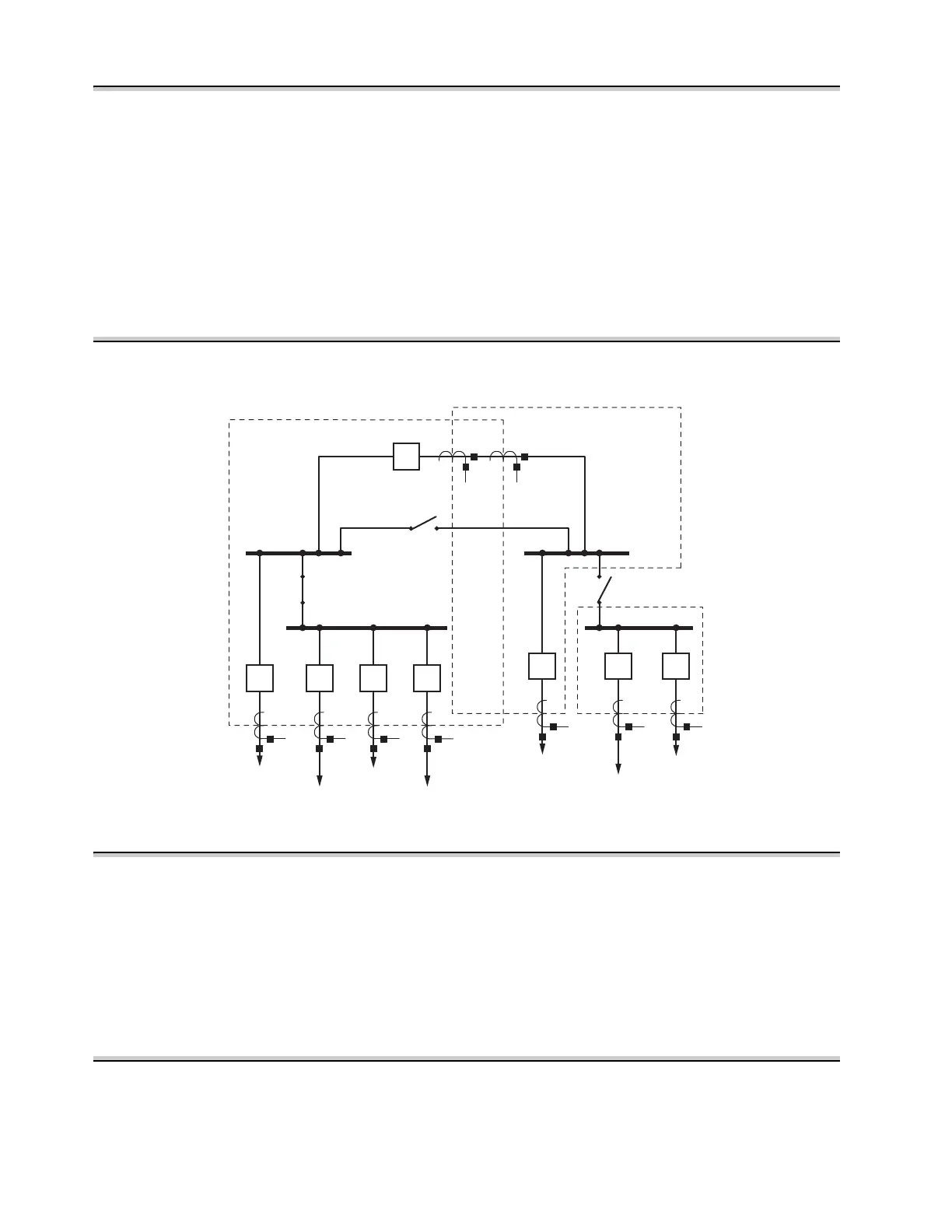

Figure 4 Bus Arrangement With Disconnect DS2 Closed; the New Zone 1 That Includes Bus-Zones North and East
=>>ZONE <Enter>
BUS PROTECTION
Rinadel Station
Terminals in Protection Zone 1
HELIUM SILICON BORON ARGON LITHIUM
Bus-Zones in Protection Zone 1
NORTH EAST
Terminals in Protection Zone 3
SILICON KRYPTON
Bus-Zones in Protection Zone 3
SOUTH
Terminals in Protection Zone 4
SODIUM NEON
Bus-Zones in Protection Zone 4
WEST
=>>
Figure 5 Result of ZONE Command, Showing the Protection Zone Configuration After Zone 1 Merges With Zone 2
52
52
52
5252
52
52
52
Silicon
Zone 4
Zone 1
Zone 3
Helium
Boron
Argon
Lithium
Krypton
Sodium
Neon
North
East West
South
DS1
DS2
DS3
