Selden 22 - Page 17

17
4.
Deck tting 443-206-10

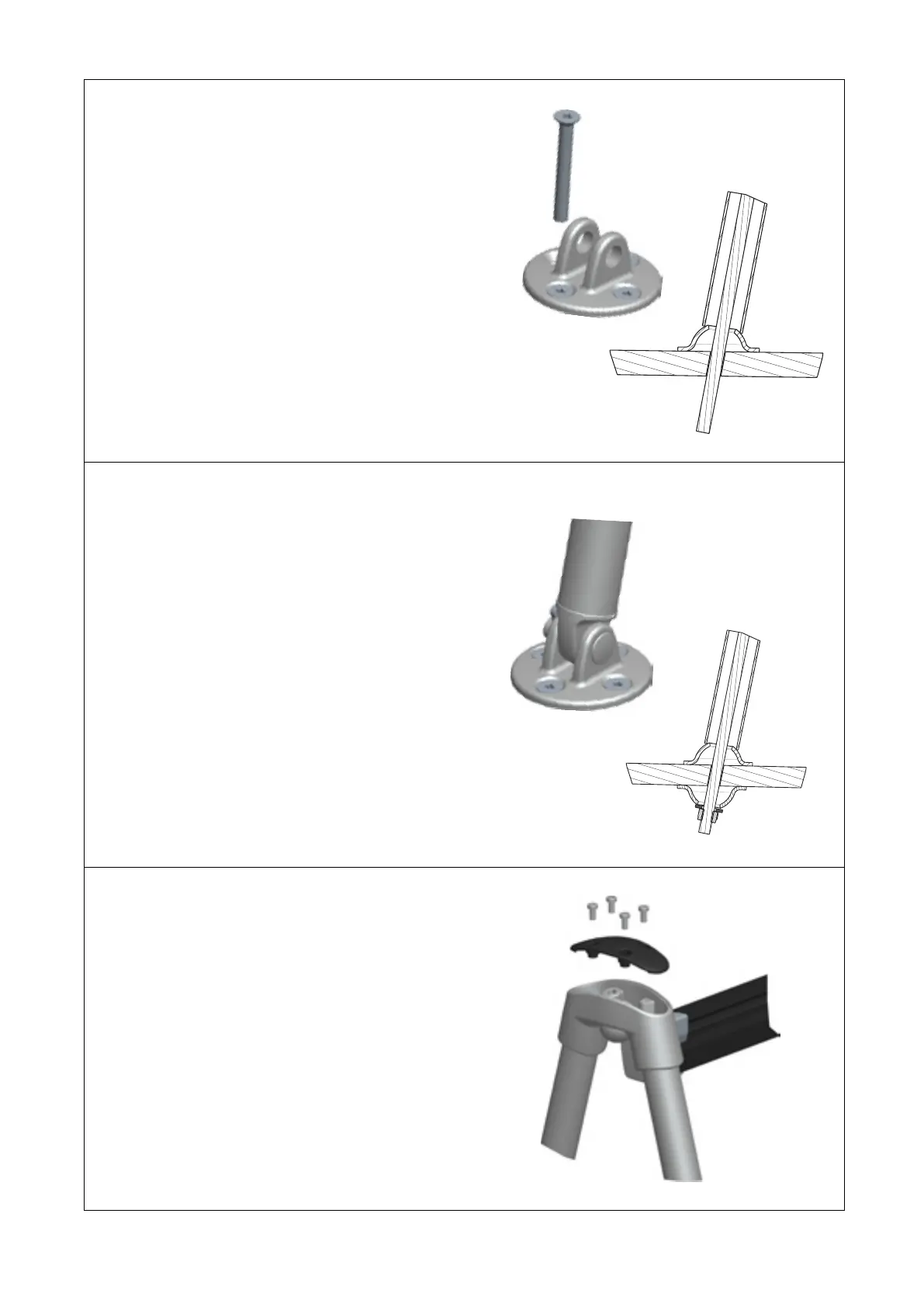

Install the deck ttings at the marked positions on
deck. Make sure the deck tting 443-206 is at the
correct angle to t the side console when assembled
to the track. Use 4xM6 countersunk screws for each
tting. Apply marine sealant.
Foot kit 442-208-10
With the system in correct position and the side
consoles at desired angle, aim with the legs on deck
and mark the position.
Drill holes through deck at your markings. Pay extra
attention to the angle of the threaded bar, align hole
after this angle, see illustration.
5.
Place system in position on deck.
The screws in the joint brackets and the nuts
on the legs might need to be eased to adjust
components into place.
Deck tting 443-206-10
Assemble deck ttings with clevis pin and split
pin and tighten all screws on the system
Foot kit 442-208-10
Place deck tting 442-208 under every leg on deck.
Apply marine sealant.
From inside the boat place the foot 442-208, washer
and nut on all threaded bars and screw tight.
Saw o redundant thread bar.
Tighten all screws in the system.
6.
Fit the covers with four screws.
Installation completed!
Deck tting
Foot kit
Deck tting
Foot kit
