19

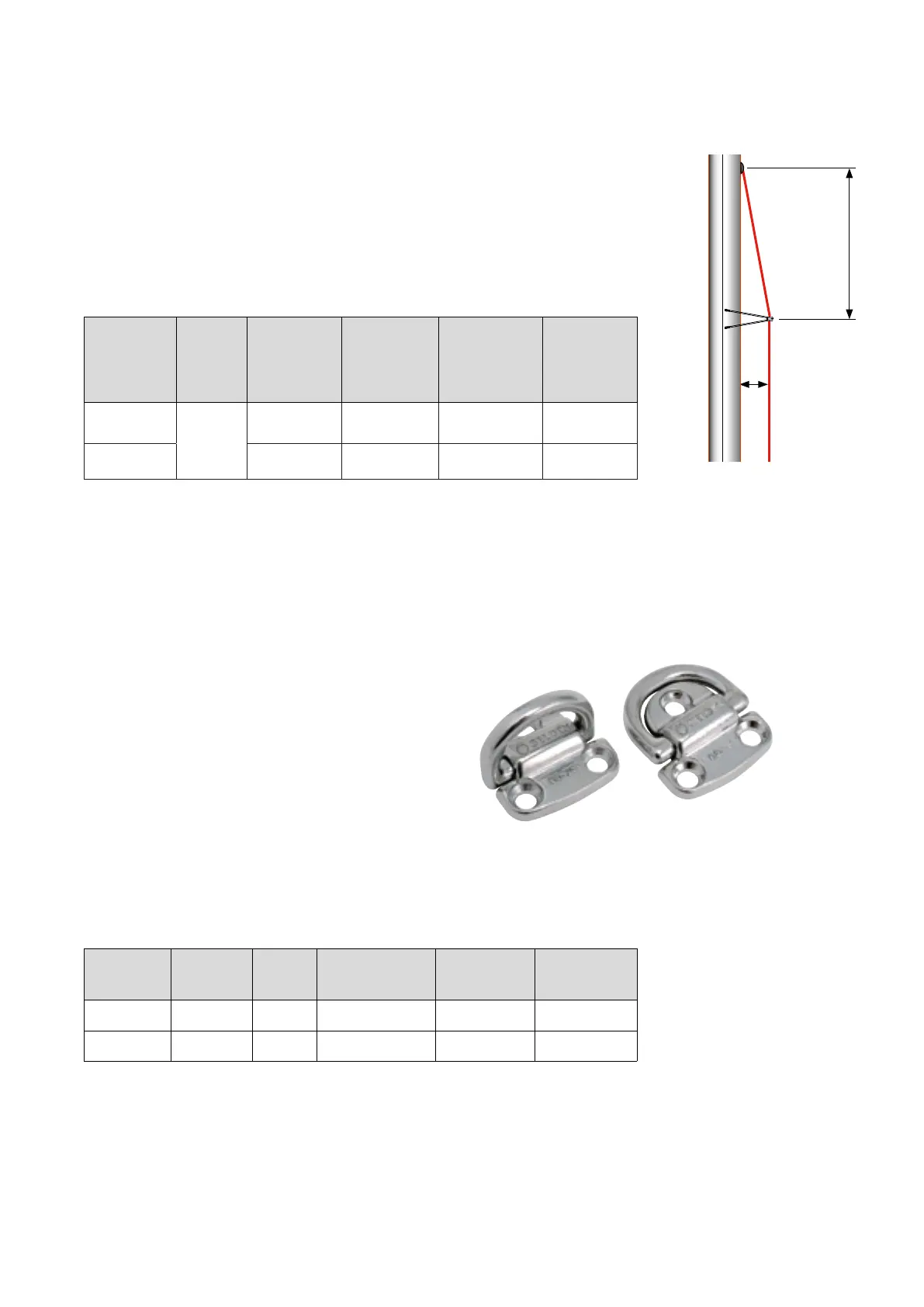

FOLDABLE PAD EYES
Stainless AISI 316
Art. No.
Dimension
(mm)
Weight
(g)
Safe
working load (kg)
Breaking
load
(kg)
Bolts
508-750-01R Ø6/42x42 74 1100 2200 3xM6
508-760-01R Ø8/54x54 154 2200 4400 3xM8
7. Options
7.1 Sheet crane and exit box
For boats tted with vertical pole storage (VPS) and for boats where a
“up the mast” routing of the sheet would need a relocation of the deck
and steaming light. The sheet crane creates the separation you need
between the mast and sheet to facilitate VPS, navigation and deck lights.
7.2 Foldable Pad eyes
Used for mounting a turning block at the bow.
H
L
Mast section Max RM at
30°, kNm
Sheet crane
Art.No.
Length, mm (L)
Sheet exit box,
Art. No.
Min distance
between sheet
box and crane,
mm (H)
Max line size,
ø mm
C227-C304
F228-F305
170
508-094-01
L=200
505-016-01 1200 12
C264-C365
F265-F370
508-093-01
L=275
505-015-01 1500 14
SHEET CRANE AND EXIT BOX
