ATSEL HMI User Manual

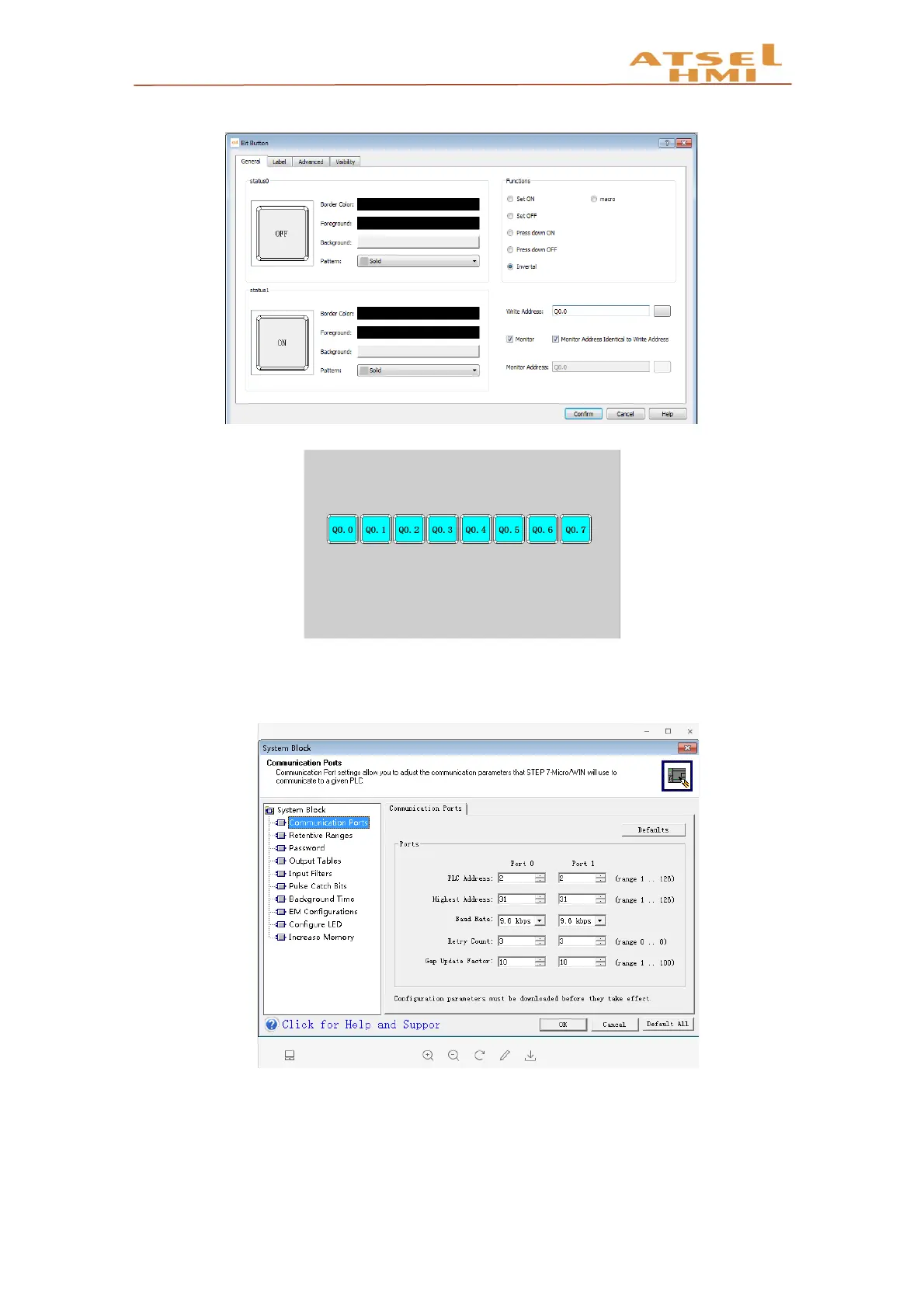

4. The system block parameter setting interface of S7-200 program software is
shown as the following diagram
5. Connect the HMI to PLC through 485 communication cable and power them
together, then download the corresponding project to HMI. When click the components
on the screen, the corresponding PLC output points will be lighten.
