Animation design

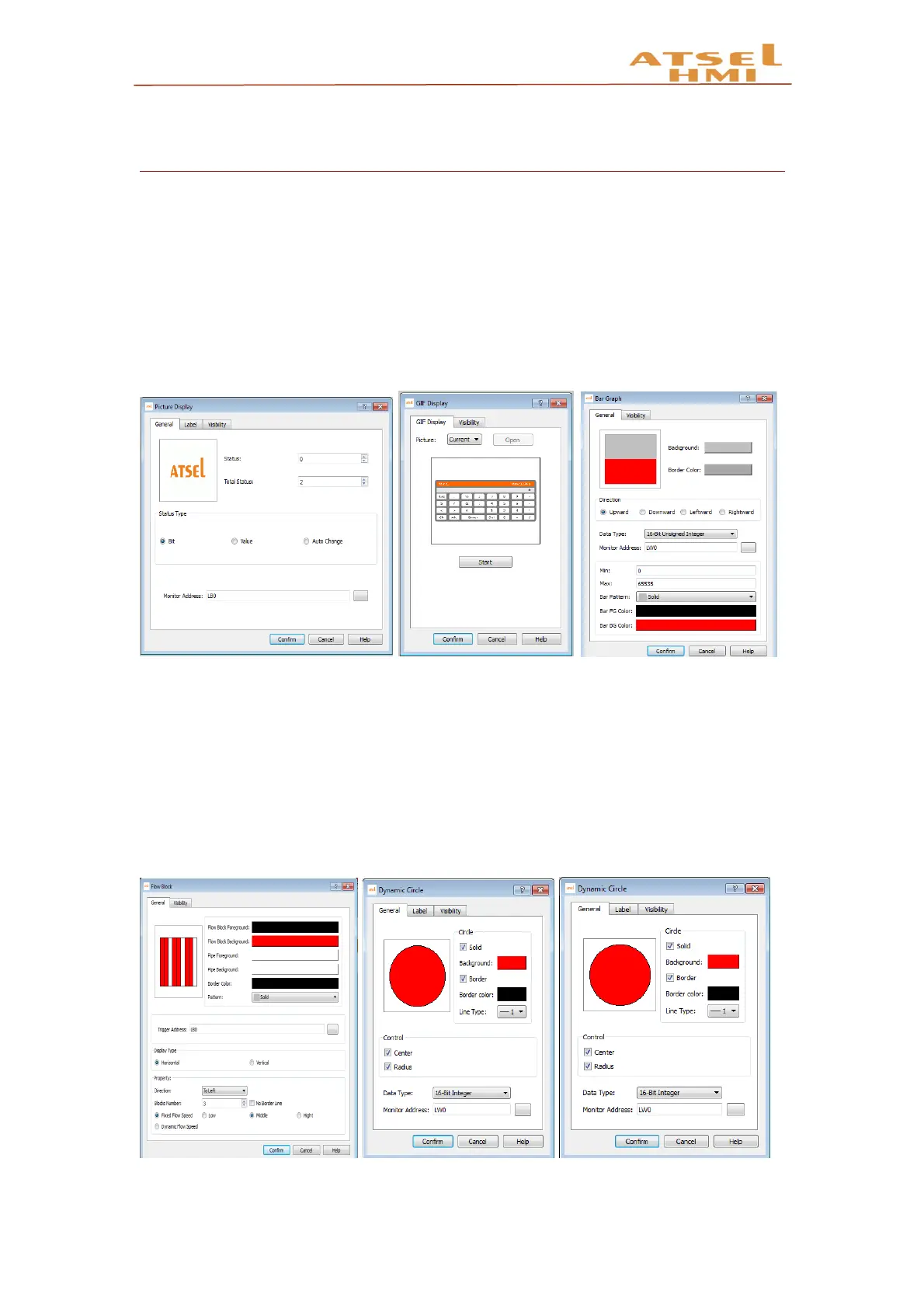

Function introduction
Picture Display function: To achieve the dynamic display of static pictures through
other ways, such as address control, time setting.
GIF picture: To set dynamic gif pictures. You can set the animation in the library, or
user-defined GIF files.
Bar Graph: The value of the corresponding address is displayed by the bar graph.
Flow Block: Flow Block is used to simulate in animated pictures the liquid flow
status in pipeline. Whether a flow block is flowing is determined by the status of the
trigger, when the trigger is 1, the flow block is flowing, when the trigger is 0, the flow block
is static. The flowing speed is specified by user.
Dynamic Rectangle and Dynamic Circle: Their function is similar which changes
the position or size of graph according to the value of monitoring address, thus to show
real-time change of the monitor address on a dynamic basis.
