ATSEL HMI User Manual
Connection

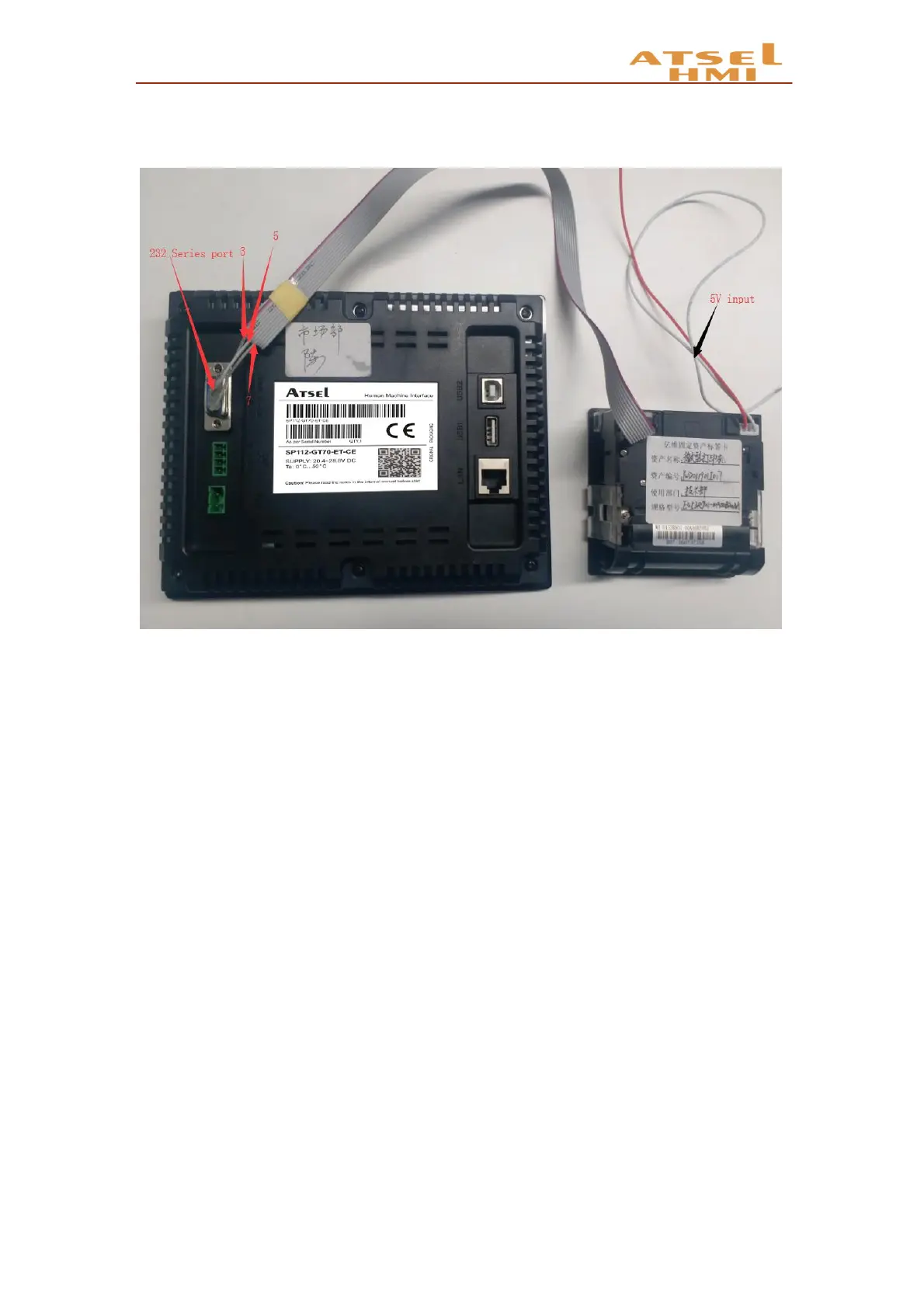

The series Port need to be wired by ourselves
HMI DB9 Pin2 to Printer 3
HMI DB9 Pin3 to Printer 5
HMI DB9 Pin5 to Printer 7
Cautions, the power cable input should be 5V, don
’t wire the wrong direction.
63
Table of Contents
Main Page
Table of Contents
2
Installation
3
Communication Protocol
5
Address Setting
7
Animation Design
15
Recipe
17
Data Transmission
19
Alarm
20
Multi Language
24
History Data Record
26
User Encryption
31
Update Program by U Flash
36
QR Code
37
One HMI Multi Plcs
39
Time Setting
42
Installment
44
System Configuration
51
Internal Register of System
52
Printer Settings
56
