Selecta PH-3005 - Overview; Overview and Installation; Terms Explanation





3 TermsExplanation
 pHSlope:Theamountofpotentialchangegeneratedbyeach1pHchange,expressedinmV/pHorby100%
TheoreticalSlope(PTS).pH
 =‐log[H],where[H]meansmolarconcentration(mol/L)ofHions.
 E0ofpH:Alsoknownas"zeropotential",usuallyreferstothepotentialvalueatpH7;
 One‐pointcalibration:Calibrationwithastandardsolution.
 Two‐pointcalibration:Calibrationwithtwostandardsolutions.
 Multi‐pointcalibration:Calibrationwithmorethantwostandardsolutions.

4 OverviewandInstallation
4.1 Overview

1 MeterBody
2 Display
3 PowerKey
4 Functionselectionkey
5 Multifunctionalelectrodeholder
6 Measurementelectrodes



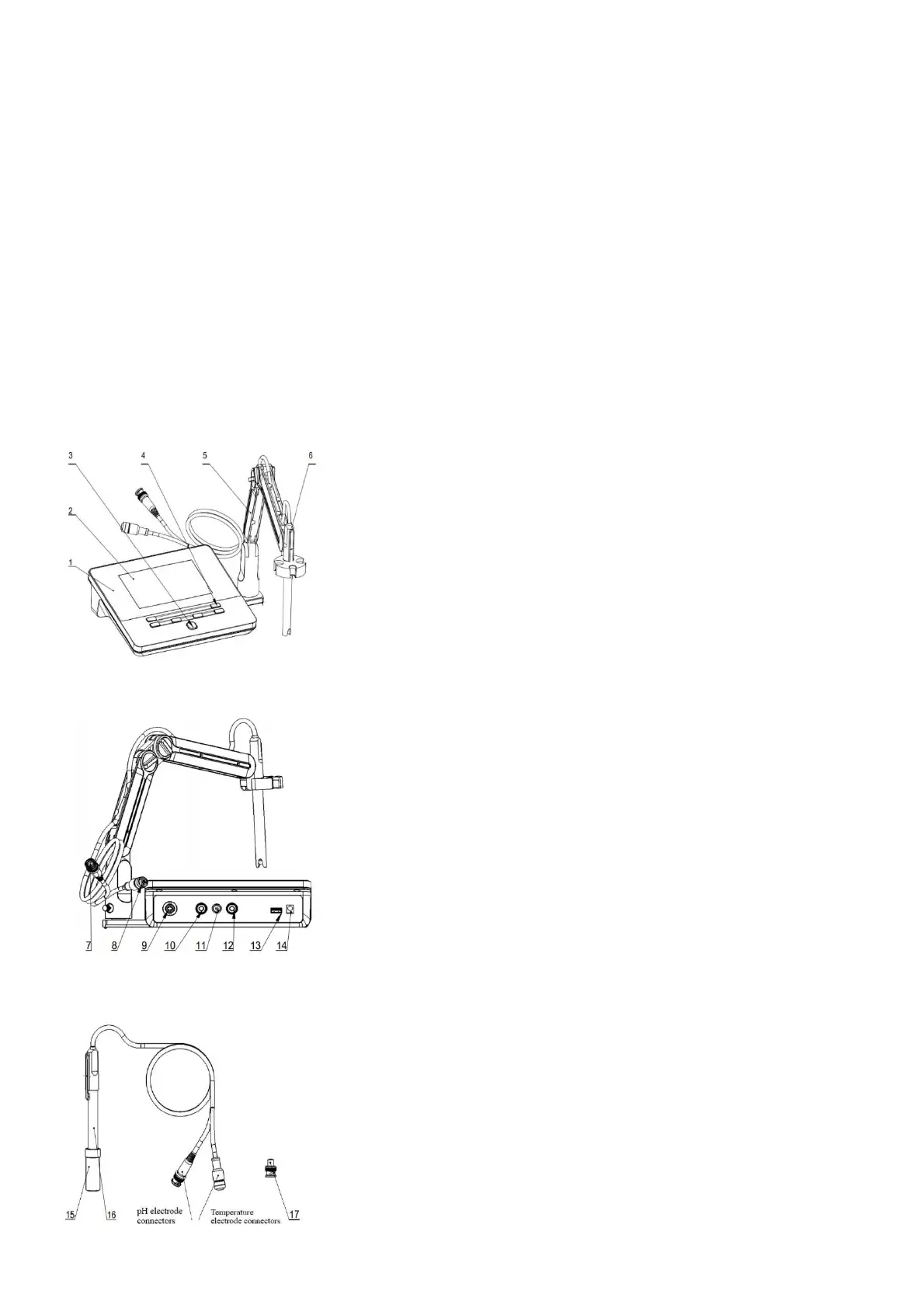

Figure4‐1Overview‐FrontView


7 MeasurementpHelectrodeplug
8 Measurementtemperatureelectrodeplug
9 Temperatureelectrodeconnectors
10 Groundterminal








Figure4‐2Overview‐BackView


11 Measurementelectrodeconnectors
12 Referenceelectrodeconnectors
13 Meterdebugport
14 DC9Vpowersocket
15 Electrodeprotectioncap
16 pHelectrodes
17Q9short‐circuitplug

Figure4‐3Electrodesandconnectors

