5
ENGLISH GERMAN FRENCH SPANISH ITALY

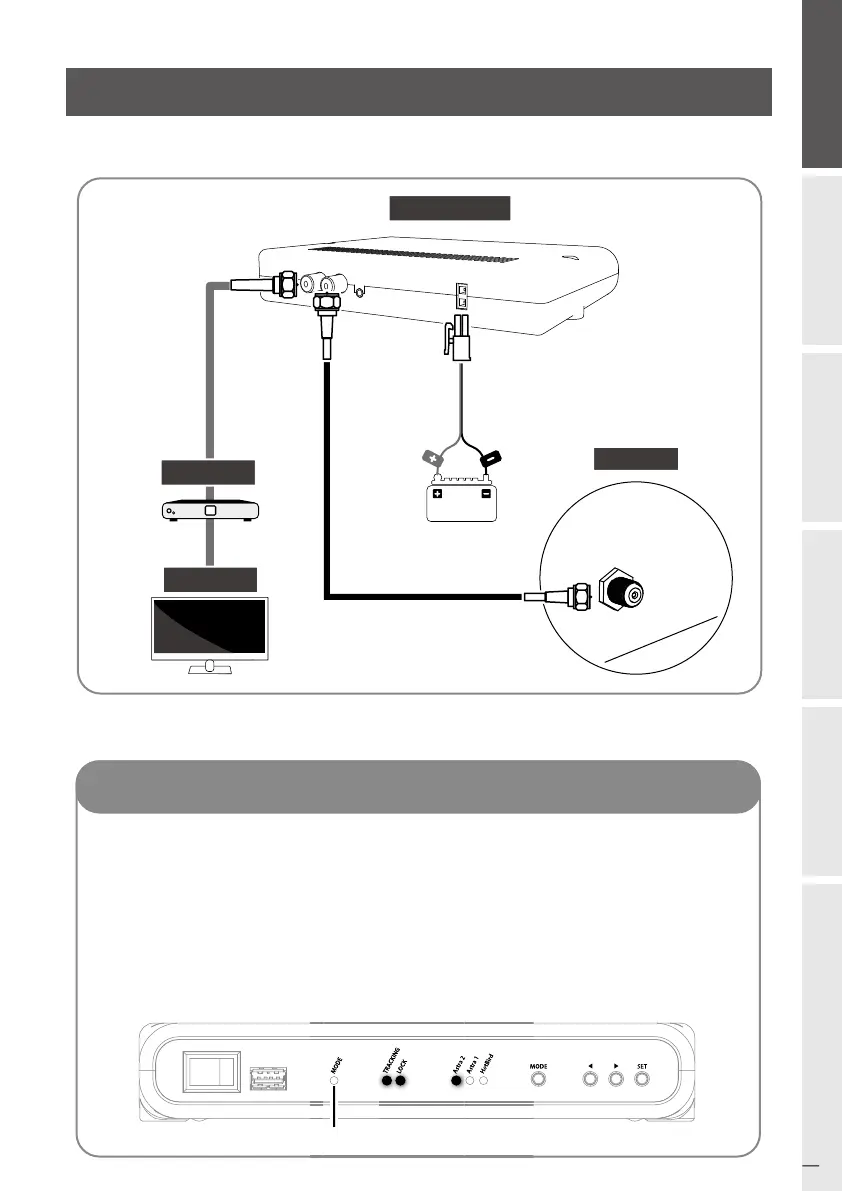

3-1. Connection diagram
3-2. Functional description
3. Operating Instruction
A. In-Motion mode (Default)
For example :
a.
b.
c.
d.
e.
f.
When the all cable connections are completed, turn on the power switch
All satellites LEDs light on while booting the system (15~30 seconds)
Default (ASTRA2) or the last status satellite is automatically selected
Tracking LED light on since the unit searches the satellite
When Lock LED becomes solid this means the satellite is found
If the other satellite is desired, move to the correct satellite and press SET to
conrm the new satellite
Mode LED is OFF if In-motion mode is selected
Power input cable
CONTROLLER
MAIN UNIT
RECEIVER
TV
Receiver cable
Controller cable
To Next Page
