SemaConnect 4 EV Series - Installation Guide; Site Selection

4
3. Parts List
Materials Included
• SemaConnect Series 4 EV Home Charger
• Allen wrench
• Mounting hardware
Tools Needed
• Stud nder
• Level
• Marker
• Drill
• Measuring tape
Materials Needed
• 3/4“ Liquid Tight Flexible Metal Conduit - Hardwired Version Only
• 3/4“ Liquid Tight Flexible Metal Conduit Connector - Hardwired Version Only
4. Installation
Site Selection
The charger should be installed in a location suitable for the 25-foot output cable to extend to the electric vehicle’s
charging port and which allows sufcient space for output cable storage in the cable hanger.
The top of the wall
mount bracket is recommended to be installed at a height of 50 inches above the nished oor (check local codes).
If installing the NEMA 14-50 plug version, ensure the charger location can accommodate a NEMA 14-50 receptacle.

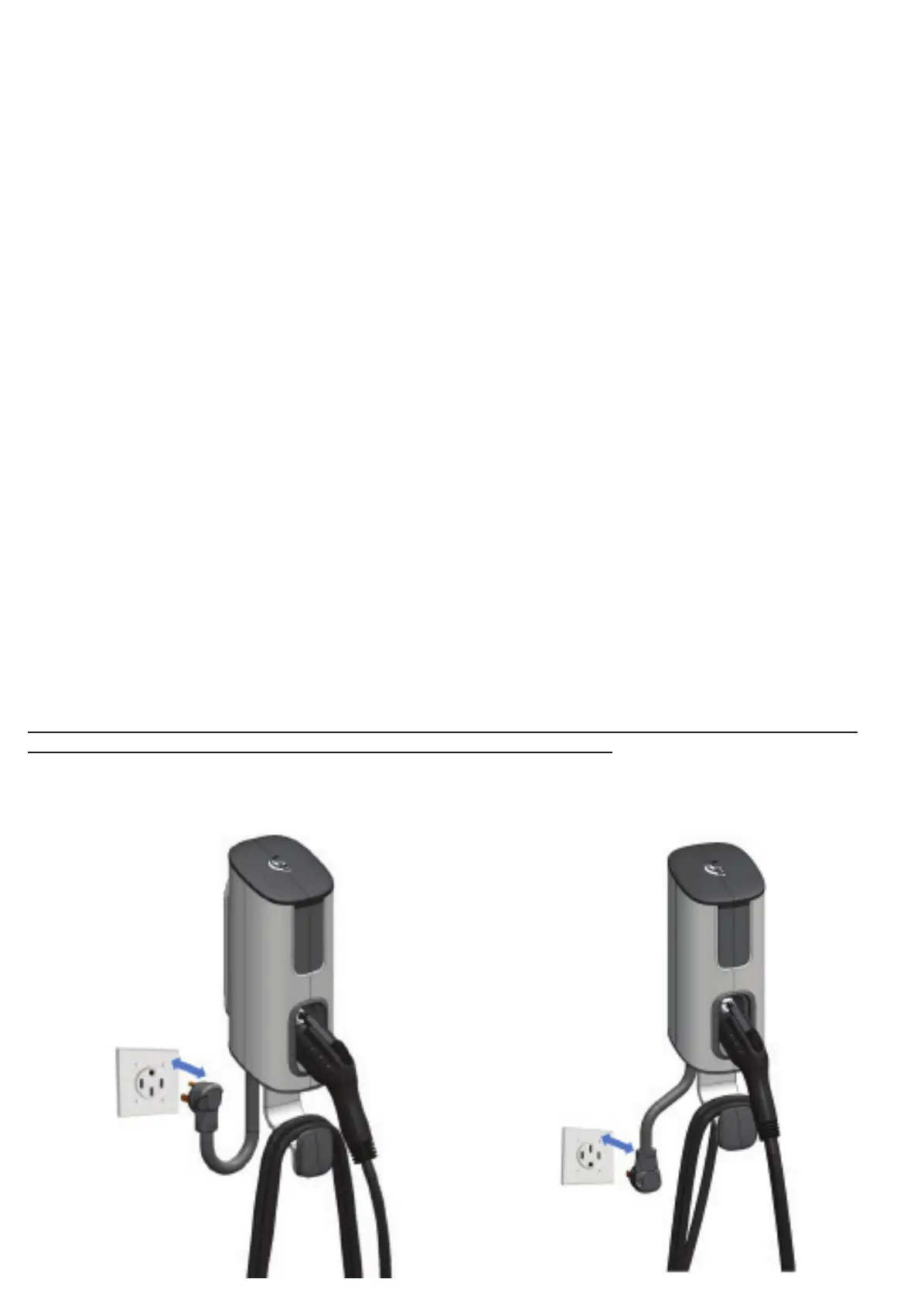

The NEMA 14-50 receptacle should be located no less than 24-26 inches from the ground. Consideration should be
made to the NEMA 14-50 receptacle orientation (ground terminal in the upward ‘12 o’clock position’ or downward
‘6 o’clock position’). The NEMA 14-50 receptacle orientation will determine the NEMA 14-50 input cord’s installation
aesthetics.
Ensure the height of the wall mount bracket and the NEMA 14-50 receptacle are coordinated so the NEMA 14-
50 plug seats into the NEMA 14-50 receptacle without cable tension or stress. If installing the hardwired version,
ensure that the selected charger location is within reach of the site rated junction box using the supplied 3 feet of
manufactured cable.
