1.4.2. Anchor Plate Installation
Site Location
Select the location for the charging station. To mount the charging station, first prepare a concrete pad
properly aligned to the parking space. The concrete pad should be positioned such that the distance
between the charging station and electric vehicle is enough to minimize likelihood of damage.
Install Anchor Plate

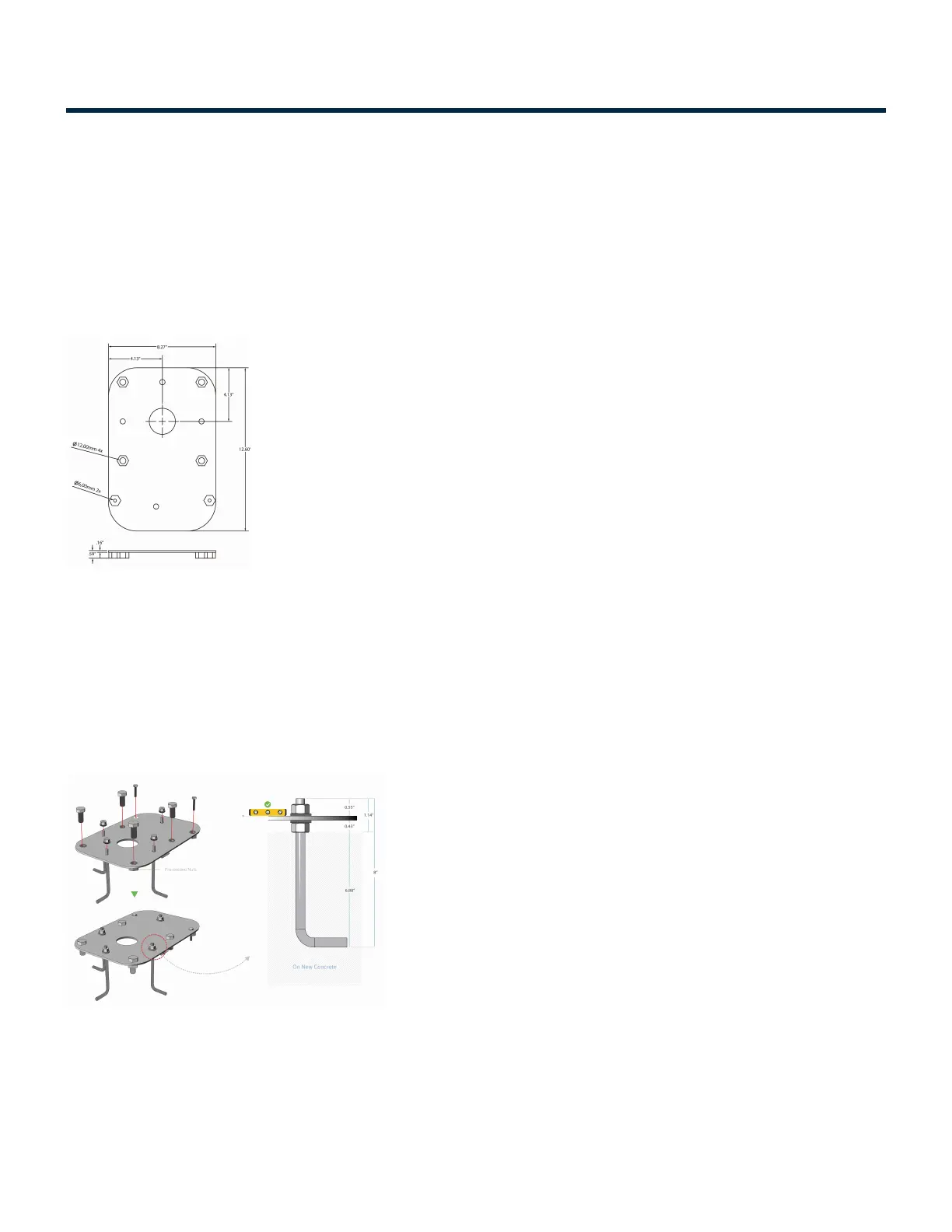

Fit all J-Bolts (4), Pedestal (4) and CMS (2) Disposable Bolts to the anchor plate. (Figure-6)
• The flat side on which 6 nuts are welded on the Anchor Plate face downwards.
• Do not remove Disposable Bolts (6) from the anchor plate until the pedestal is ready to be installed.
• Make sure that only one thread of the top nut is visible after the J-Bolts are fitted to the anchor plate
(Figure 7)
Insert the anchor plate into the concrete (Figure-8).
• Ensure that at least 40” of wire extends out of the conduit.
• Insert the anchor plate into the concrete immediately after pouring the concrete.
• It is recommended to vibrate the concrete to eliminate any air bubbles.
Installation Manuals Series 7 / 7 Plus EV Charging Station - 1
Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 12 of 26
