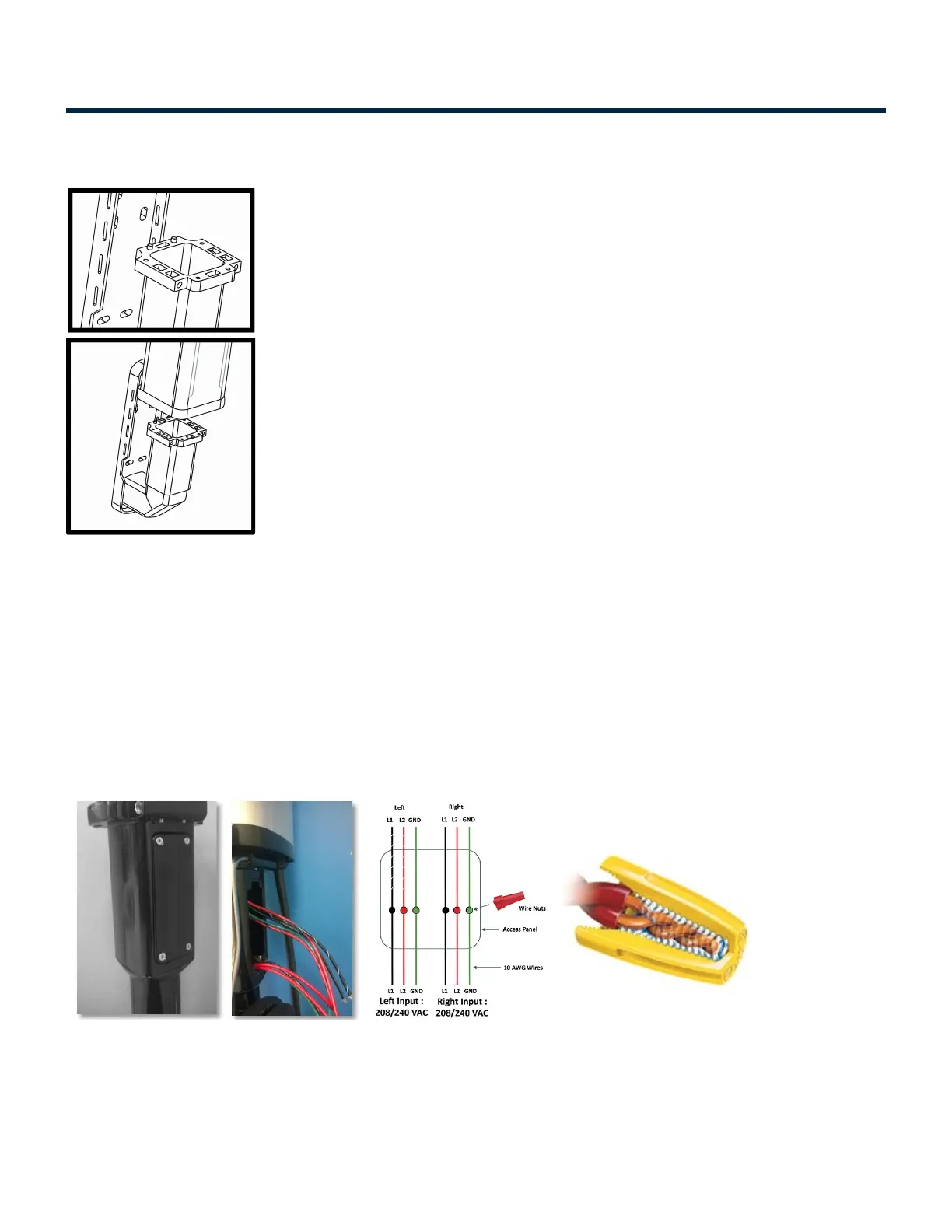

1.4.4. Charging Station Head Installation
Mount the Charging Station Head Unit
• Carefully place the charging station head unit on top of the pedestal as shown in the illustration.
• Align the Guide poles in the pedestal with the base of the head unit.
• Secure Charging station Head Unit to the Pedestal Unit with the help of four mounting screws
provided (two on front and one on each side).
• Ensure the charging station is plumb using a level. Check that the Head Unit is now securely fastened
to the Pedestal.
Connecting the Wires: Series 7
• Open the Access Panel by removing the four screws.
• Locate and access the wires inside.
• Carefully pull these wires a few inches outside of the access panel, to reveal 5 wires coming from the
Charging station Head Unit, Figure 13 (for Level-2 charging stations the color codes are Red, Black,
