First insert anchor bolts and secure with one or two turns, but do not tighten.
• The leveling screws that can be found on four sides are used to adjust for plumb.
• Adjust leveling screws to make pedestal plumb (check with Level at two points separated by 90
degrees).
• Gradually tighten anchor bolts to secure the Pedestal Unit to the Anchor Plate. Re-check for plumb.

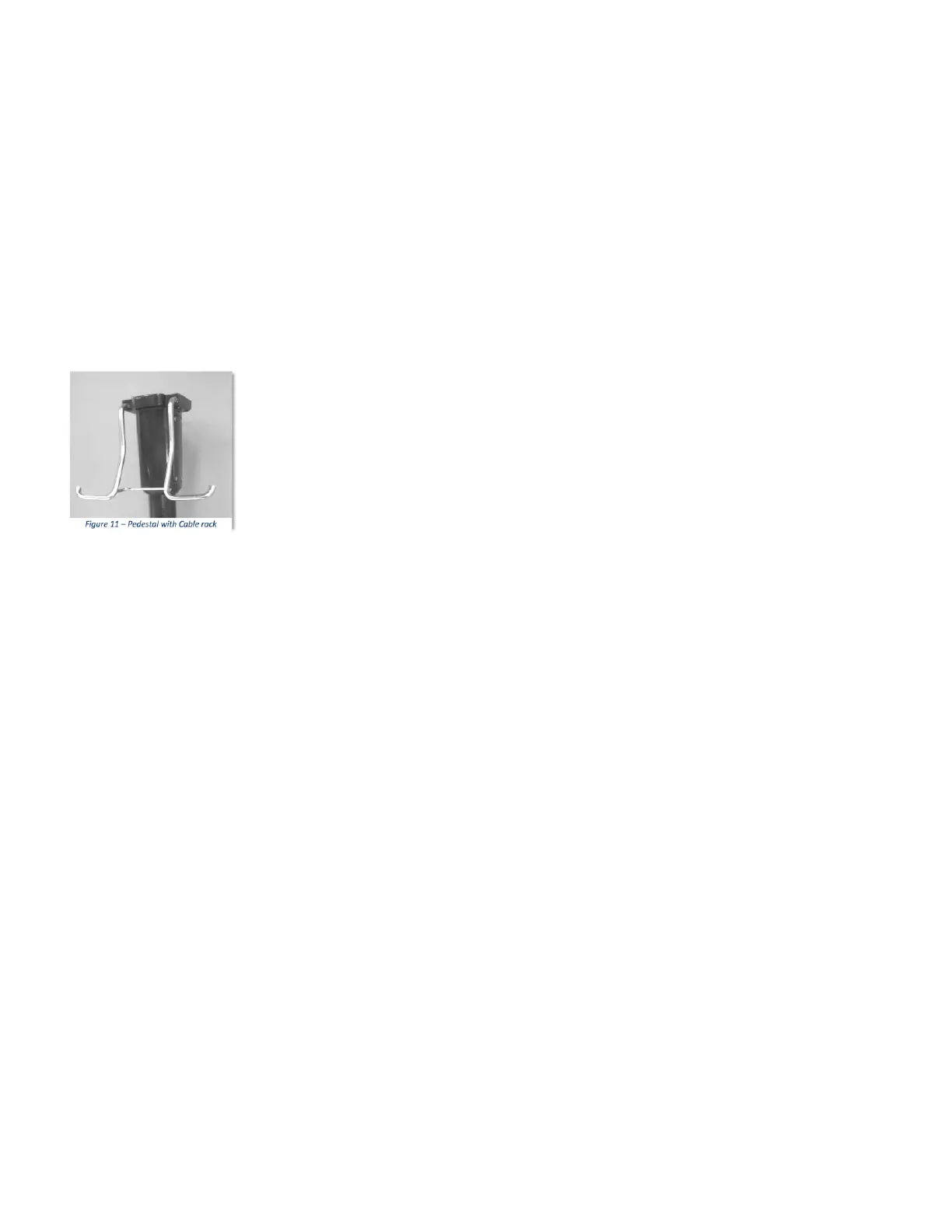

Attach Cable Rack
Loosen the cable rack mount screws. Now attach the Cable Rack to the Pedestal and tighten the screws.
Check that the Cable Rack is secure and is firmly attached to the Pedestal.
