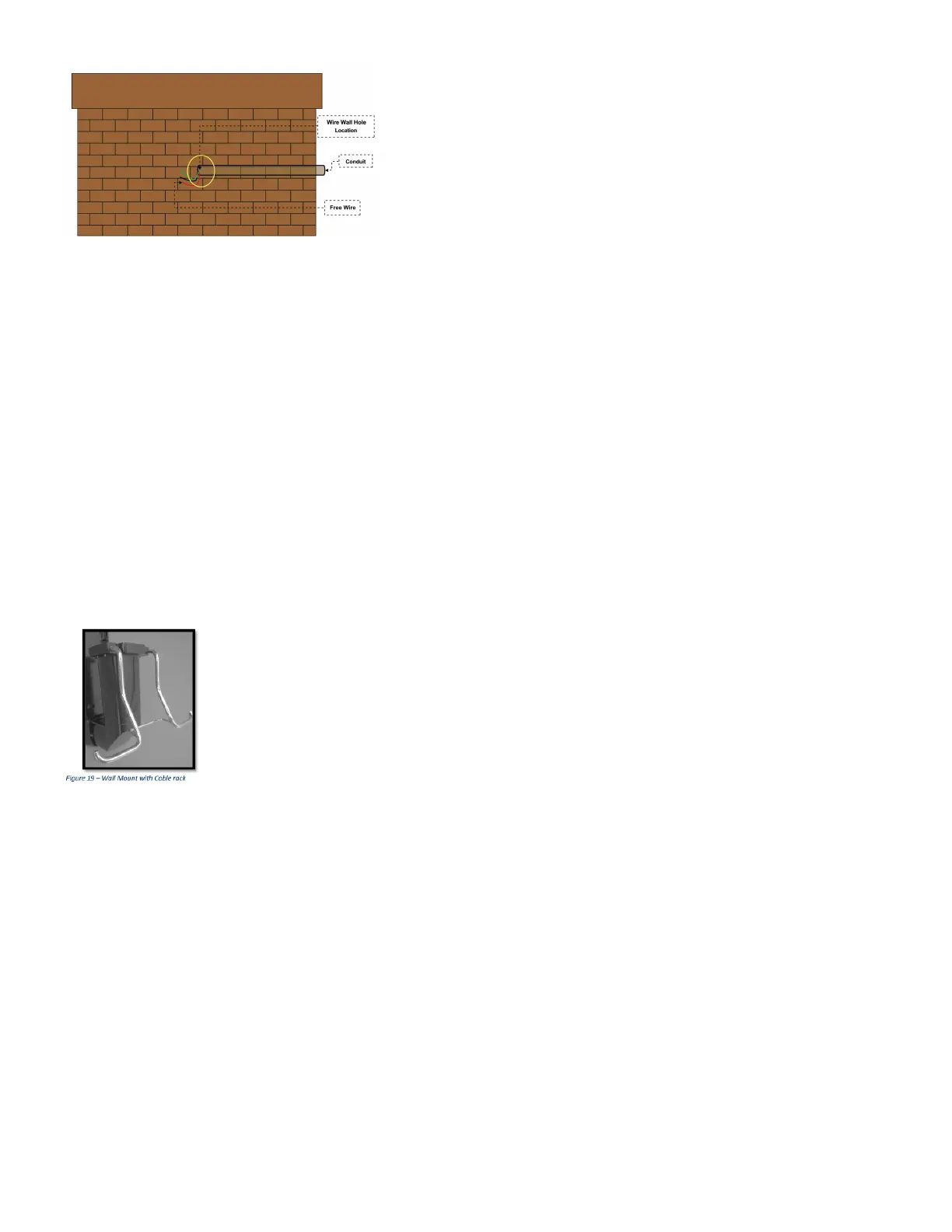

NOTE: If the conduit is run on the same side of the wall as the charging station the wires are then run
through the 1-inch opening on the side of the Wall/Pole Mount Bracket Post.
Install Wall Mount Bracket
Run the wires through the wall-mount.
• Ensure that the wires run all the way to the access panel opening.
• Now secure the wall-mount with the bolts (if concrete or brick wall), or with appropriate fasteners (for
other material).
• With the help of plumb make sure that the wall-mount is vertical.
Attach Cable Rack
• Loosen the cable rack mount screws.
• Now attach the Cable Rack to the wall-mount and tighten the screws (Figure 19).
• Check that the Cable Rack is secure and is firmly attached to the wall-mount.
Installation Manuals Series 7 / 7 Plus EV Charging Station - 1
Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 23 of 26
