Wiring To System – Separate Power

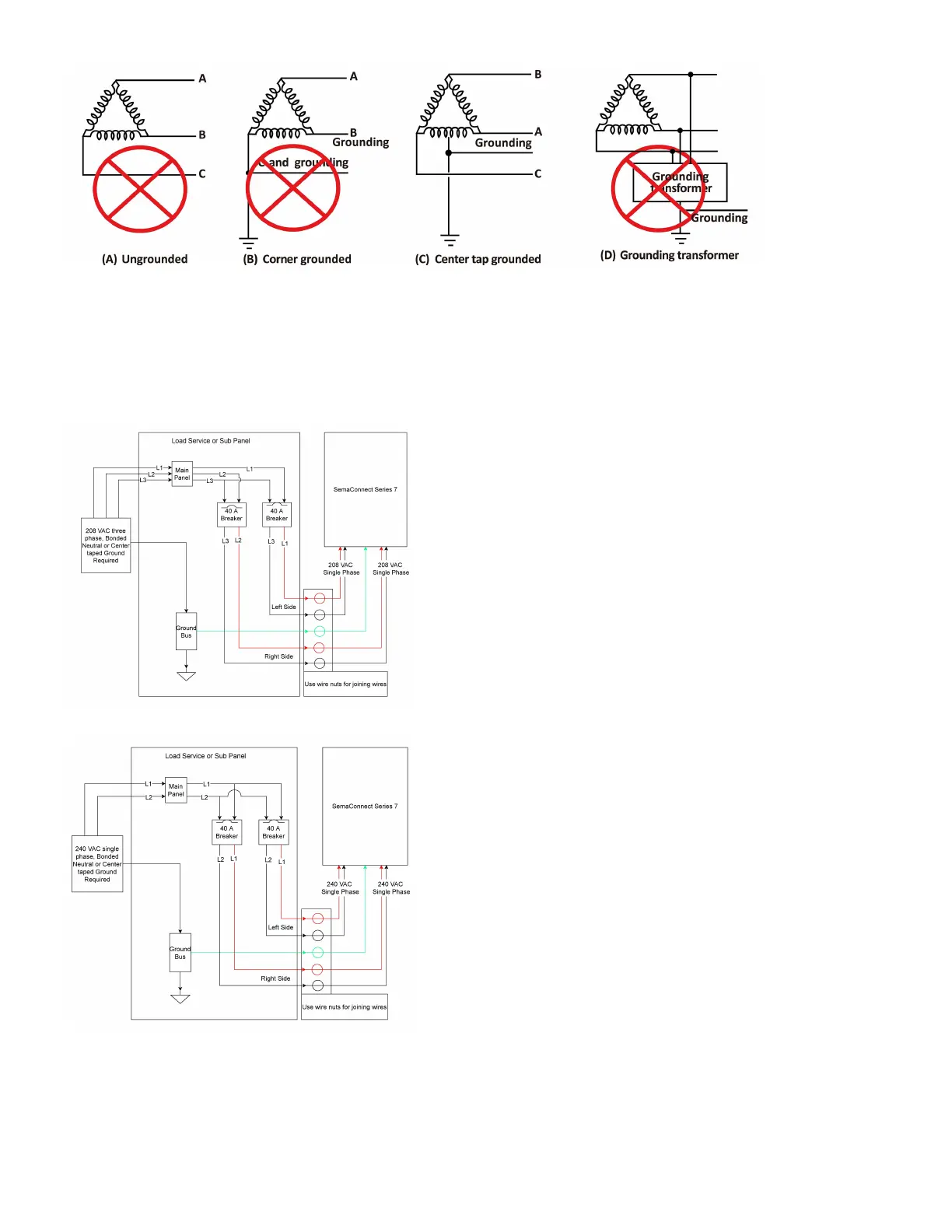

The figure below describes the wiring for installation of Series 7 Charging Station on a separate power
circuit.
