EW-DX SK | EW-DX SK 3-PIN bodypack transmitter
168
Connecting an instrument or line source to the EW-
DX SK 3-PIN
You can connect instruments or audio sources with a line level
to the bodypack transmitter.
To do so, you require the Sennheiser CI 1-4 cable (6.3 mm (1/
4") jack plug to screw-on 3-pin audio connector).
To connect an instrument or line source to bodypack transmit-
ter:

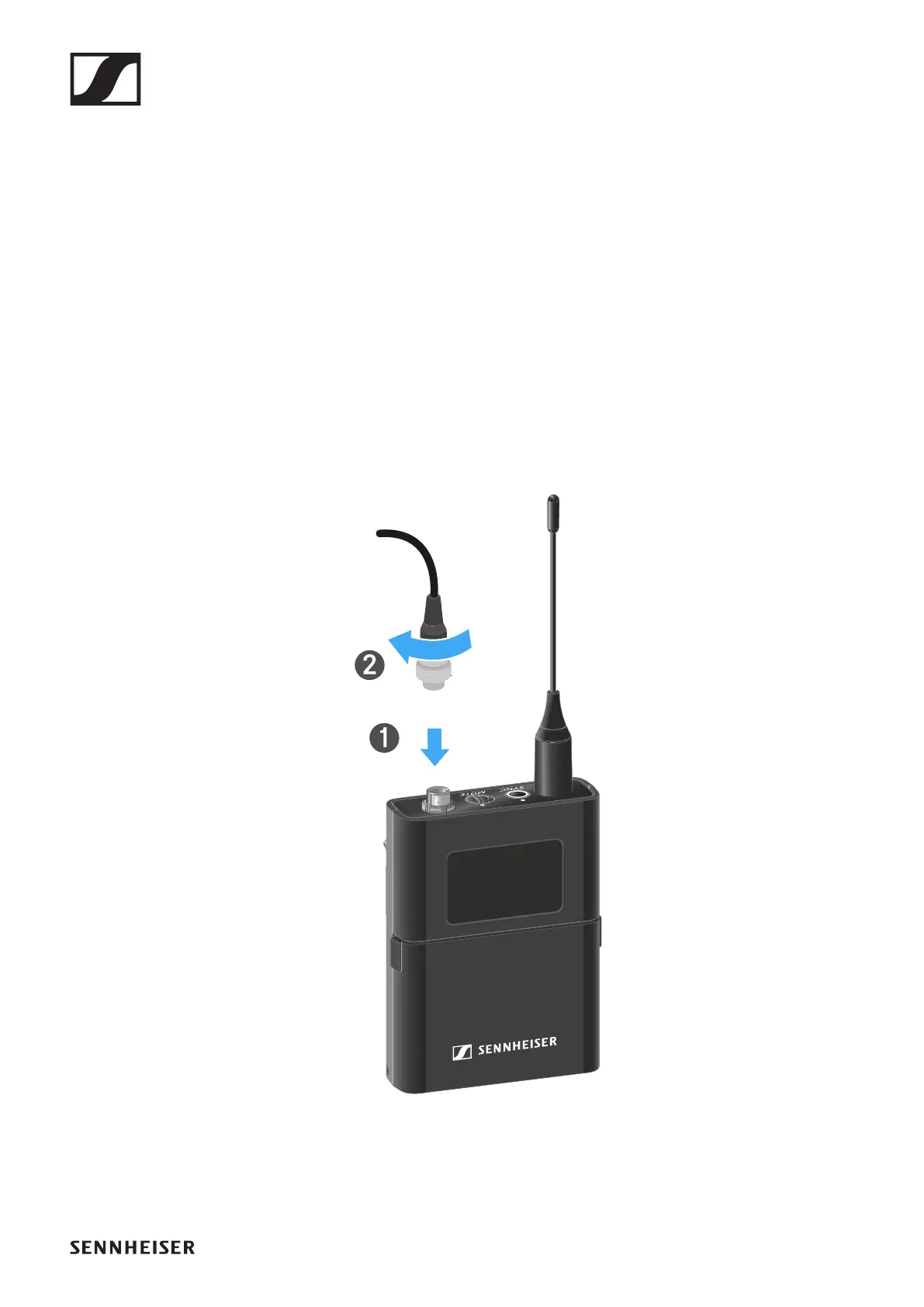

▷ Insert the cable’s three-pin plug into the socket on the
bodypack transmitter as shown in the diagram.
▷ Screw the plug’s coupling ring onto the audio socket thread
of the bodypack transmitter.
