EW-D EM rack receiver

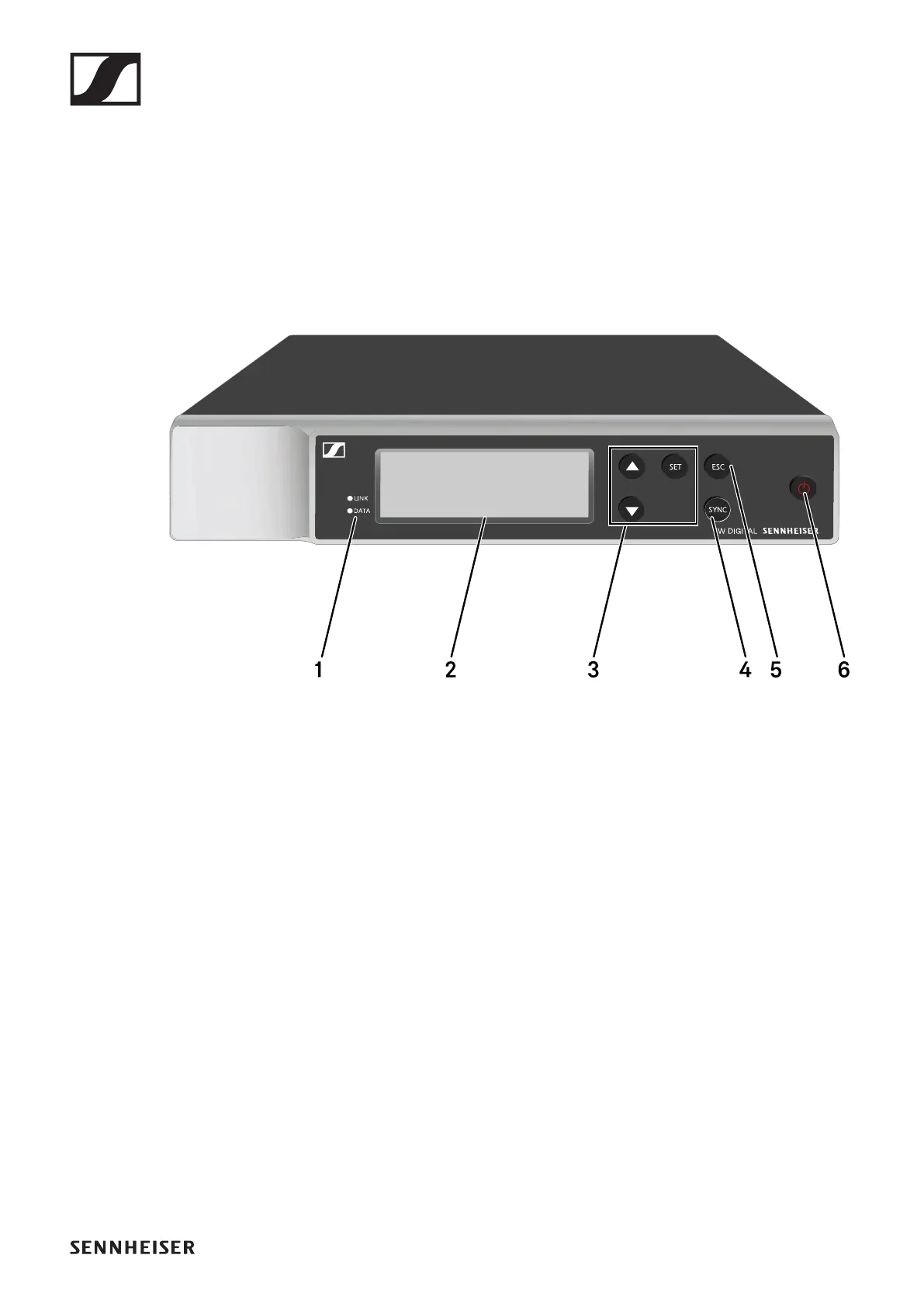

Connectors and controls

Front

1 LINK and DATA LEDs to indicate connection status and

Bluetooth status

• See „Meaning of the LEDs“

2 Display for status information and operating menu

• See „Displays on the receiver’s display panel“

3 UP/DOWN/SET menu buttons for navigating the operating

• See „Making settings in the menu“

4 SYNC button for synchronizing the transmitter and receiver

• See „Establishing a radio link | Synchronizing the receiver

and transmitter“

5 ESC button for canceling an action in the menu

• See „Making settings in the menu“

6 ON/OFF button for switching the device on and off

• See „Switching the receiver on and off“

Sennheiser Evolution Wireless Digital Series - Connectors and Controls
