Charging the EW-DX SKM(-S) handheld transmitter, the EW-DX SK (3-PIN) bodypack transmitter or the BA 70
198
Charging the EW-DX SKM(-S) handheld
transmitter, the EW-DX SK (3-PIN)
bodypack transmitter or the BA 70 re-
chargeable battery in the CHG 70N char-
ger

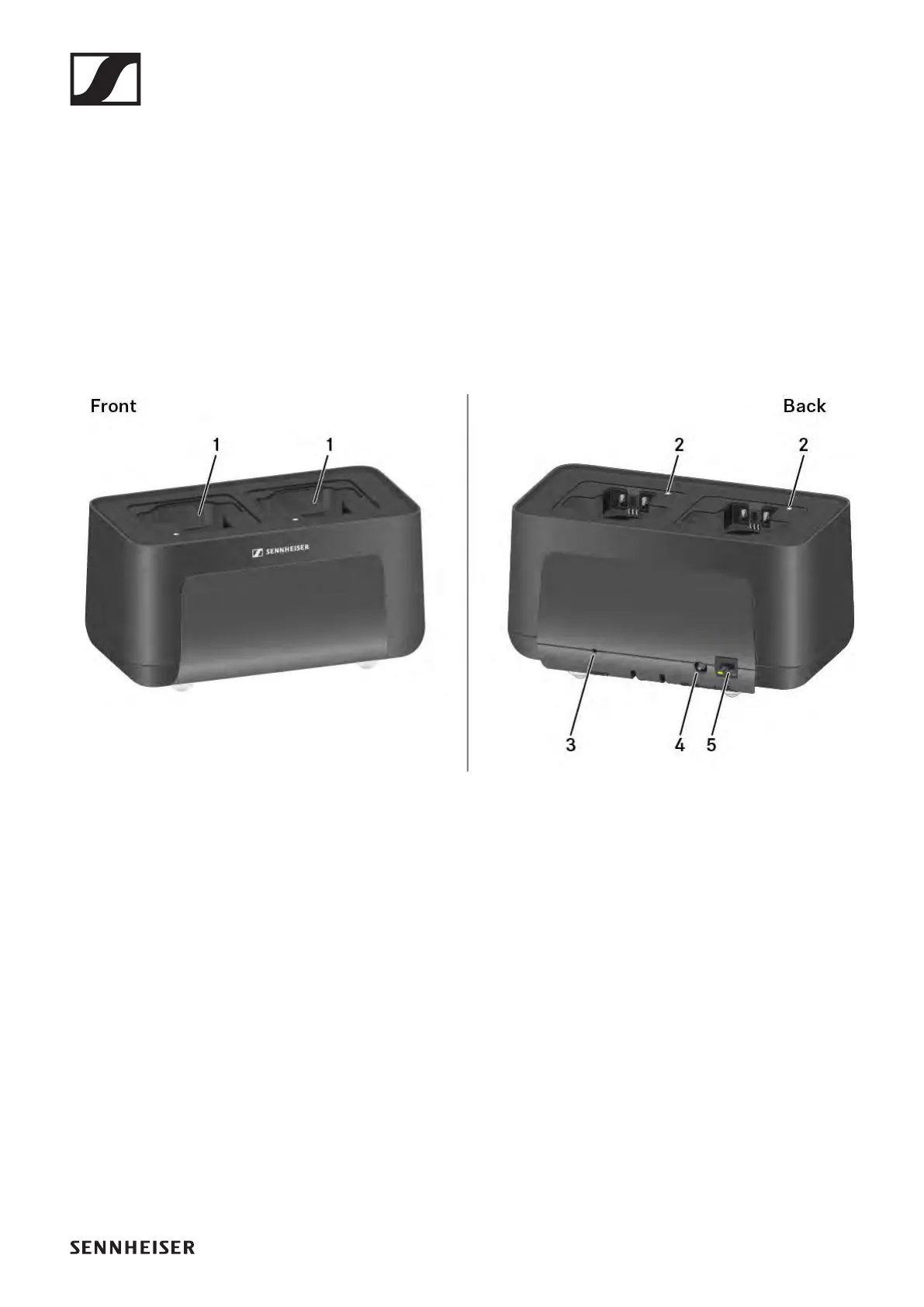

Product overview
1 Charging slots
• See „Charging the rechargeable battery“
2 Status LEDs of the charging slots
• See „Charging the rechargeable battery“
3 Reset button
• Press to reset the device’s network settings.
• See „Connecting a charger in a network“
4 DC in connection socket for the NT 12-35 CS power supply
unit
• See „Connecting/disconnecting the charger to/from the
power supply system“
5 PoE/Ethernet RJ-45 socket for controlling the device over
the network and for Power over Ethernet power supply
• See „Connecting a charger in a network“
• See „Connecting/disconnecting the charger to/from the
power supply system“
