Sennheiser Evolution Wireless Digital Series - Power Supply Connection

EW-D EM rack receiver
35
Back

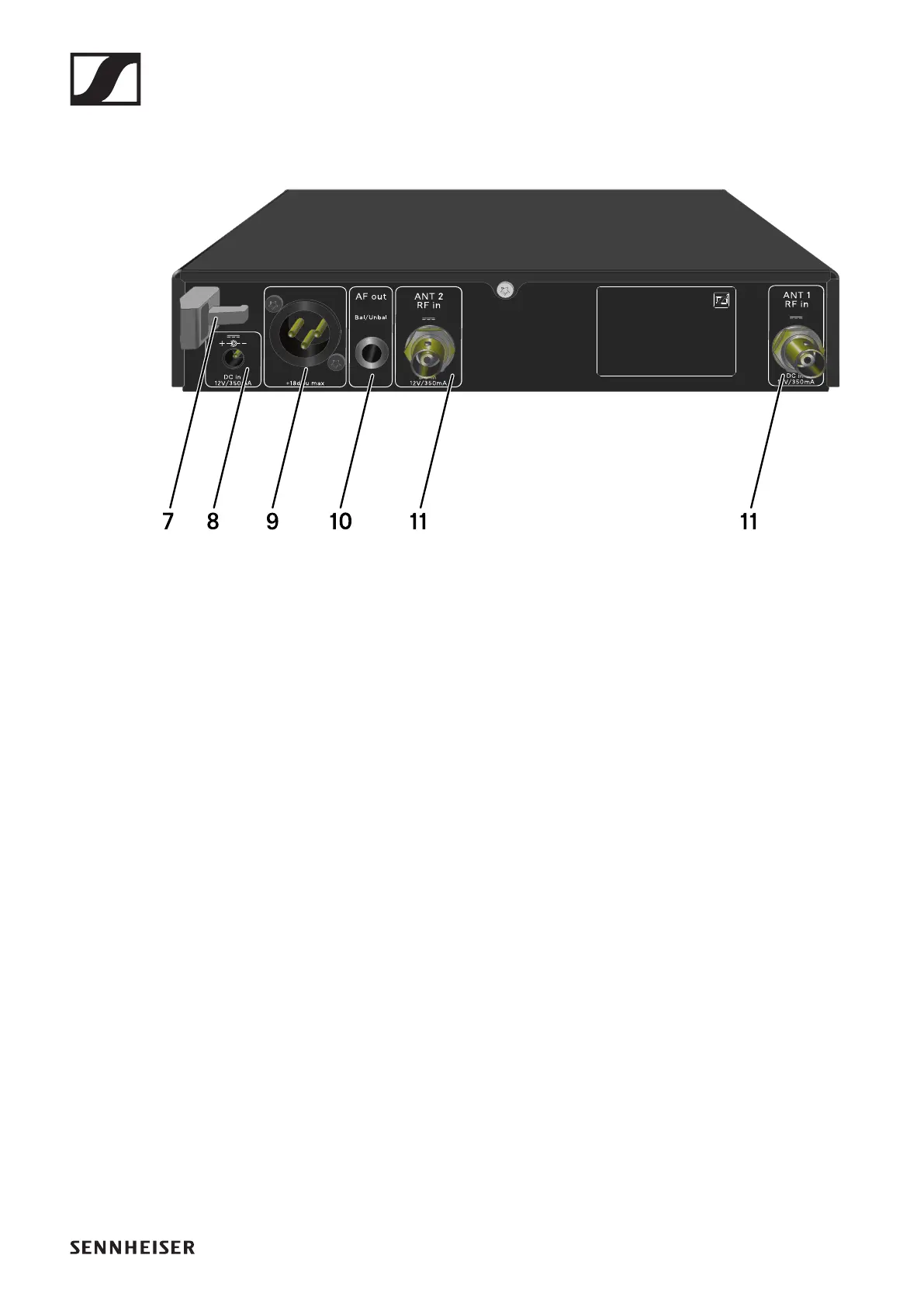

7 Strain relief for the connection cable of the power supply
unit
• See „Connecting/disconnecting the receiver to/from the
power supply system“
8 DC in connection socket for the power supply unit
• See „Connecting/disconnecting the receiver to/from the
power supply system“
9 XLR-3 socket AF out Bal for audio output
• See „Outputting audio signals“
10 6.3 mm jack socket AF out Unbal for audio output
• See „Outputting audio signals“
11 BNC sockets ANT 1 RF in and ANT 2 RF in for antenna inputs
• See „Connecting antennas“
