Product overview
9

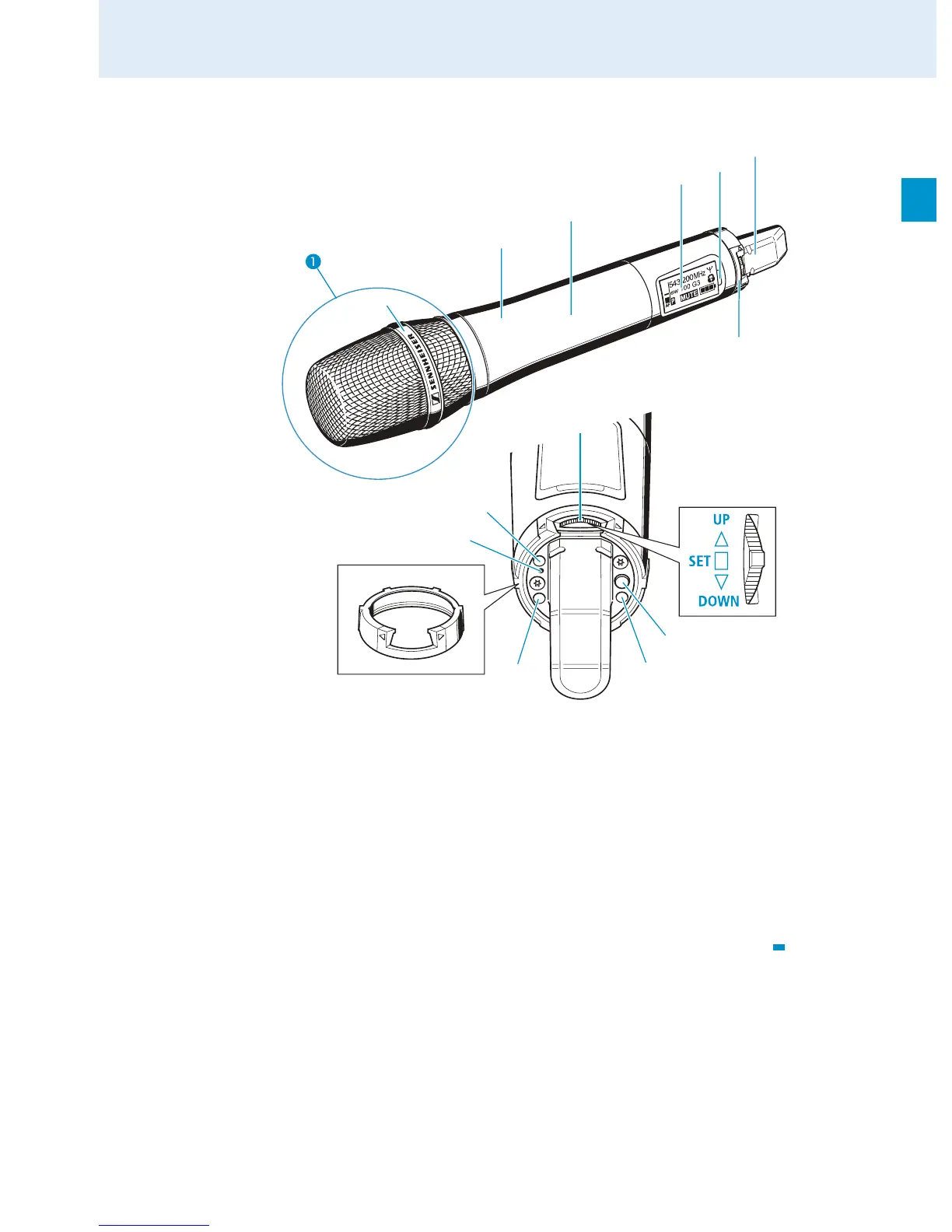

Overview of the SKM 100 radio microphone
Operating elements
쐃 Microphone head (interchangeable)
쐇 Name and pick-up pattern of the micro-
phone head (not visible here)
쐋 Body of radio microphone
쐏 Battery compartment (not visible from
outside)
쐄 Display panel, backlit in orange
쐂 Infra-red interface
쐆 Antenna
쐊 Color-coded protection ring; available in
different colors
쐎 Operation and battery status indicator,
red LED
(lit = ON/flashing = LOW BATTERY)
쐅 Charging contacts
쐈 Multi-function switch:
 (DOWN),  (UP) and (SET)
쐉 ON/OFF button,
serves as the ESC (cancel) key in the
operating menu
