Putting Together a System
Following are diagrams of several typical wireless microphone and wireless monitor systems.
NOTE: For systems larger than 8 channels, we recommend using Sennheiser's 2000 Series wireless:
www.sennheiserUSA.com/2000Series
NT1-1-US
AntennaAntenna
ASA1/NT
EM300G3
EM300G3
RF Cables
Power
EM300G3
EM300G3

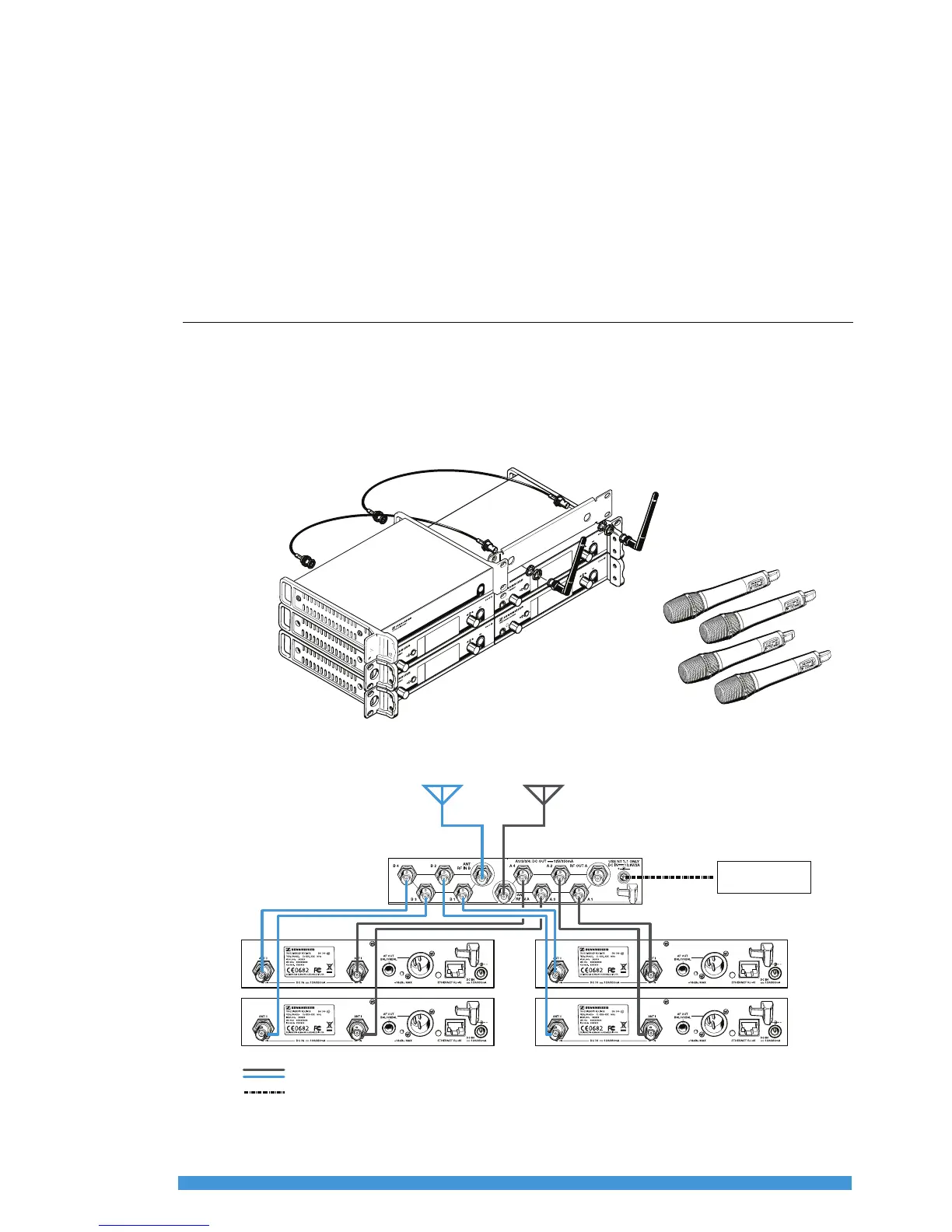

Four Channel Wireless System
(4 Handheld Systems)
Qty Model Description
4 ew 335 G3 Handheld Systems w/MMD 835-1 capsules
1 G3 Front Kit 4 Active splitter kit for four receiver system using front-mount antennas,
includes ASA1/NT, GA3, AM2
PRO TIP: DC Power for (EM) receivers is provided via the "A" Outputs
