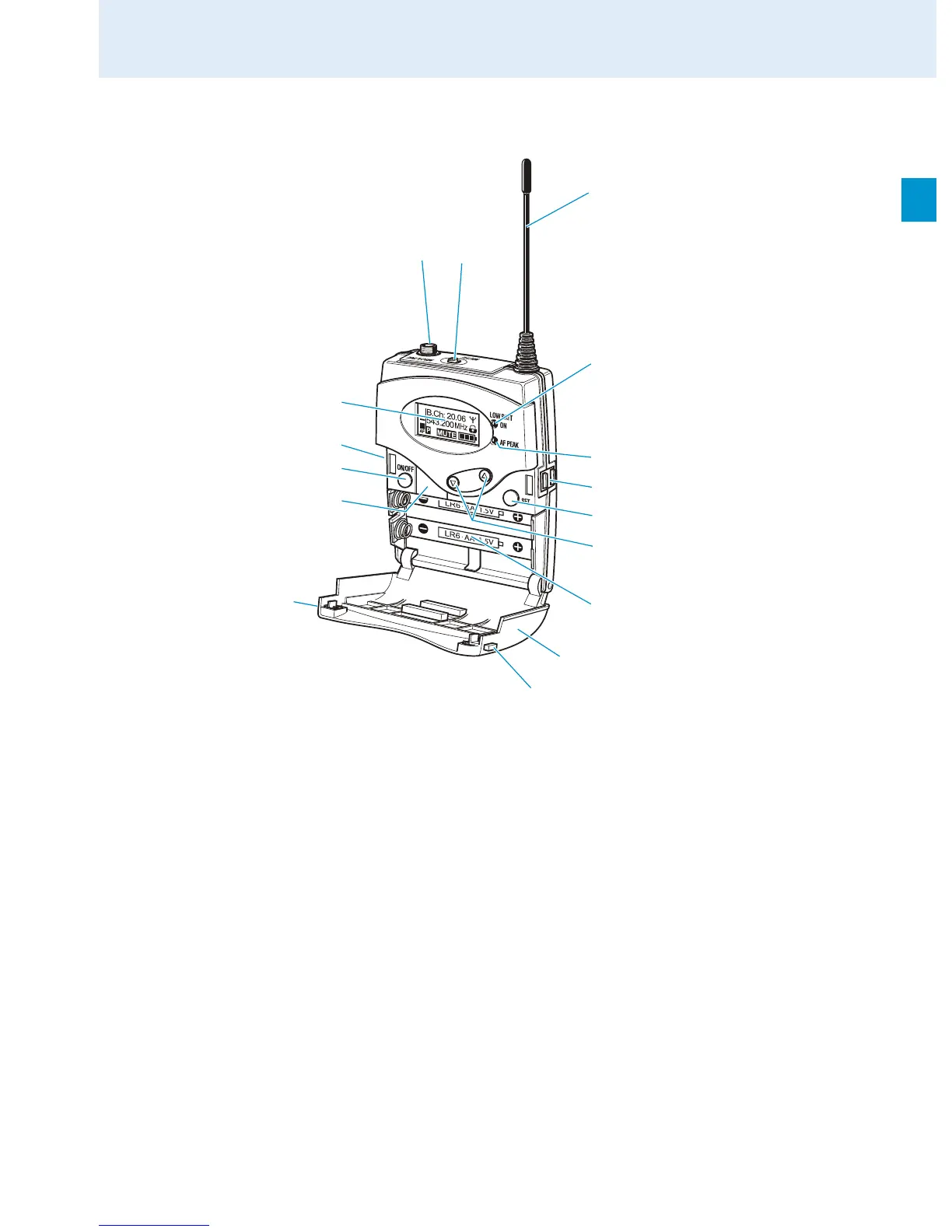

Overview of the SK 100 bodypack transmitter
Operating elements
쐃 Microphone/instrument input (MIC/LINE),
3.5 mm jack socket, lockable
쐇 MUTE switch
쐋 Antenna
쐏 Operation and battery status indicator, red LED
(lit = ON/flashing = LOW BATTERY)
쐄 Audio overmodulation indicator, yellow LED
(lit = AF PEAK)
쐂 Charging contacts
쐆 SET button
쐊 / rocker button (UP/DOWN)
쐎 Battery compartment
쐅 Battery compartment cover
쐈 Battery compartment catches
쐉 Infra-red interface
씈 ON/OFF button,
serves as the ESC (cancel) key in
the operating menu
씉 Display panel, backlit in orange
