Sennheiser HMEC 26 - Page 38

SENNHEISER ELECTRONIC GMBH & CO. KG
COMPONENT MAINTENANCE MANUAL
HMEC 26-SERIES
Page 2002
Feb 10/10
23-41-48
Connector assignment Cable -CP
Solder side XLR-5 connector
1
2
3
4
5
1 2 3
Audio Hi (wh/or) Audio Lo / DC- (br/gr) Microphone Hi (rd)
4 5
Microphone Lo (bl/scr) NoiseGard DC+ (yl)
wh or scr * n.c. gr rd bl n. c.
yl
wh
gr
br
n.c.
scr *
rd
bl
Cable -NP
Solder side Neutricon connector
1 Audio Hi (wh/or) 2 Audio Lo (br) 3 not assigned 4 Microphone Lo (bl/scr) 5 Microphone Hi (rd) 6 not assigned 7 DC- (gr) 8
PCB drawn as example
NoiseGard DC+ (yl)
* To avoid short circuits cover the screen with commercial insulation tube.
Figure 2002

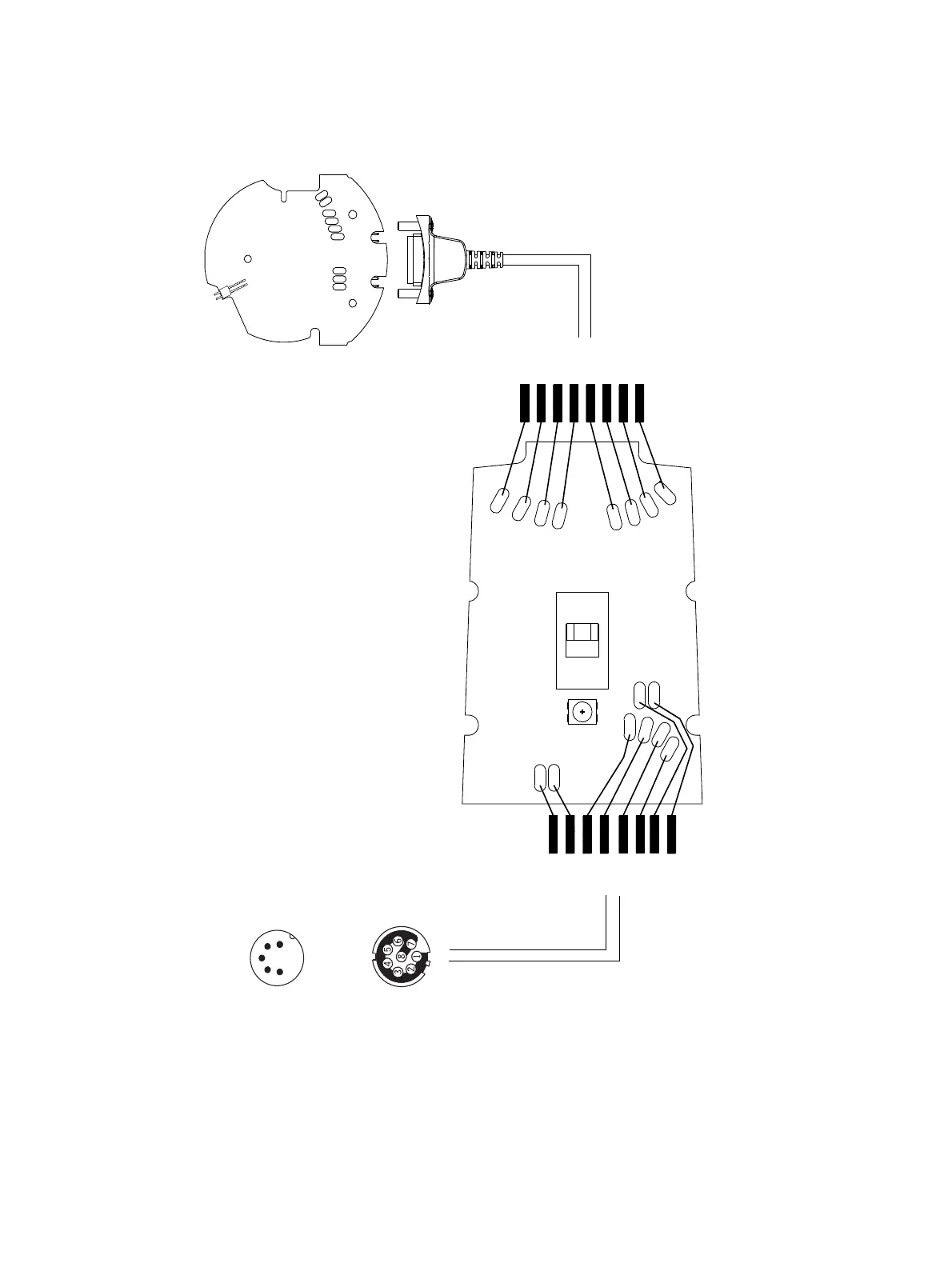

Wiring diagram Cable -CP, -NP
Oct 30/08
