SENNHEISER ELECTRONIC GMBH & CO. KG
COMPONENT MAINTENANCE MANUAL
HMEC 26-SERIES
Page 2009
Feb 10/10
23-41-48
Connector assignment Cable -V-CP
Solder side
1
2
3
4
5
1 2 3
Audio Hi (wh/or) Audio Lo / DC- (br/gr) Microphone Hi (rd)
4 5
Microphone Lo (bl/scr) NoiseGard DC+ (yl)
br yl
scr * gr wh bl rd
or
or
br
wh
bl
scr *
yl
rd
gr
n.c.
n.c. n.c.
PCB drawn as example
* To avoid short circuits cover the screen with commercial insulation tube.

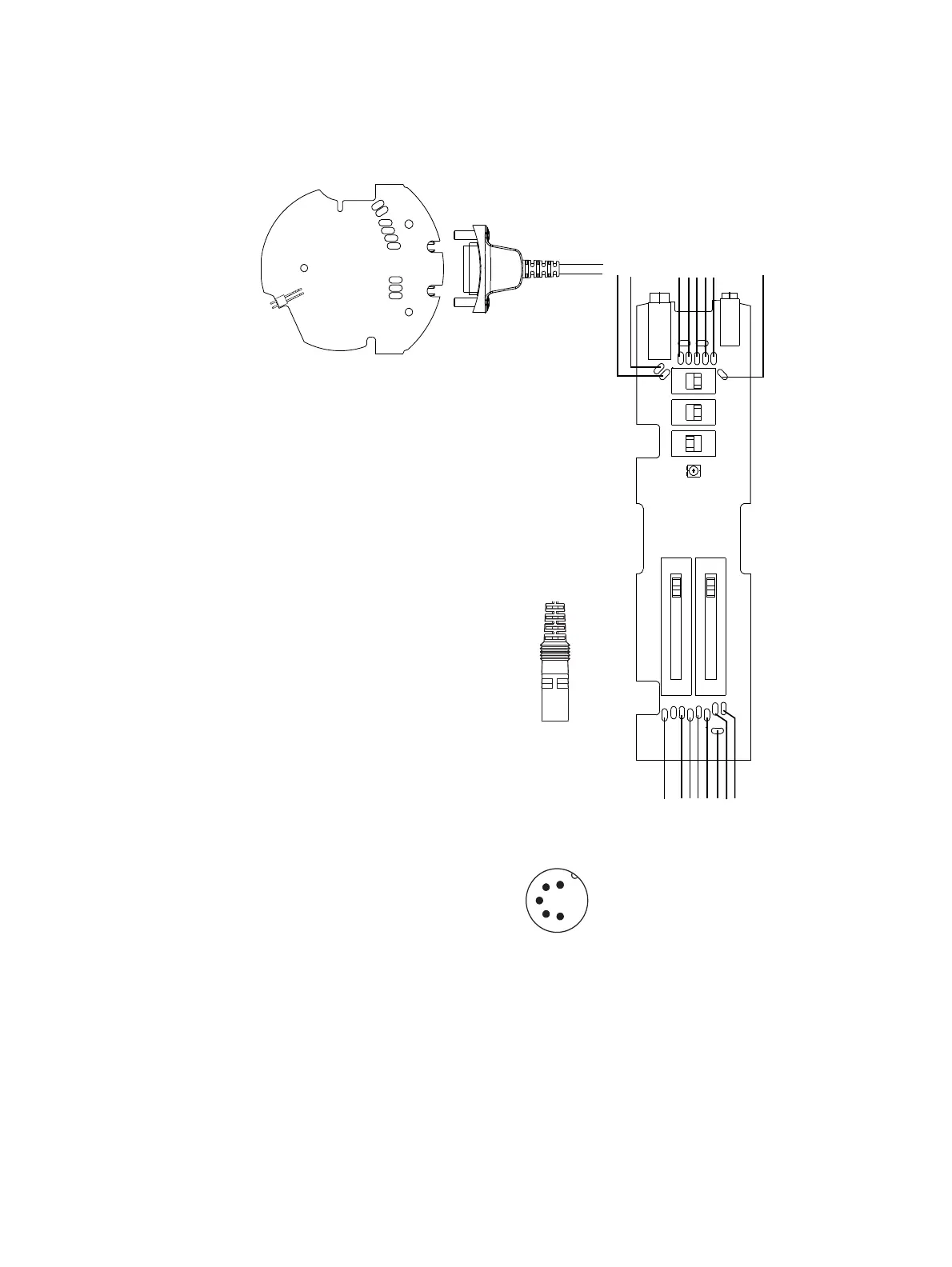

Figure 2009
Wiring diagram Cable -V-CP
Oct 30/08
