SENNHEISER ELECTRONIC GMBH & CO. KG
COMPONENT MAINTENANCE MANUAL
HMEC 26-SERIES
Page 10014
Mar 13/13
23-41-48
FIG. ITEM PART NUMBER NOMENCLATURE EFF
CODE
UNITS
PER
ASSY
-001 531424 CAP WITH MICROPHONE ARM SUPPORT
MICROPHONE SIDE (UP TO SERIAL NO. 00200100
RF
010 525225 CLIP FOR CAP, MICROPHONE SIDE 1
020 087509 THREADED PIN 1
030 522460 OPTICAL WAVEGUIDE 1
- ITEM NOT ILLUSTRATED
FIG. ITEM PART NUMBER NOMENCLATURE EFF
CODE
UNITS
PER
ASSY
-001 540367 CAP WITH MICROPHONE ARM SUPPORT
MICROPHONE SIDE (FROM TO SERIAL NO. 00200100)
RF
010 525225 CLIP FOR CAP, MICROPHONE SIDE 1
020 545287 SCREW TORX PLUS 6 IP 2X6, 10 PCS. 1
030 522460 OPTICAL WAVEGUIDE 1
- ITEM NOT ILLUSTRATED
010
020
030
up
down
010
030
up
down
020

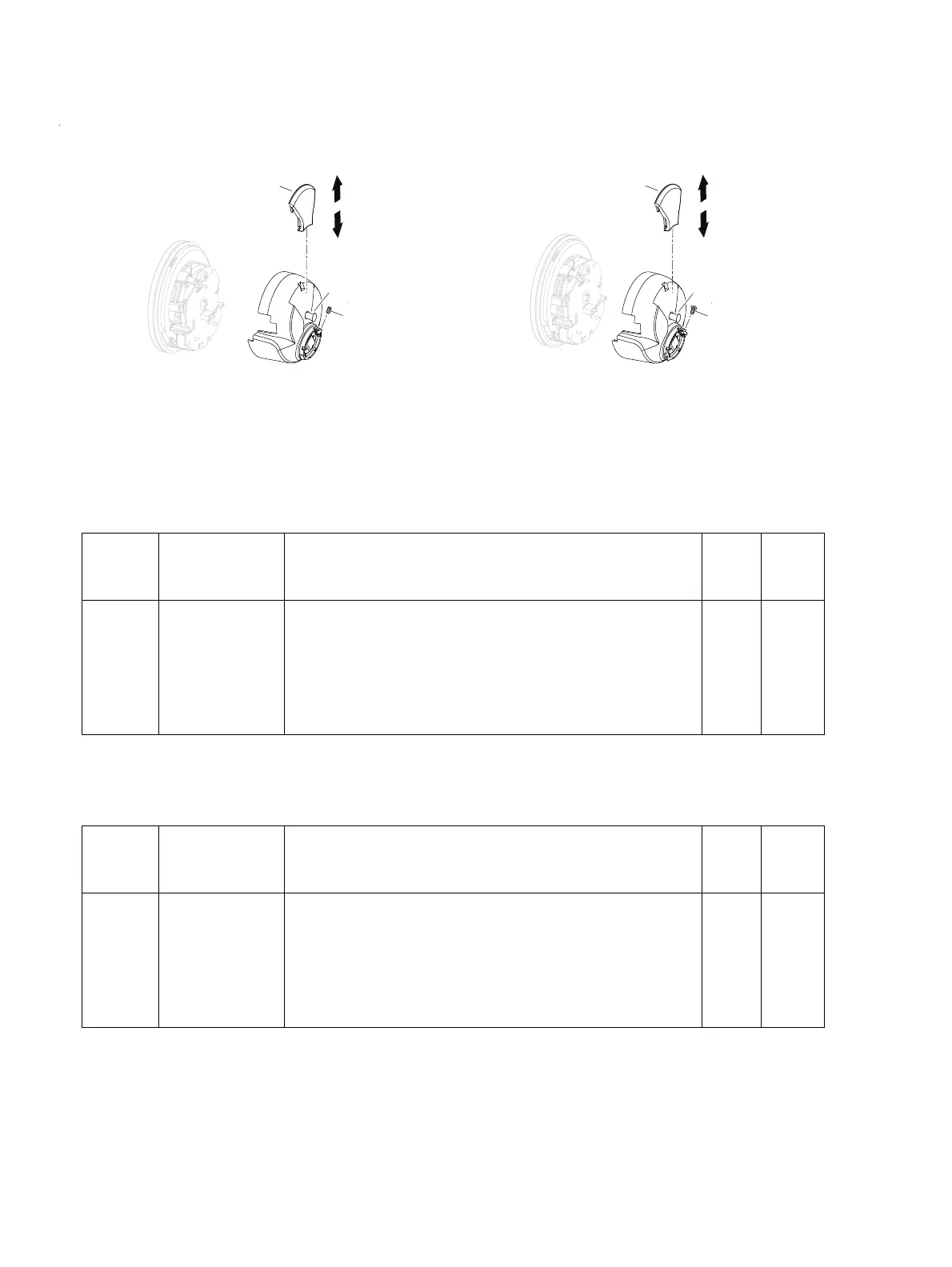

Figure 4
HMEC 26-T headphone cap - microphone cap side
Up to serial no. 00200100
From serial no. 00200100
Oct 30/08
