EW-DX SK | EW-DX SK 3-PIN bodypack transmitter
160
EW-DX SK | EW-DX SK 3-PIN bodypack
transmitter

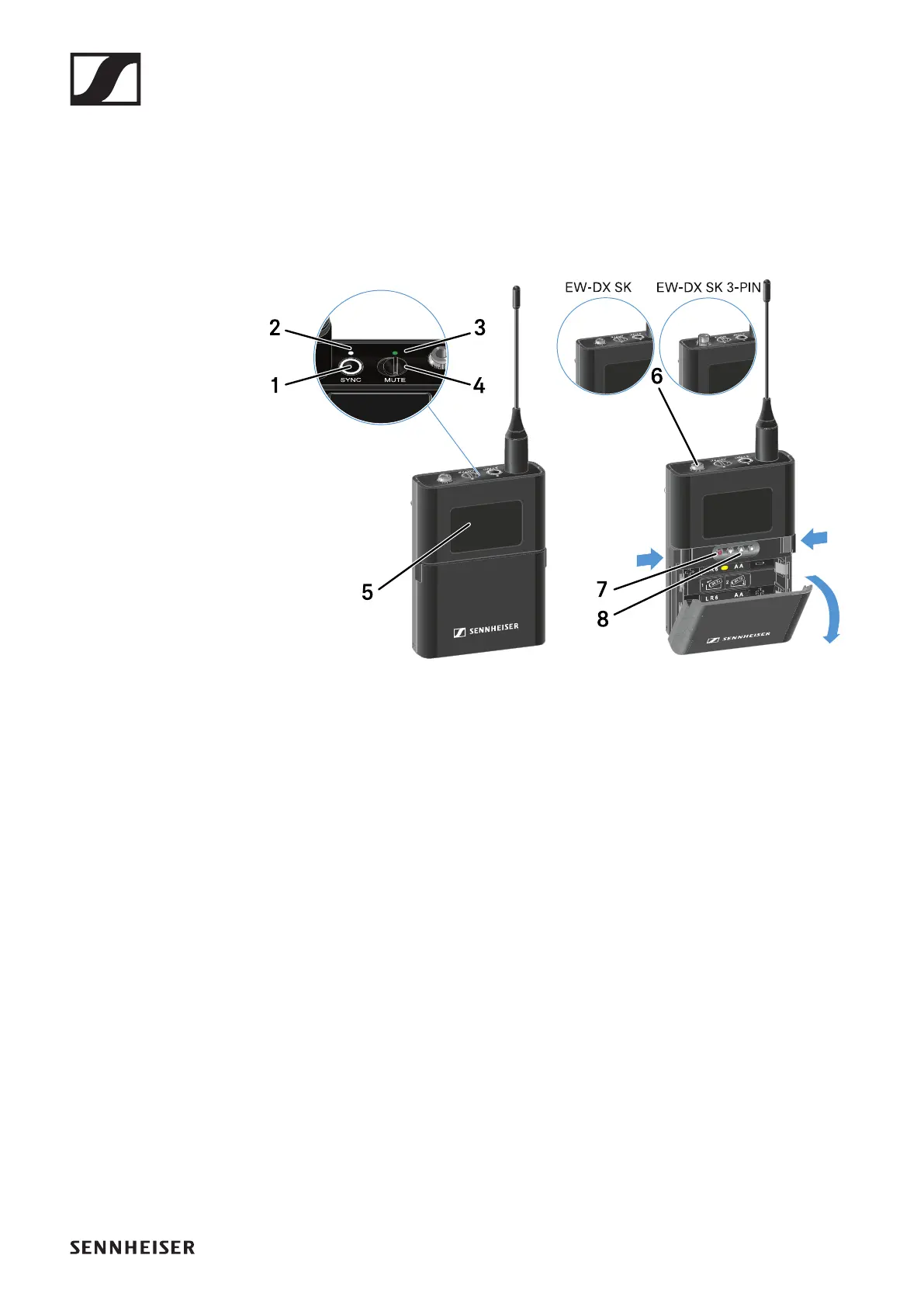

Product overview
►
1 SYNC button
• See „Establishing a radio link | Synchronizing the receiver
and transmitter“
2 DATA LED
• See „Meaning of the LEDs“
3 LINK LED
• See „Meaning of the LEDs“
4 Mute switch
• See „Configuring mute mode and muting the bodypack
transmitter“
5 Display panel
• See „Information on the bodypack transmitter’s display“
6 EW-DX SK: 3.5 mm jack socket
EW-DX SK 3-PIN: 3-pin socket
• See „Connecting a microphone to the bodypack transmit-
ter“
• See „Connecting an instrument or line source to the
bodypack transmitter“
