EW-D EM rack receiver
34
EW-D EM rack receiver

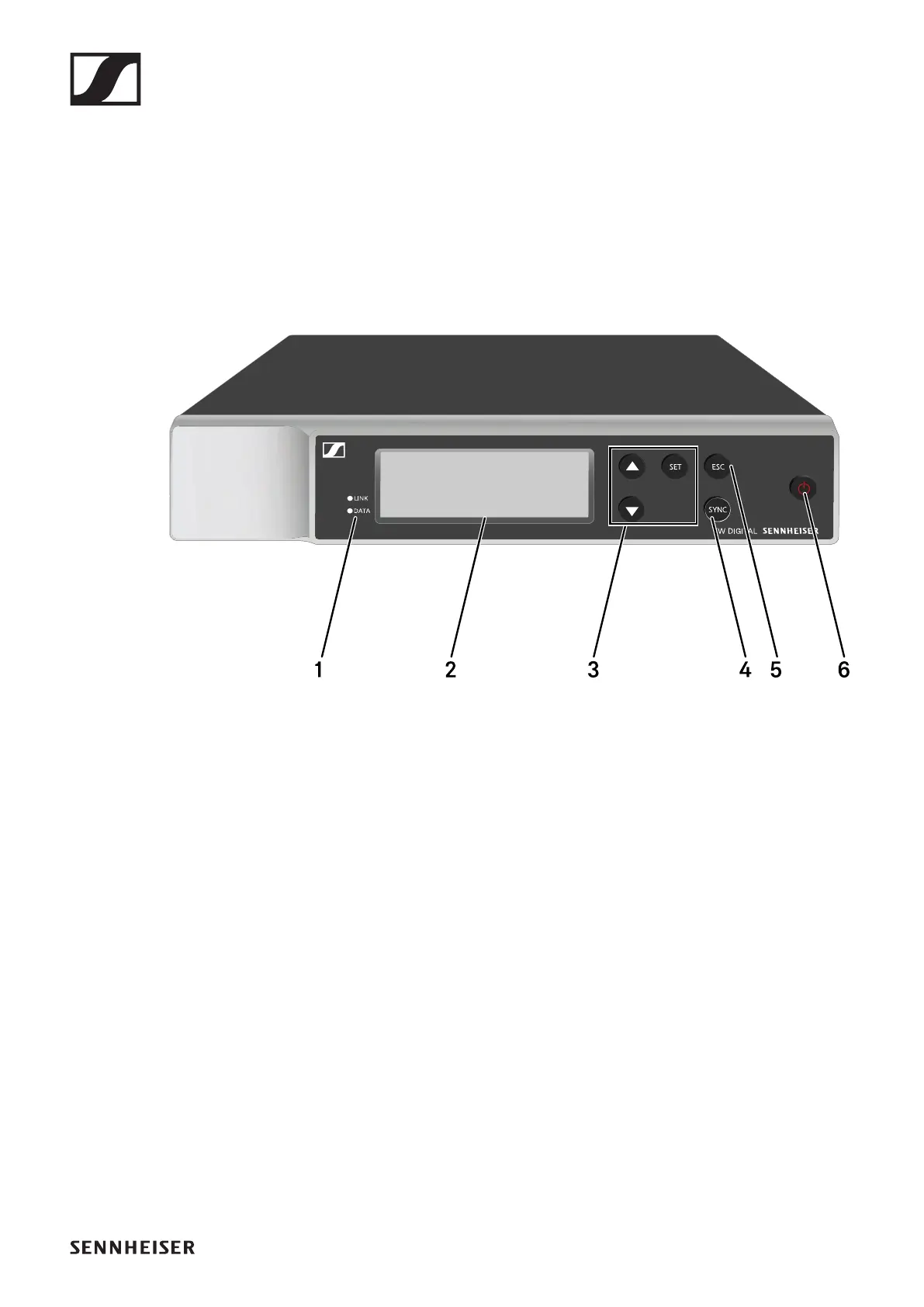

Connectors and controls
Front
1 LINK and DATA LEDs to indicate connection status and
Bluetooth status
• See „Meaning of the LEDs“
2 Display for status information and operating menu
• See „Displays on the receiver’s display panel“
3 UP/DOWN/SET menu buttons for navigating the operating
menu
• See „Making settings in the menu“
4 SYNC button for synchronizing the transmitter and receiver
• See „Establishing a radio link | Synchronizing the receiver
and transmitter“
5 ESC button for canceling an action in the menu
• See „Making settings in the menu“
6 ON/OFF button for switching the device on and off
• See „Switching the receiver on and off“
