Putting the transmitter into operation
10

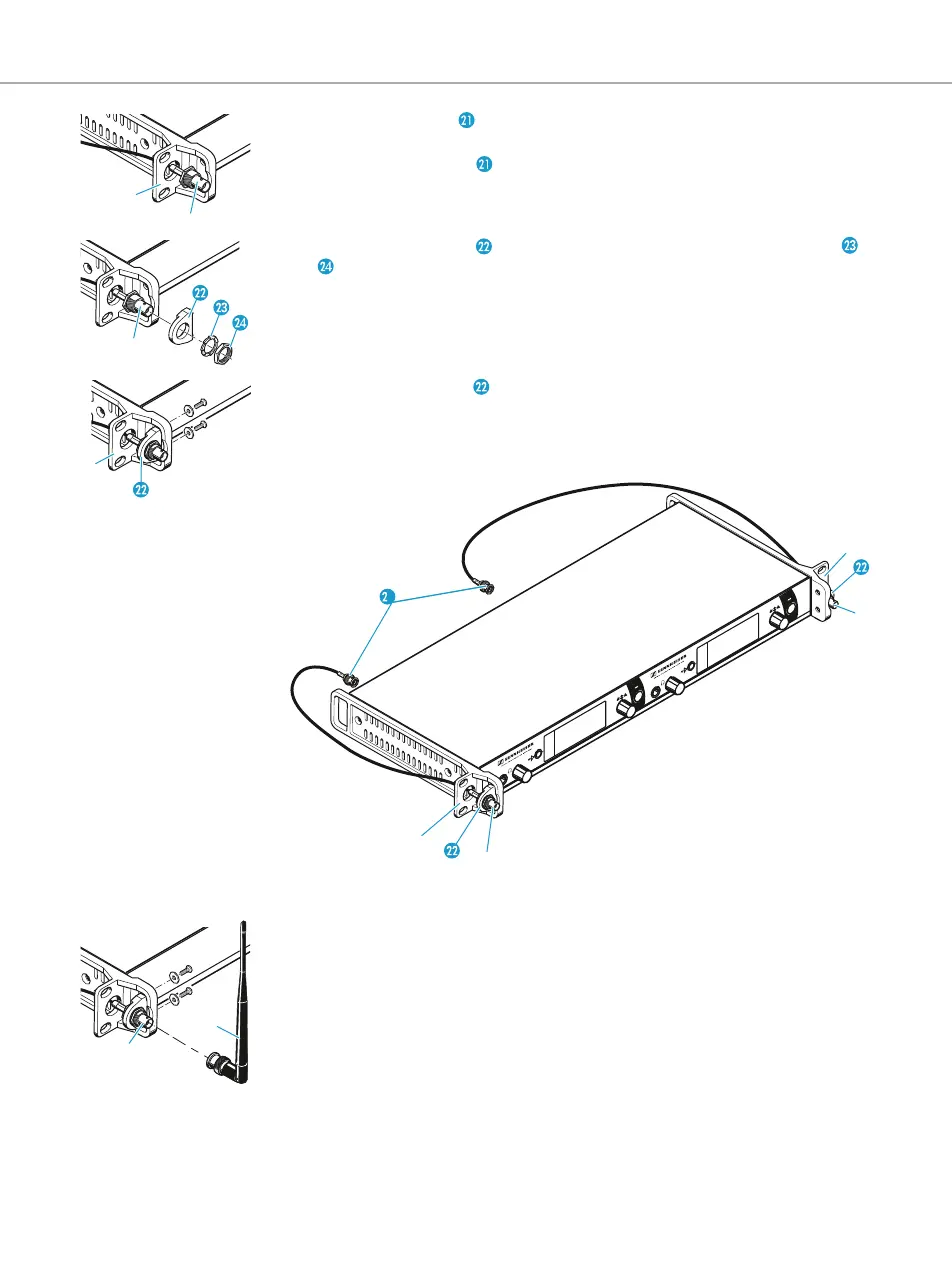

왘 Guide the BNC connector of the BNC extension cable through the hole in the rack mount
“ear” .
왘 Connect the BNC connector to the antenna output .
왘 Screw the antenna holder to the BNC socket using the supplied washer and
nut .
왘 Secure the antenna holder to the rack mount “ear” of the transmitter using two of
the supplied screws.
If you are using the SR 2050 IEM twin transmitter:
왘 Mount the second BNC extension cable in the same way.
왘 Slide the transmitter into the 19” rack.
왘 Connect the rod antennas to the two BNC sockets .
