SENS MicroGenius S2/S4 Technical Manual
16

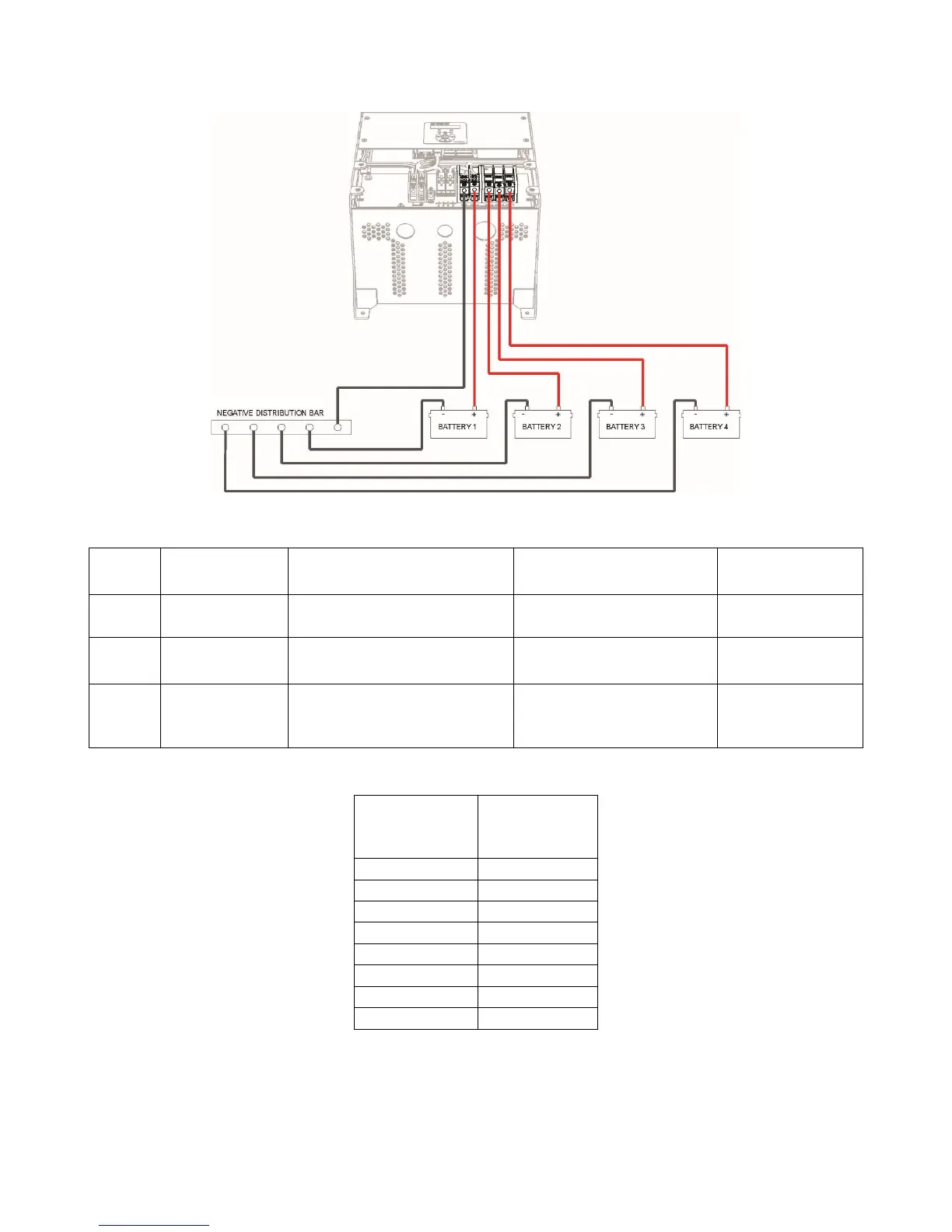

Figure 4 – Multiple Output Connection
Table 3 – DC Allowed Wire Gauge and Torque Requirements
Charger
Model
Connection Type
Allowed Wire Gauge Required Torque Tool
S2 Terminal Block
20-2 AWG (0.5-35 mm
2
)
≤#4: 22 In-Lb (2.5 Nm)
>#4: 40 In-Lb (4.5 Nm)
Phillips P2
S4 Breaker
<50A: 14-2 AWG (2.5-35 mm
2
)
≥50A: 12 AWG-2/0 (4-70 mm
2
)
45 In-Lb (5.1 Nm) 5/16 inch flat-head
S4 Terminal Block
14 AWG-2/0 (2.5-70 mm
2
)
#6-2/0: 120 In-Lb (13.5 Nm)
#8: 40 In-Lb (4.5 Nm)
#14-#10: 35 In-Lb (4.0 Nm)
3/16 inch hex
Table 4 – DC Output Breaker Rating
Charger Rated
Output Current
(Amps)
Optional DC
Breaker Rating
(Amps)
15
20
20
25
25
40
30
40
35
45
45
60
50
70
60
90
