SENS MicroGenius S2/S4 Technical Manual
31

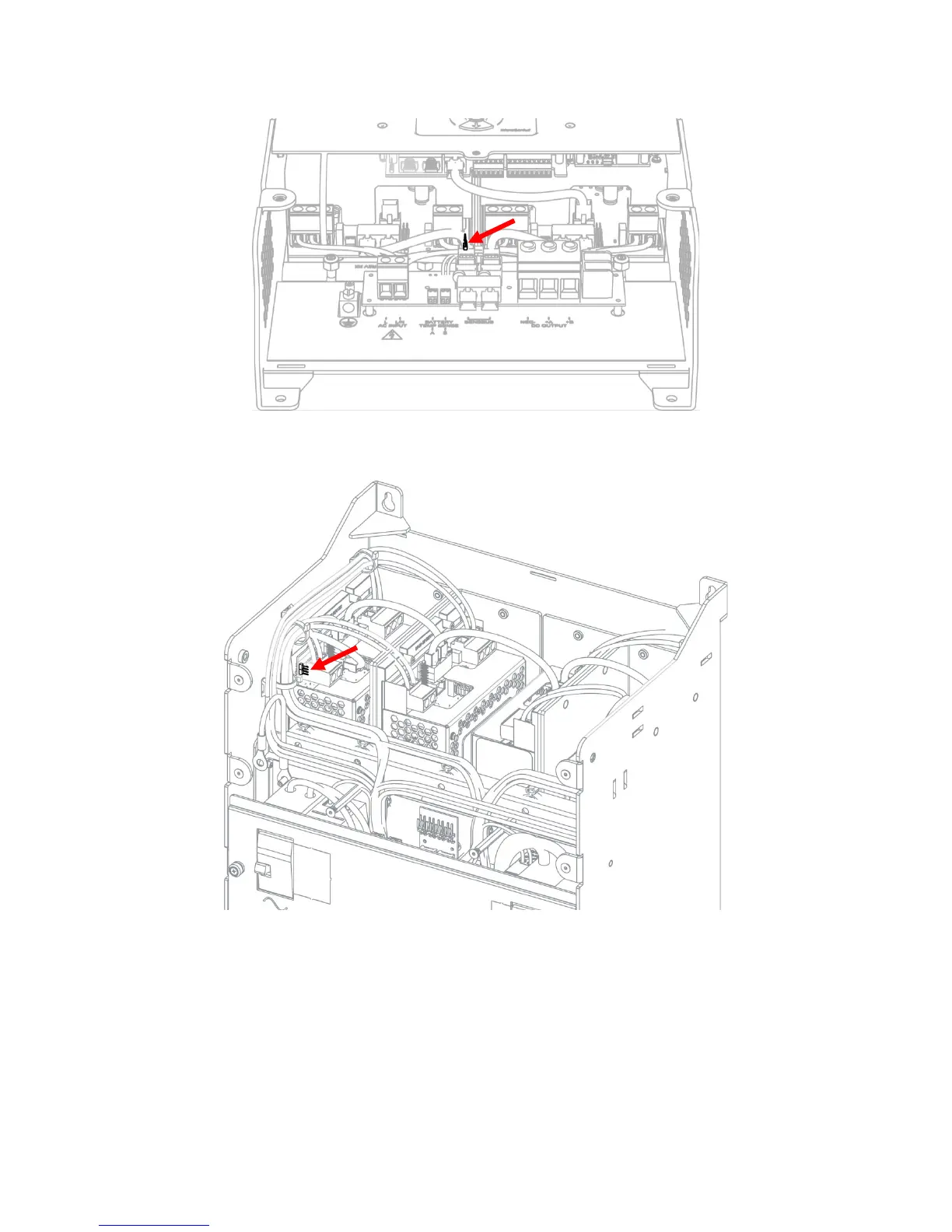

Figure 13 – S2 Ground Fault Jumper
Figure 14 – S4 Ground Fault Jumper
8.4.19. Low Current
Indicates current drawn from the charger is below factory alarm setpoint. Chargers intended for
genset applications are shipped with the low current alarm disabled. Chargers intended for
marine and standby power applications are shipped with the low current alarm set to 2% of the
charger’s rated output current. Alarm/communications circuit board LOW CURRENT relay
contacts change to Fail state after delay when alarm is assigned to relay contacts.
