Relay Output Manage

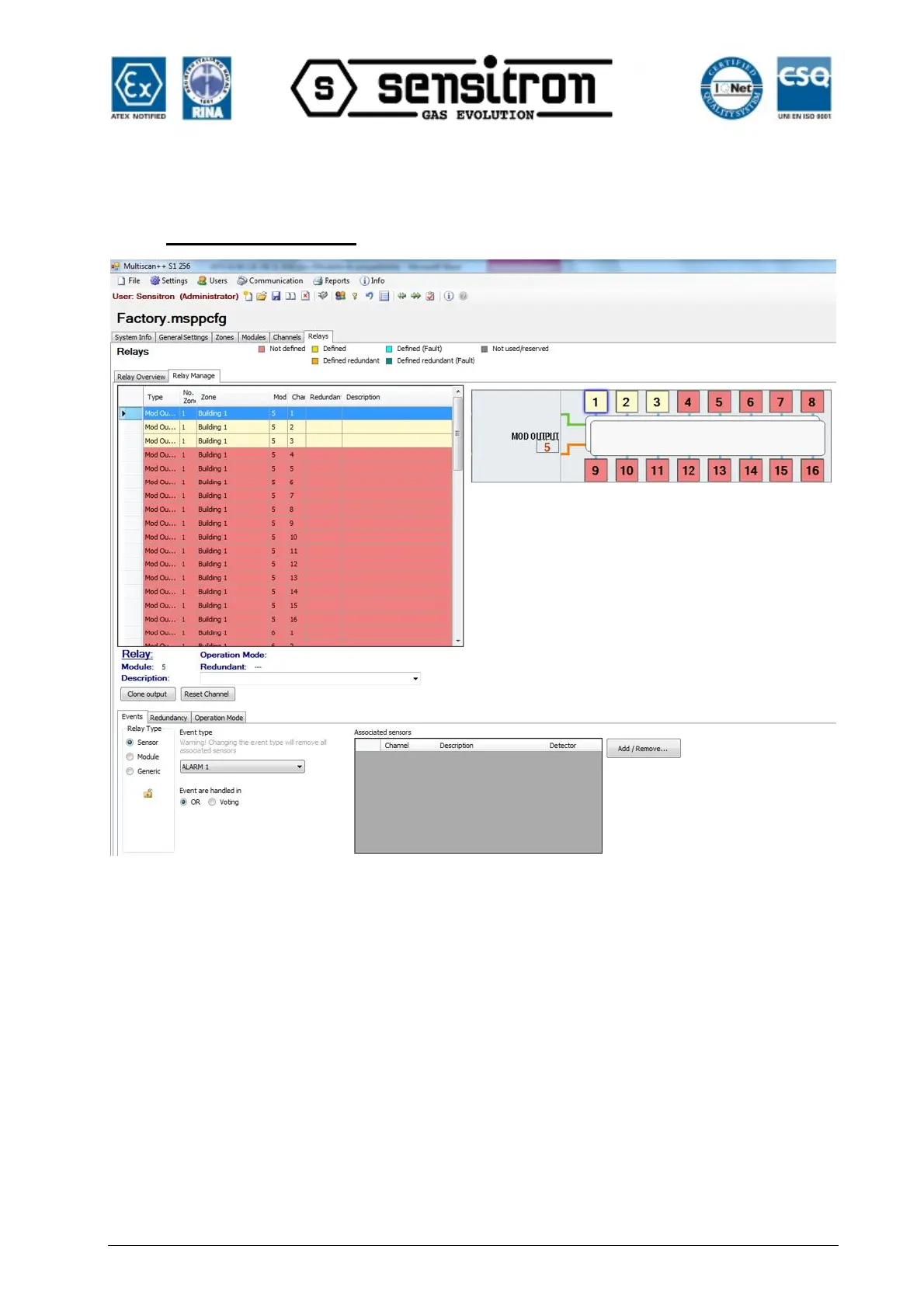

Fig. 4.5.6 c) Outputs details screen
The Relay Output Manage screen allows programming the event(s) that activate the
outputs. Available options are as follows:
Events to program the event and the output to activate
Redundancy in systems where a higher safety level is requested, 2 outputs can
be used for the same activation.
Operation Mode it sets the output operative mode (steady, pulsed and timed)
Relay Type Select if the output is to be activated by a Sensor event (alarm, fault,
under scale etc.) or a Module event (Input or Output modules) or a Generic event
(generic fault, power supply failure, Test etc.)
Event Type It depends on the setting of the Relay Type option. E.g.: in case of Sensor
event, the event type can be: Fault, Alarm 1, Alarm 2 etc.
