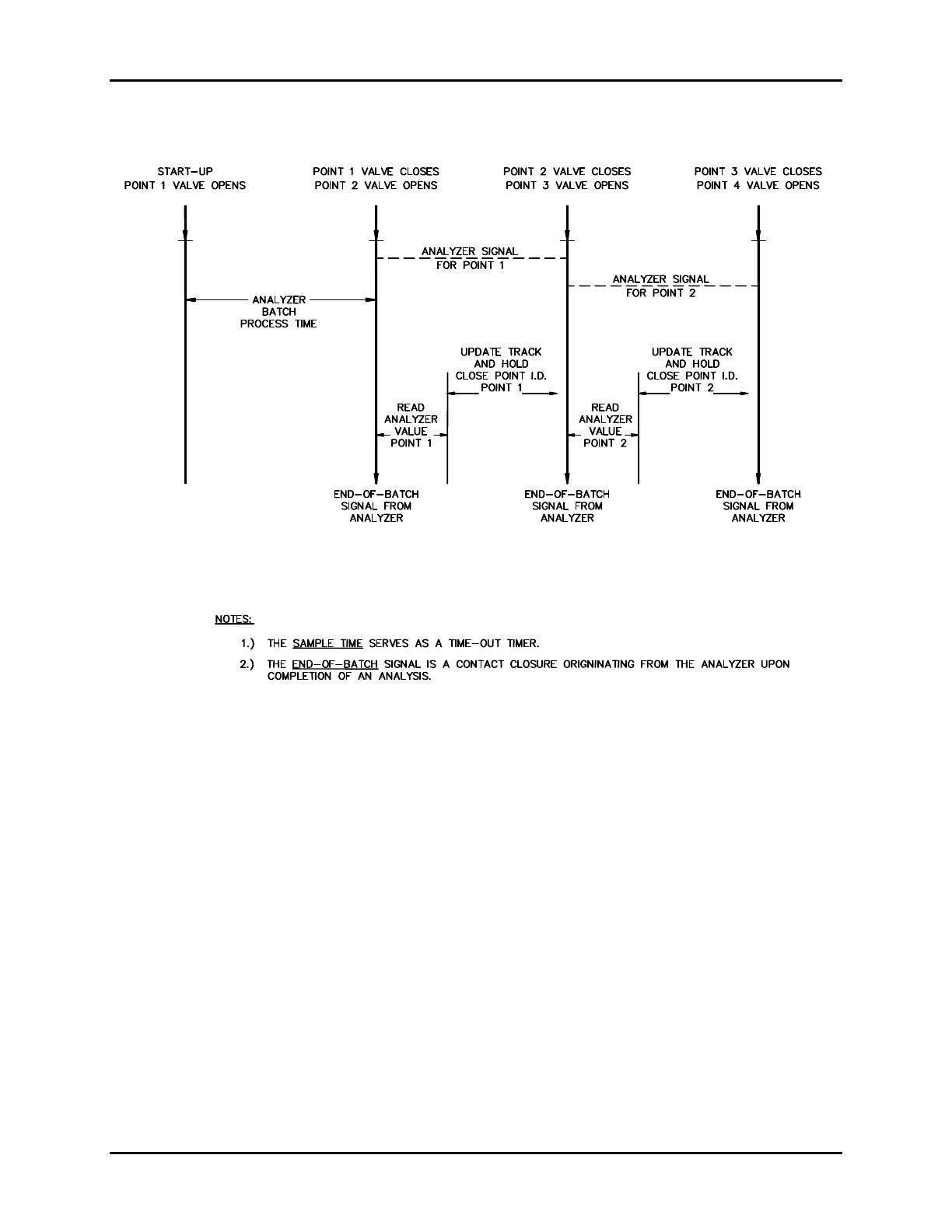

Figure 37: Batch Mode Timing Diagram
5.4 Valve Outputs
The Sample Sequencer switches sample streams to an analyzer using the valve outputs on
the board. These outputs provide 12 VDC to control solenoid valves. Sentry offers a manifold
sample valve for use with the Sample Sequencer. With additional hardware, other solenoid
valve operating voltages may be used.
