Sentry Equipment Corp | Sample Sequencer



SPD 5.5.15 47

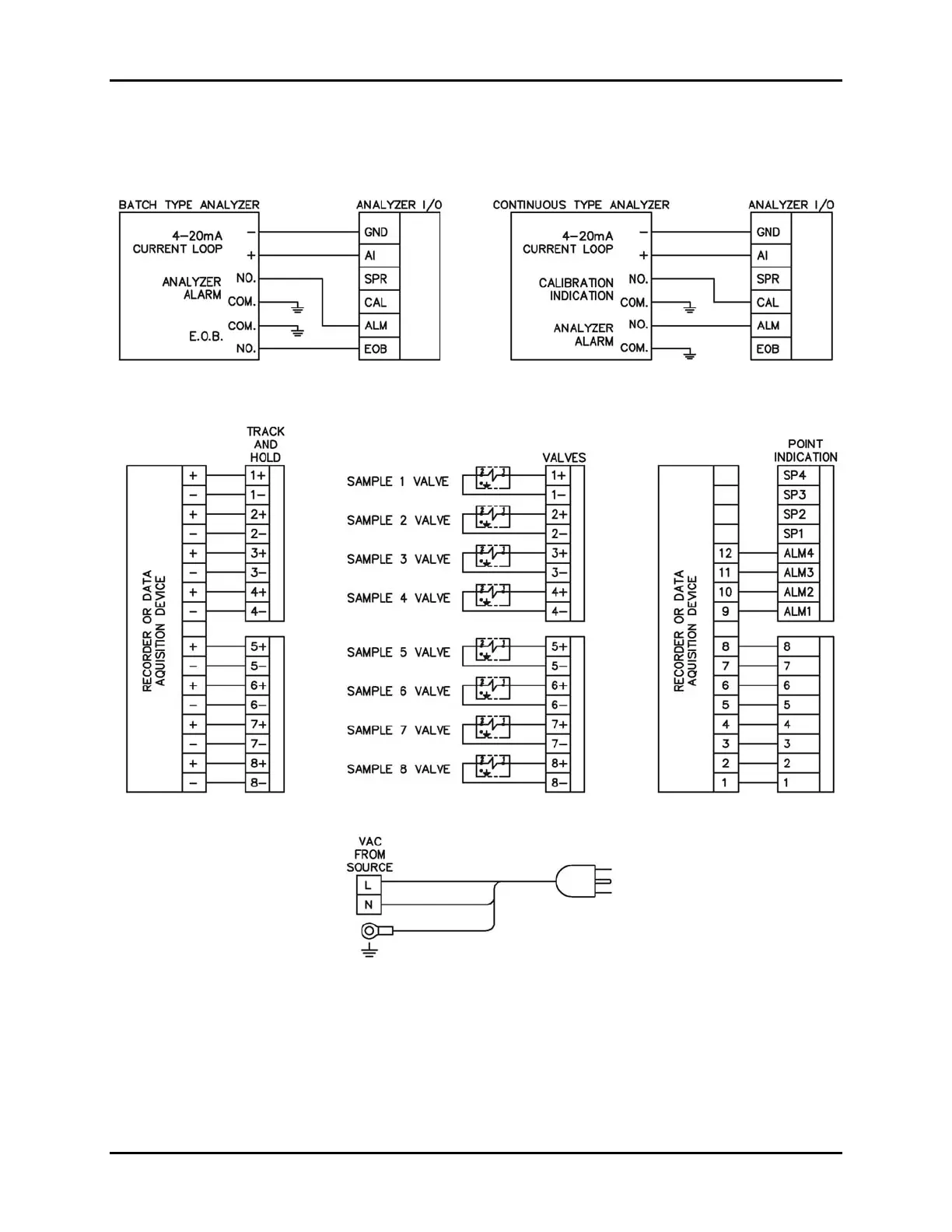

Figure 46: Electrical Wiring Diagram

6.5 Alternate Sequencer Board Connections

Aside from a power source, the Sample Sequencer 5 can alternatively be connected to the

above IO using the quick connects ports and corresponding cables to a customer supplied

terminal block. These ports are located on the bottom of the sequencer behind the sealed fitting

connections and labeled S5L and S5R (see Figure 47).
