Sentry Sample Sequencer 5 User Manual

Sentry Equipment Corp | Sample Sequencer

5
SPD 5.5.15 43

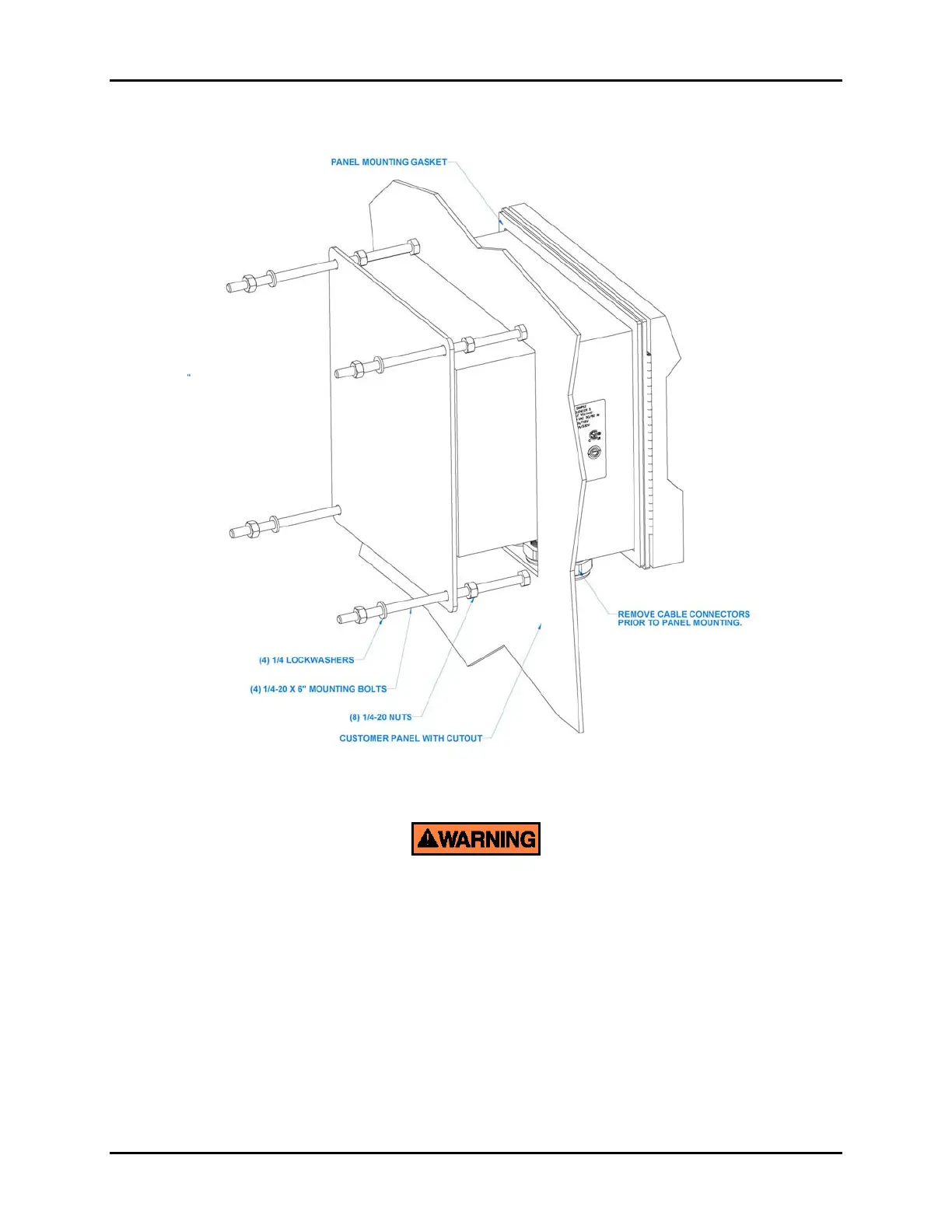

Figure 43: Panel Mounting
6.3 Electrical Connections
Electrical Shock Hazard – All input and output wiring should
be installed in such a manner that access to bare copper is
prohibited during normal operation.
AVERTISSEMENT
Avertissement de choc électrique- Tout le filage devra être
installé de manière à éviter que toute partie de fil soit dénudé
(sur le cuivre) durant l’utilisation normale
Access holes sized for ½″ NPT (15 mm) and ¾″ NPT (20 mm) electrical conduit fittings are
provided on the bottom of the enclosure. Sealing type conduit fittings are required to maintain
the enclosure’s rating.
