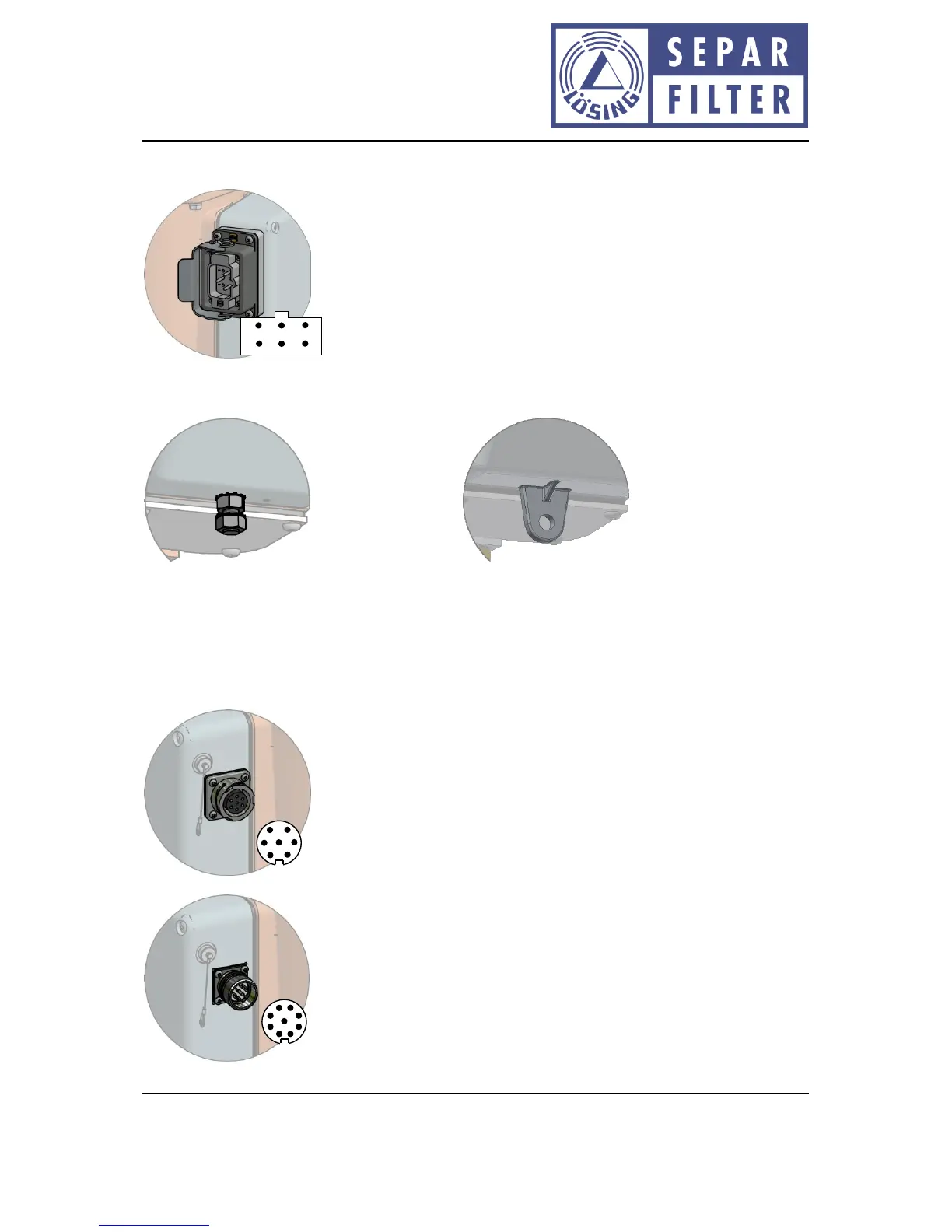

Heating voltage connection
Connector: Harting
Pin 1
Heating voltage (see operating voltage from the heater)
Pin 3
Heating voltage (see operating voltage from the heater)
Pin 5
Protective conductor
Separate protective earth terminal
Old revision (stud M8)
New revision (lug with hole 8,5 mm)
Control connector (available with Cannon or Hummel connector)
Cannon:
Hummel:
Connector
Cannon
Connector
Hummel
Pin A
Pin 1
24 VDC (for control electronics)
Pin B
Pin 2
GND
Pin C
Pin 3
24 VDC (for external main contactor)
Pin D
Pin 4
Switching output for main contactor
Pin E
Pin 5
Connection to 6 (F) when error
Pin F
Pin 6
Medium changer connection (status)
Pin G
Pin 7
Connection to 6 (F) when heating OK
Pin 8
Not used
Pin 9
Not used
3
5
4
6
1
2
A
C
D
B
F
G
E
6
8
1
7
3
2
5
4
9
