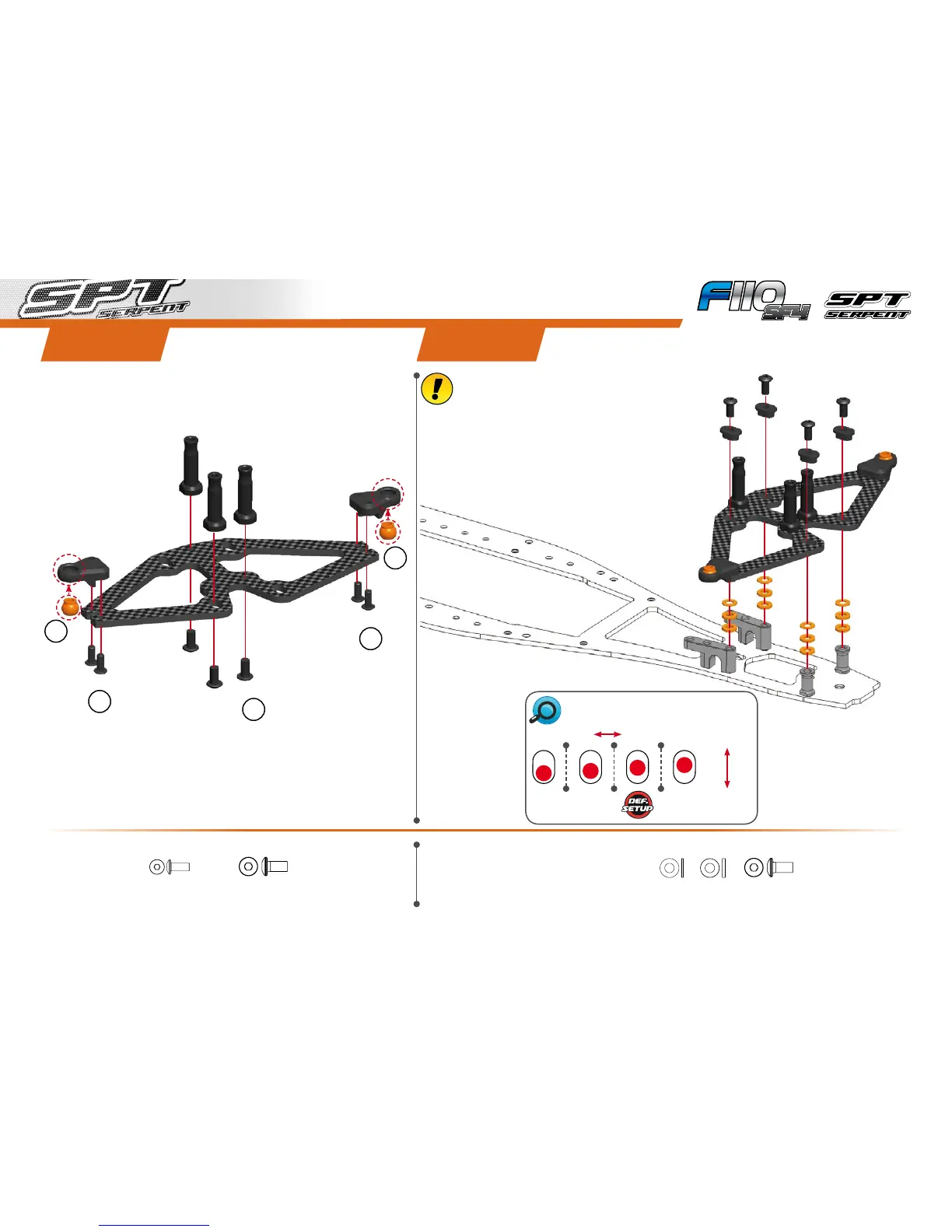

Serpent F110 SF4 - Page 5

5
STEp 3STEp 2
FRONTWHEELBASE
LONGER SHORTER
FRONT
REAR
M3x6
M3x6
M3x6
3x6x1
3x6x1
3x6x0.5
M2.5x6
M2.5x6
1
1
2
3
2
M3x6
M3x6
M2.5x6
As default adjustement of the front ride height should
be assembled 2x 3x6x1 ride height spacers.
The kit includes 4x 3x6x0.5mm ride height spacers
for fine tuning.
3x6x0.5 3x6x1
