Serpent F110 SF4 - Shock Assembly

ShOCK bag
23

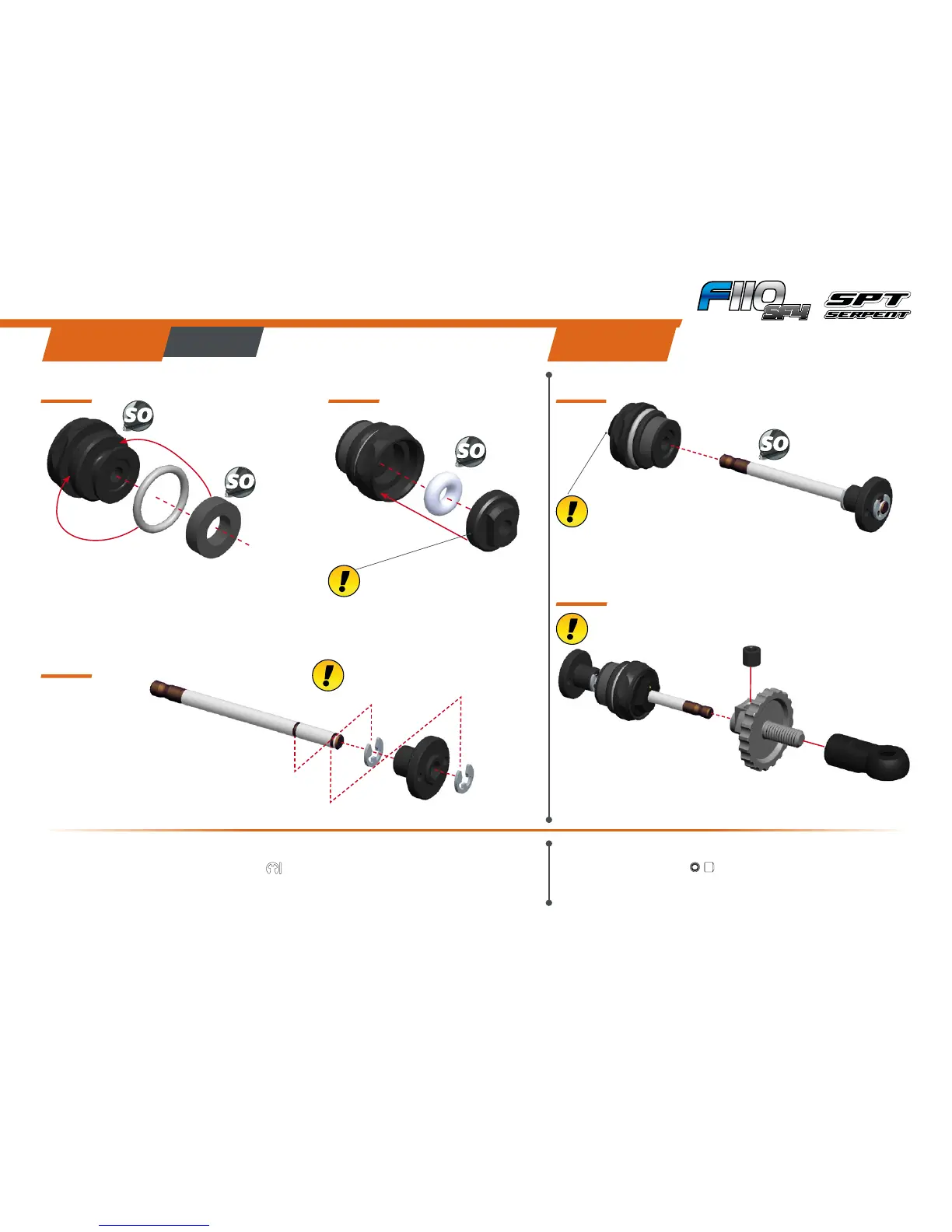

ShOCK aSSEmbly
STEp 30 STEp 31
30.1 30.2 31.1
31.2
30.3
For the correct piston holes please
check the default setupsheet.
Completely tighten the nut, once the
pistonshaft is inserted (step 31.1).
R2
R2
M3X3
Use some silicone oil
during the assembly.
M3x3
R2
Use some silicone oil
during the assembly.
Use some silicone oil
during the assembly.
Oil the foam fully before
nal assembly.
Completely tighten the nut assembled
in step 30.2.
Make sure the stescrew sits in
the not on the pistonshaft.
