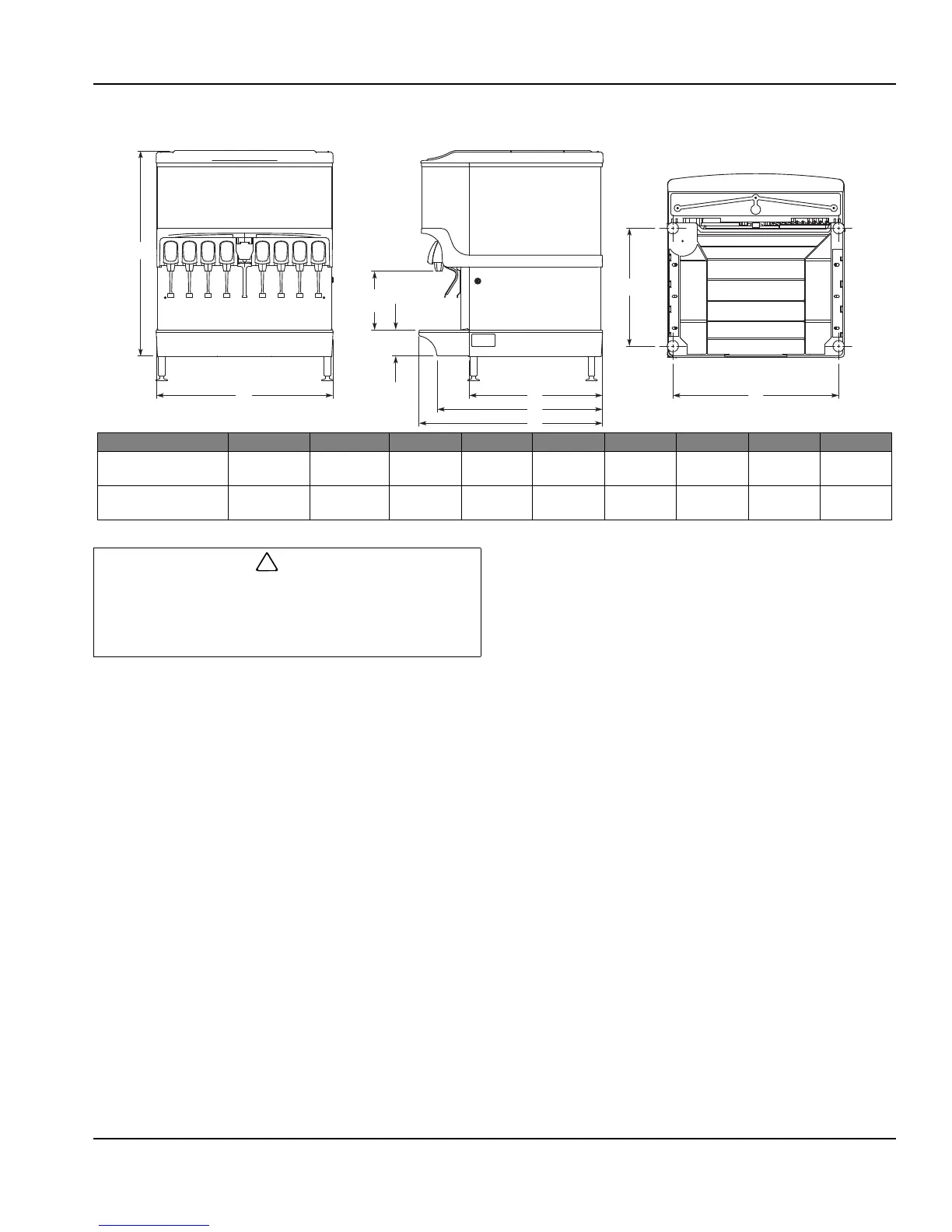

Counter Electric Dispenser Dimensions
* C = Valve height using Flomatic Valves.
MODEL A B C* D E F G H I
CEV-30 29.88"
(75.9 cm)
20.50"
(52.7 cm)
11.76"
(29.8 cm)
4.44"
(11.3 cm)
N/A N/A 25.75"
(65.4 cm)
17.00"
(43.1 cm)
17.50"
(44.4 cm)
CEV-40 29.88"
(75.9 cm)
26.00"
(66.0 cm)
11.76"
(29.8 cm)
4.44"
(11.3 cm)
N/A N/A 25.75"
(65.4 cm)
17.00"
(43.1 cm)
23.00"
(58.4 cm)
B
C
D
G
F
E
I
H
A
!
Caution
Cutting the countertop may decrease its strength.
Counter should be braced to support the dispenser
countertop weight plus ice storage capacity and
weight of icemaker, if applicable.
