Servend CEV SERIES - General System Overview

Part Number 020004000 10/13 2-1
Section 2
Installation Instructions
General System Overview
These instructions are provided to assist the qualified
installer. Contact your Manitowoc Beverage Equipment
Service Agent or call Manitowoc Beverage Equipment
for information regarding start-up services.

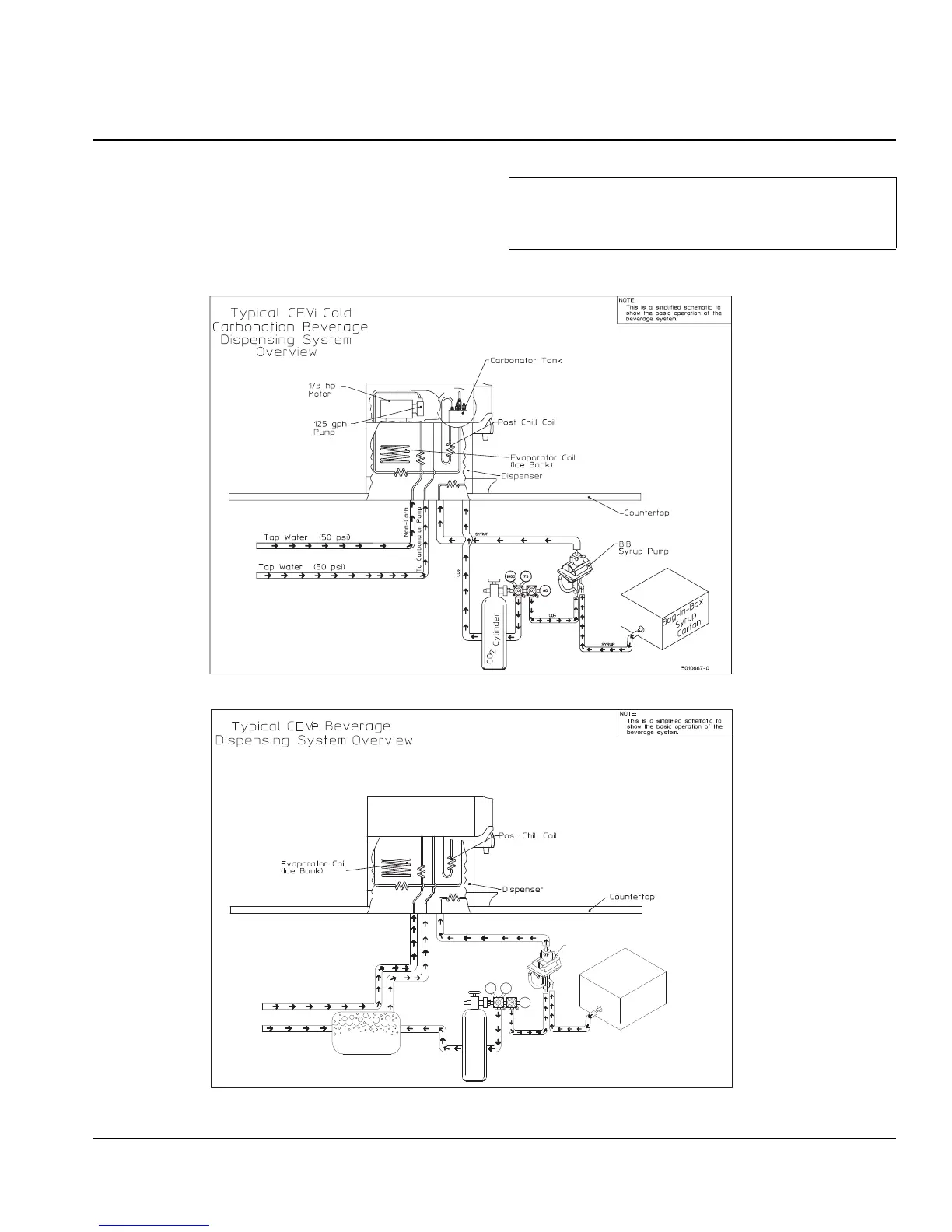

Typical CEV Series Internal Carbonation Beverage Dispensing System
Typical CEV External Carbonation (Ambient) Beverage Dispensing System
Important
Failure to follow these installation guidelines may
affect warranty coverage.
TO THE CARB TANK
90-
1800
60
100
CO
2
CO
2
CARBONATED WATER
NON-CARBONATED WATER
SYRUP
SYRUP
Carbonator
Tank
CO
2
Cylinder
Tap Water
Tap Water
Bag-In-Box
Syrup
Carton
BIB
Syrup Pump
