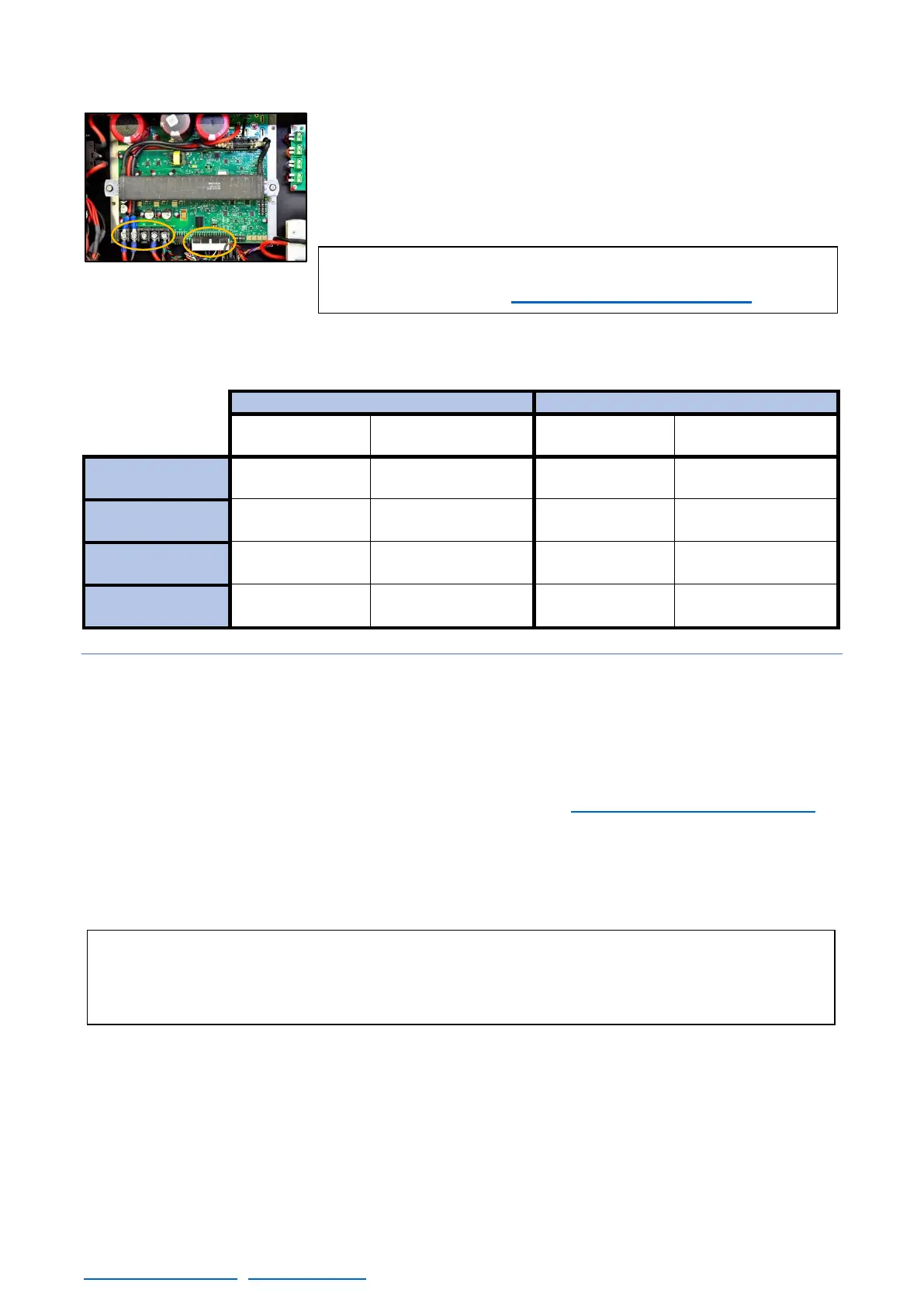

The main difference on the driver is the Shunt resistance, and the dip
switch configuration. Be sure to connect everything as the removed
driver.
The shunt connector in the V2 is located on the cover, there is only
one way to connect it into the driver.
There are different DIP switches on the PCB board, verify the configuration of those DIP switches
with the following table:
6.4.4 REPLACEMENT OF THE ELECTRONIC BOX
The Scorpio light series cranes offer the possibility to use an EB box from one crane model into
another just by making some internal changes.
Internally, the Electronic Box for the S17’ and the S23’L are the same, the only difference is the dip
switch configuration for the SERVO of the arm. It is possible to change the EB from a S23’L to a S17’
or vice versa only by changing the dip switch of the SERVO (see chapter 9.3 other documentation for
the dip switches configurations).
The EB for the S10’ has a different SERVO dip switch configuration too, and also a different CCU
dip switch and a different DRIVER board. By changing the dip switch configuration for the SERVO
and the CCU it is possible to use it on a S17’ or a S23’L and vice versa.
Since the EB for the S10’ has a different driver board, the performance of this EB in the bigger
cranes will be decreased in terms of speed and load capacity.
The use of an EB for the S17’/S23’L in a Scorpio 10’ crane for long periods of time may damage the
crane motor due to the bigger amperage applied to the motor.
