SCORPIO LIGHT SERIES 10’/17’/23’L - PARTS AND COMPONENTS DESCRIPTION - Crane accessories
Version 1.04 May 26, 2022
32
2.8 CRANE ACCESSORIES
Besides the crane there is a list of different accessories included in order to operate the crane
properly or do maintenances to it. Below is shown a list of all the accessories for the Scorpio light
cranes included or not.

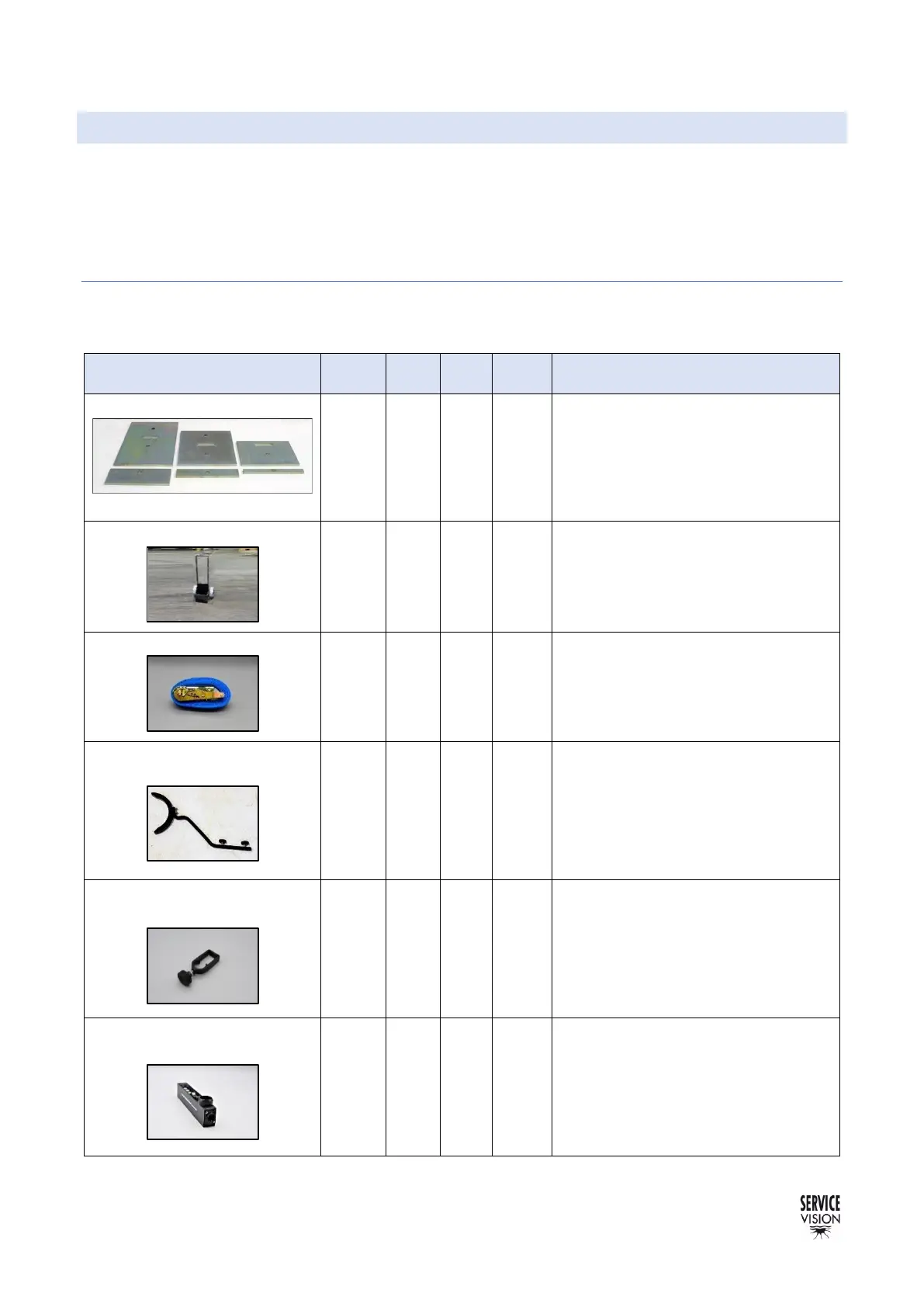

2.8.1 ARM ACCESSORIES
Component
Ref.
Qty.
23’L
Qty.
17’
Qty.
10’
Description
Set of Counterweights
7054
7056
7057
7058
7059
23
3
2
2
2
22
3
2
2
2
14
3
2
2
2
Counterweight 15 Kg.
Counterweight 8 Kg.
Counterweight 4 Kg.
Counterweight 2 Kg.
Counterweight 1 Kg.
They are used to balance the crane.
S10’/S17’/S23’L Weights
dolly
7420
2
2
1
To transport the counterweights with
the crane.
S10’/S17’/S23’L Security
strap
7421
2
2
2
The straps are used to secure the
arm into the dolly for safely transport
it. It is mandatory to have the crane
strapped if there is no one operating
it.
S10’/S17’/S23’L’ Arm cable
diverter cable
7432
1
1
1
Diverter attached on the leveling
head to separate the arm loom from
the remote head.
S10’/S17’/S23’L Hand
command bracket
7418
1
1
1
Used to hold the hand command
into the protection bar
S10’/S17’/S23’L Digital hand
command
7406
1 (1)
1 (1)
1 (1)
There is an extra hand command for
the crane
