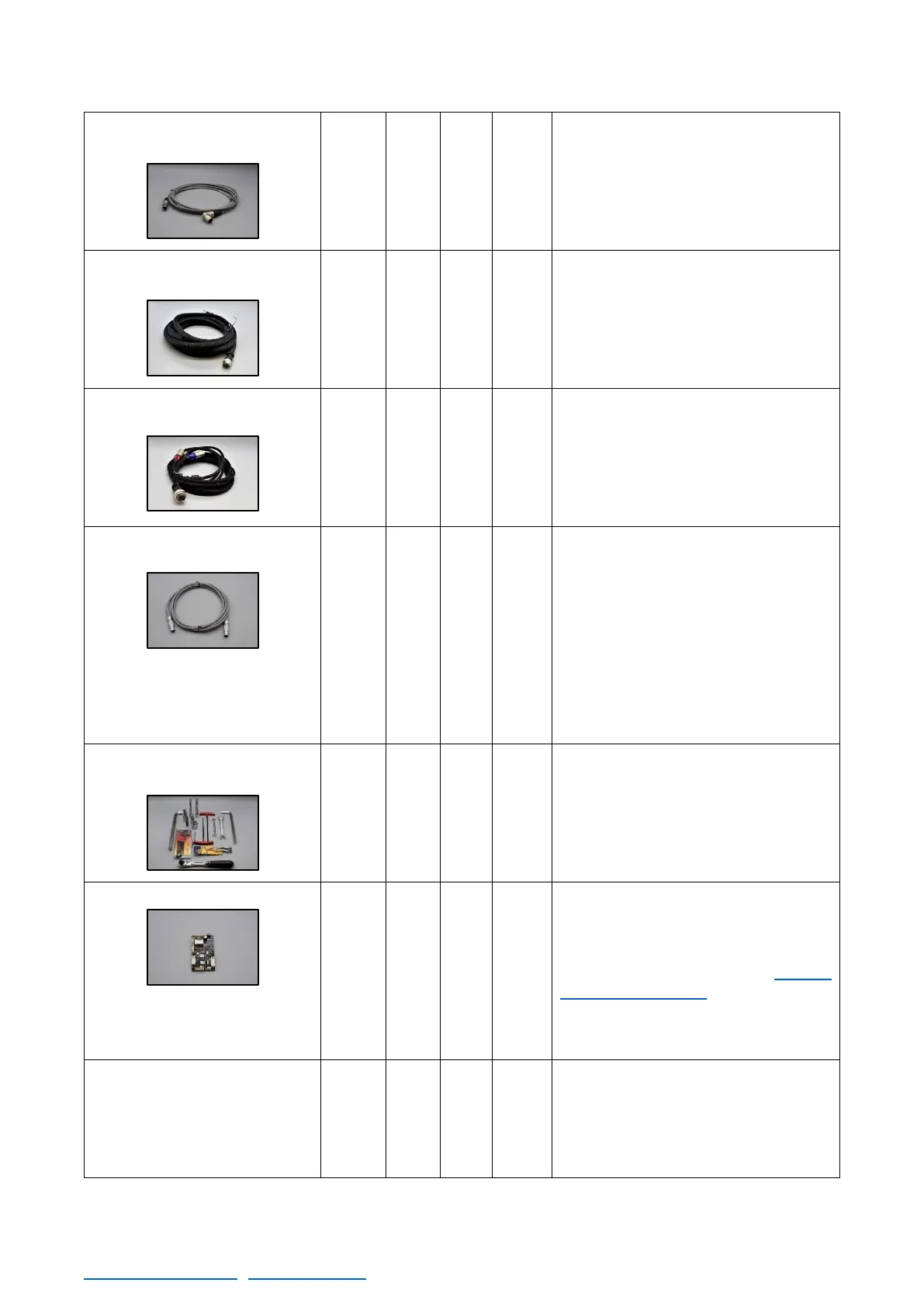

SCORPIO LIGHT SERIES 10’/17’/23’L - PARTS AND COMPONENTS DESCRIPTION - Crane accessories
Version 1.04 May 26, 2022
SERVICEVISION BIS SL
Ríos Rosas, 20 · 08940 CORNELLA DE LLOBREGAT (Barcelona) Spain · Tel. 34 93 223 86 30 · Fax 34 93 223 86 31 33
comercial@servicevision.es · www.servicevision.es
S10’/S17’/S23’L Hand
command cable
7407
7405
1 (1)
1
1 (1)
1
1 (1)
1
Short cable for hand command
(2,5m.)
Long cable for hand command (5m.)
S10’/S17’/S23’L Leveling
head cable
7409
7803
7953
1 (1)
1 (1)
1 (1)
Cable to communicate the leveling
head with the Electronic box.
S10’/S17’/S23’L DC Power
cable
7408
1
1
1
This cable provides power from the
P.U. or batteries to the crane.
S10’/S17’/S23’L Encoder
cables
7411
7410
7412
7963
7962
7964
1
1
1
1
1
1
1
1
1
S10’ Encoder cable for pan axis
(grey)
S10’ Encoder cable for tilt axis (blue)
S10’ Encoder cable for travelling
(red)
S23’L Encoder cable for pan axis
(grey)
S23’L Encoder cable for tilt axis
(blue)
S23’L Encoder cable for travelling
(red)
S10’/S17’/S23’L Arm Set of
tools (7460/7899/7999)
0067
2482
7431
7422
7438
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
18-19mm fix ring wrench
Allen key set
Mitchell mount tool
S10’ 10mm Allen key
S10’ tool for CW belt adjustment
Servo I
7658
1
1
1
There are different digital boards
inside the Electronic box. To
understand the function of each
board and identify which one could
have a problem see the chapter
2.5.3 Key concepts. Also, the LEDs
outside the Electronic box and the
LH gives information about the
status of the boards.
S10’ Arm Hardware spares
7437
7416
7807
2
2
2
2
2
S10’/S17’/S23’L Fixing nut for
counterweights support.
S10’ CW Locking screw with
aluminum knob.
S17’ CW Locking screw with
aluminum knob.
