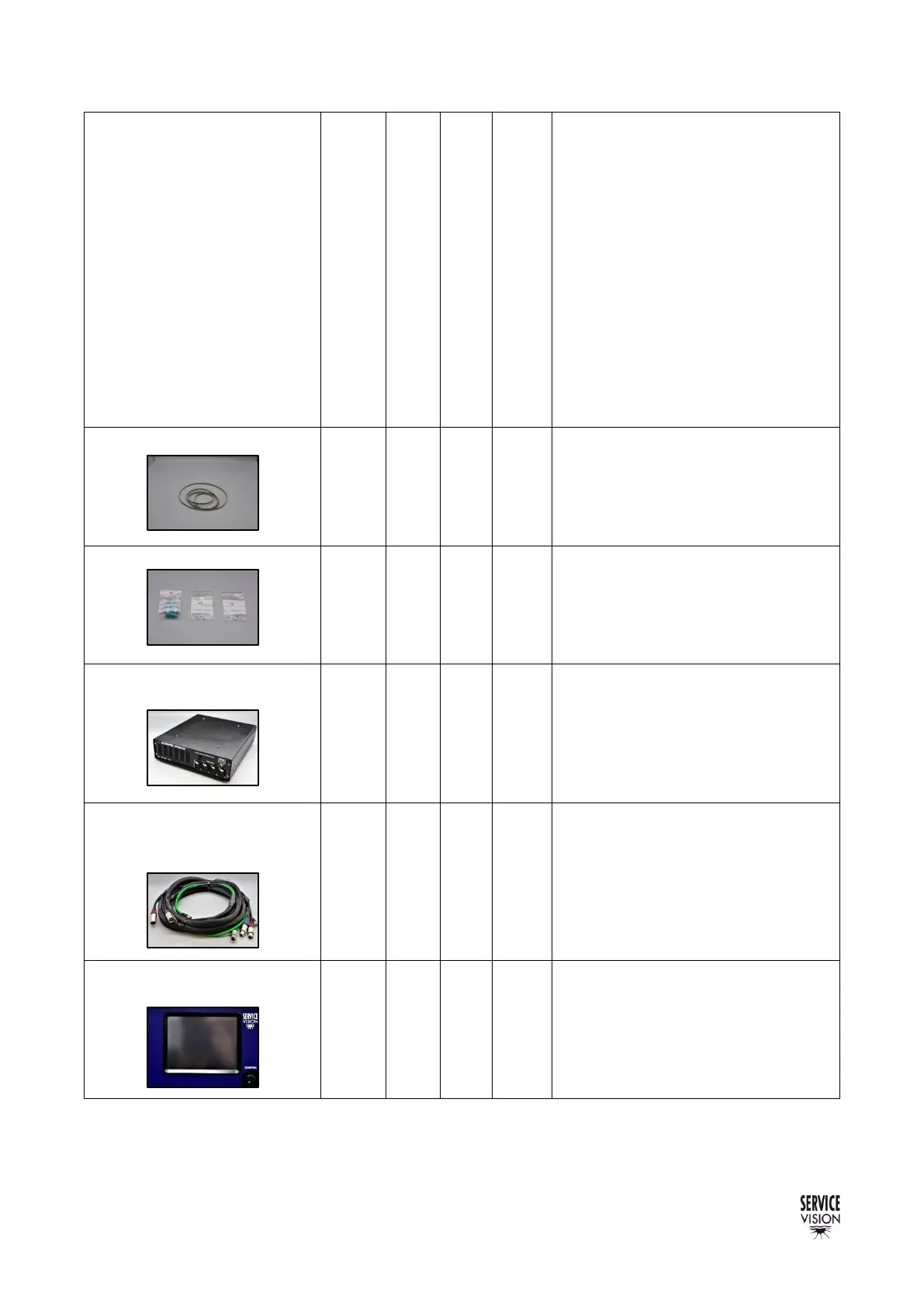

SCORPIO LIGHT SERIES 10’/17’/23’L - PARTS AND COMPONENTS DESCRIPTION - Crane accessories
Version 1.04 May 26, 2022
34
7957
7426
7429
7423
7967
7811
7424
7425
2
1
4 (2)
2 (2)
4
1 (1)
4 (4)
1
4 (2)
2 (2)
4
1 (1)
4 (4)
1
4 (2)
2 (2)
4
1 (1)
4 (4)
S23’L CW Locking screw with
aluminum knob.
S10’ CW Locking aluminum knob.
S10’ Plastic knob screw to fix E.B.
M5x16mm.
S10’ Plastic knob screw to fix arm
M8x25mm.
S23’L Screw to fix arm to fulcrum
DIN912 M8x25mm.
S10’/S17’/S23’L Screw and washer
for side protection bar
S10’ Holder pin to block arm
D10x35mm.
S10’ Leveling head fixing screw DIN
912 M6x25mm.
S10’/S17’/S23’L Set of spare
belts
7427
7428
7430
7808
7809
7810
1
1 (1)
1 (1)
1 (1)
1 (1)
1 (1)
1 (1)
1 (1)
S10’ Arm motor belt 600-5M-9
Encoder belt T2.5 540
Levelling head belt RPP5 265
Encoder belt T2.5 600
Encoder belt T2.5 540
S17’/S23’L Arm motor belt 835-5M-HT
Kit of fuses
0213
0212
7475
1
1
2
1 (1)
1 (1)
1 (1)
1 (1)
1 (1)
2A FUSE for the security circuit
board
10A FUSE for the Shunt resistor
15A FUSE for power unit 40A.
S10’/S17’/S23’L Power unit
40A (option)
7472
1
1
1
The P.U. is a 30v 40Amp power
supply. It has a 15Amp fuse in the
back part. It is powered from AC
current and has four 3pin XLR
outputs to power the remote head
and the crane.
S10’/S17’/S23’L Power-
Communication & Video line
for Scorpio Heads (optional)
7433
7802
7951
1
1
1
This loom provides any Scorpio
head power, communication and a
video line going through the crane to
the base of the dolly.
S10’/S17’/S23’L Portable
display (optional)
7403
1
1
1
The Portable display allows the user
to do more functions with the crane
and also displays useful information
for the user.
