SCORPIO LIGHT SERIES 10’/17’/23’L - TECHNICAL INFORMATION - SCORPIO 10’ Technical specifications
Version 1.04 May 26, 2022
SERVICEVISION BIS SL
Ríos Rosas, 20 · 08940 CORNELLA DE LLOBREGAT (Barcelona) Spain · Tel. 34 93 223 86 30 · Fax 34 93 223 86 31 9
comercial@servicevision.es · www.servicevision.es

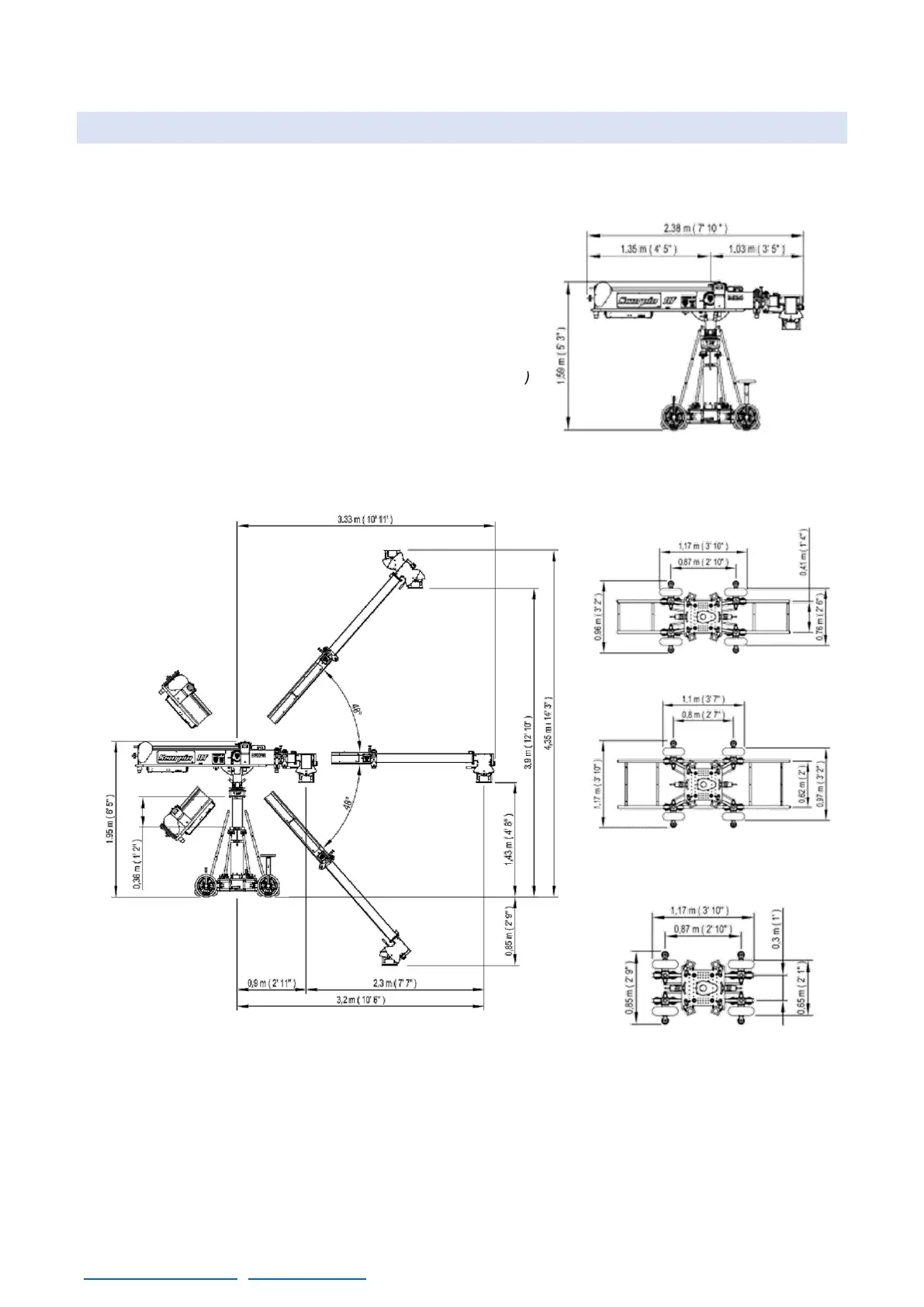

1.2 SCORPIO 10’ TECHNICAL SPECIFICATIONS
Max. length: 3,33m (10’ 11’’)
Min. length: 1,03m (3’ 5’’)
Back length of the arm: 1,35m (4’ 5’’)
Telescopic Range: 2,30m (7’ 7’’)
Max. height: 4,35m (14’3’’)
Telescopic column range: 0,36m (1’2’’)
Payload in Underslung: 60kg (132lbs)
Payload in Over slung: 40kg (88lbs)
Power requirements: DC 30 v/ 40 A (for max speed, max
payload; 20A for normal operation)
Output power for monitor: DC 12 v/ 3 A
Speed of the arm: 1,3 m/s
Weight of the crane empty: 273,4kg. (602.7 lbs.)
Max. Weight when loaded: 544,6kg. (1200.6 lbs.)
Weight of the arm (empty): 68kg. (149.9lbs.)
Weight of the dolly, column & fulcrum: 162kg. (357.2lbs.)
