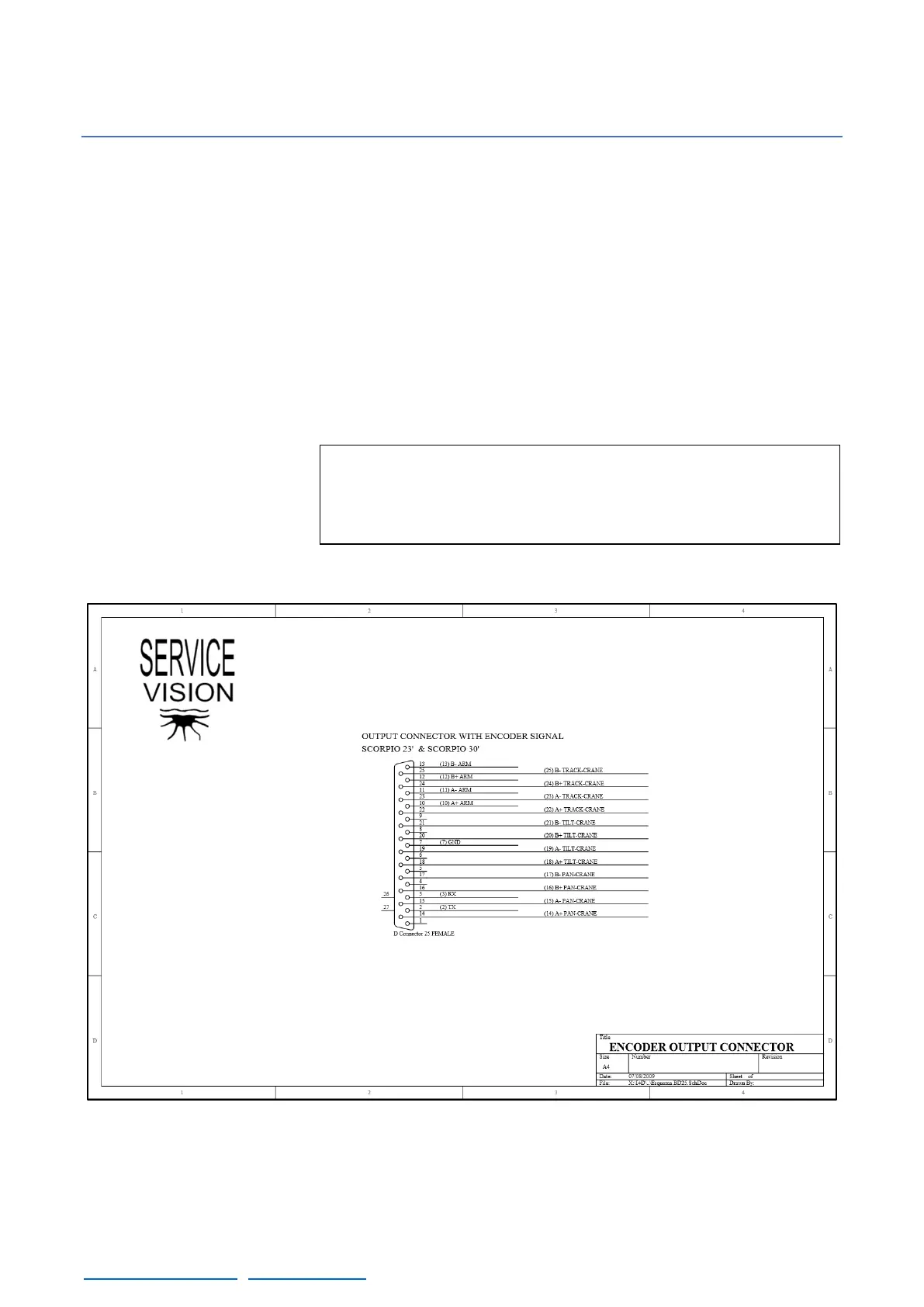

ENCODER OUTPUT RESOLUTION & PINOUT FOR S23’L’
Encoder A/B phase: 90º Z output: not available
PAN: Encoder Resolution: 19000 points Gear factors: 162:12
Encoder output resolution: (162 / 12) x 19000 = 256500.0 points/turn or 712.15 points/deg
TILT: Encoder Resolution: 19000 points Gear factors: 164:12
Encoder output resolution: (164 / 12) x 19000 = 259666.6666 points/turn or 721.2962 points/deg
ARM: Encoder resolution: 1000 points
Motor turns: 95 Length: 5450 mm
Encoder output resolution: (95 x 1000 / 5450) = 17.4311 points/mm
Note: This is the point resolution. If the reading is by flank it
needs to be multiplied by 4. If the reading is by level needs to
be multiplied by 2.
