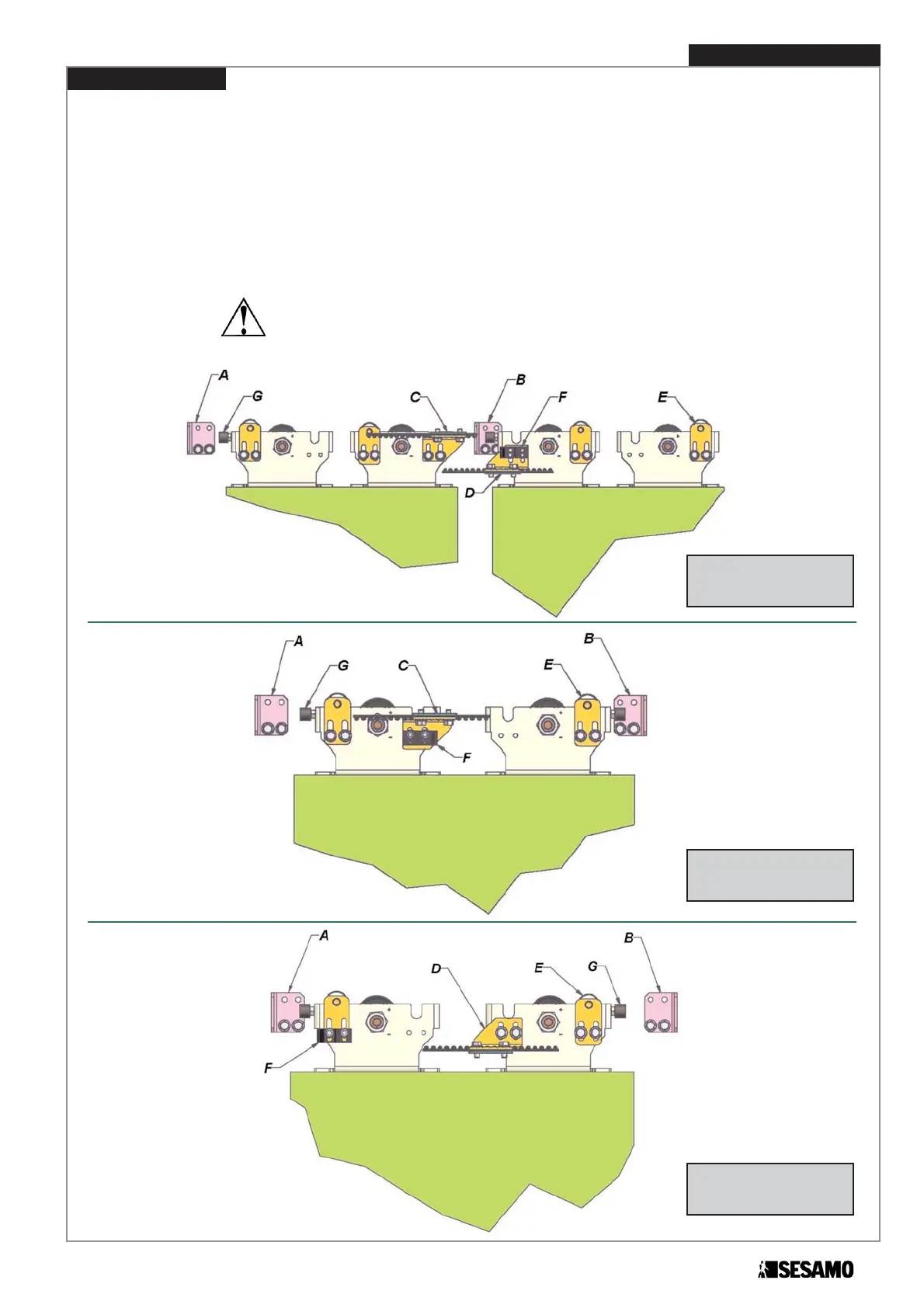

Wing limit stop adjustment
2 wing Automatism: on of the two limits is found on the left end of the girder (Fig. 23 part. A) and the other near the
centre of the right wing (Fig. 23 part.B).
1 wing Automatism: the two limits are found on the ends of the left (Fig. 23, 24 part. A) and right (Fig. 23,24 part. B)
sliding area and near the girder heads.
To adjust the limit stops loosen screws as indicated in Fig. 22, 23, 24 part. A,B then slide the limit to the required posi-
tion and then tighten the screws.
If necessary, fine adjustments of the wing stop point can be made using the carriage rubber screw stop Fig. 22, 23, 24
part. G
Installation Instruction
13
LIGHT MILLENNIUM
WARNING
Before putting the automatism into operation, always make sure that the fastening
screws of the stop brackets have been correctly tightened.
Fig. 23
Fig. 24
Fig. 25
2 Wings
1 Wings
Left Opening
1 Wings
Right Opening
