Electrical connections
WARNING
All board or peripheral connections on the terminal board
must be performed with the power disconnected to
prevent irreparable damage to the electronic equipment.
WARNING
Any repairs or replacements must be performed by
professionally qualified personnel and original spare
parts must be used in repairs.
Left Side Electronic Board
Connections

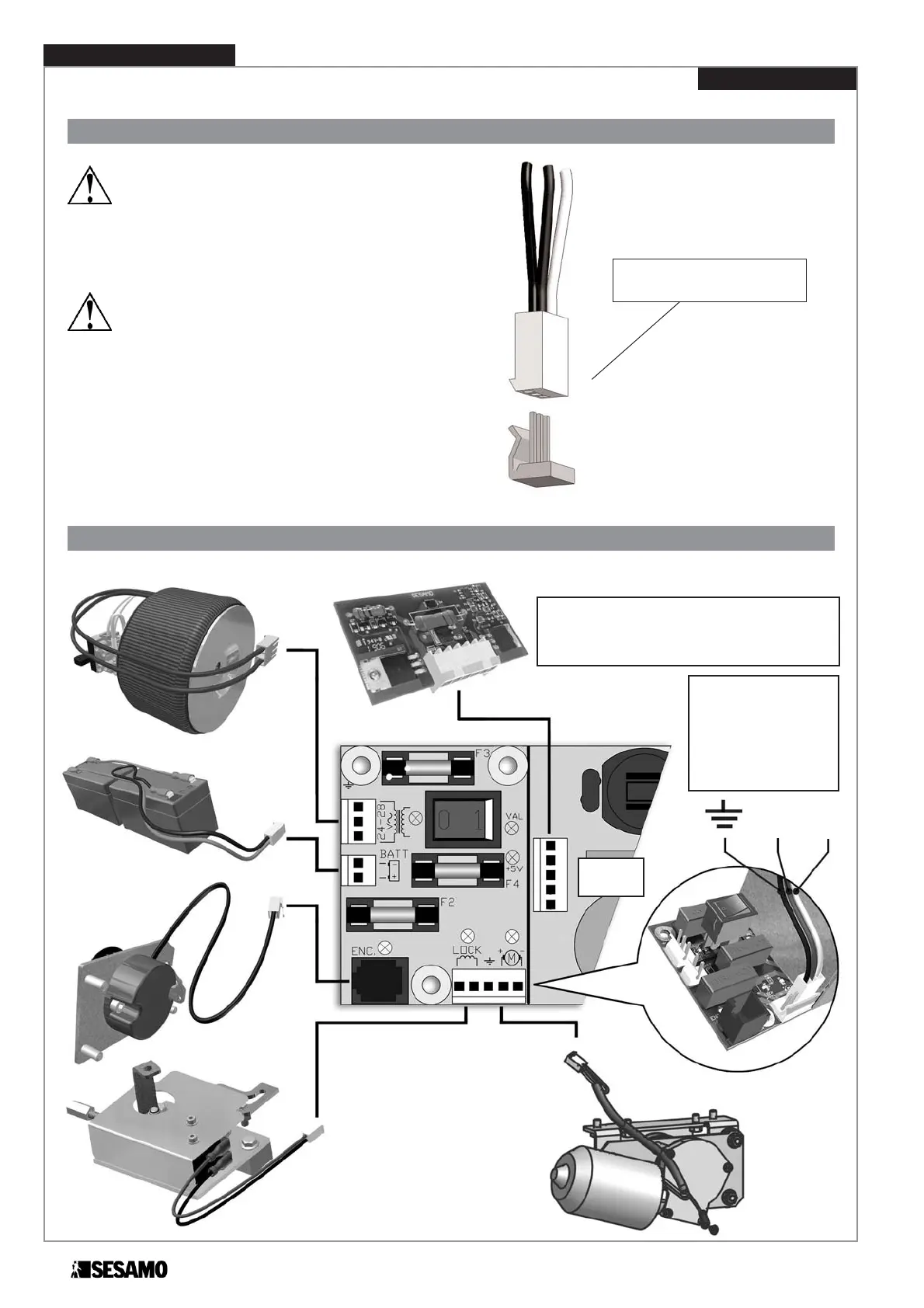

Fig. 30 summarises terminal connections on the left side of the electronic board:
16
Installation Instruction
Fig. 29
Connectors must be inserted
as in Fig. 29
LIGHT MILLENNIUM
The battery charge unit (optional) is inserted
in the terminal board (part. A) observing the
assembly direction as shown in Fig. 29
Verify the agreement
between the power
motor cable and the
serigraphy indicated in
the electronic board
Electric Transformer
Battery
Encoder
Electric Lock
Gear Motor
Fig. 30
Part. A
Blue Red
